TRICONEX 3503E | Tricon Safety System 32-Point Digital Input Module

TRICONEX 3503E | Tricon Safety System 32-Point Digital Input Module

  • Model: 3503E
  • Brand: TRICONEX (Schneider Electric / Invensys Tricon)
  • Series: Tricon v9-v11 Safety Instrumented System (SIS) Platform
  • Core Function: Triple Modular Redundant (TMR) digital input module for safety-critical discrete signal acquisition.
  • Product Type: Digital Input Module / Safety I/O Module
  • Key Specs:
    • 32 digital input points
    • 24 VAC/VDC nominal input voltage
    • TMR architecture with self-test diagnostics
    • Commoned inputs in groups of 8
    • Optically isolated field inputs
Add To Quote
Category: SKU: TRICONEX 3503E

Description

Key Technical Specifications

Parameter Value
Product Model TRICONEX 3503E
Manufacturer TRICONEX (Invensys / Schneider Electric)
Product Type TMR Digital Input Module
System Platform Tricon Safety Instrumented System
Module Type Triple Modular Redundant (TMR) Input
Input Points 32 channels
Input Voltage 24 VAC/VDC
Recommended Input Range 20–42.5 VAC/VDC
Maximum Input Voltage 42.5 VAC/VDC
Input Frequency DC or 47–63 Hz
Input Configuration Commoned in groups of 8
Isolation Opto-isolated
Input Delay <8 ms OFF to ON / <15 ms ON to OFF
Nominal Turn-On Current 6–9 mA
Input Impedance >1.25 kΩ nominal
Diagnostics Stuck-ON self-test
Status Indicators Point status + PASS/FAULT/ACTIVE module LEDs
Power Consumption <10 W logic power
Color Code Dark red



Product Introduction



TRICONEX 3503E Product Introduction

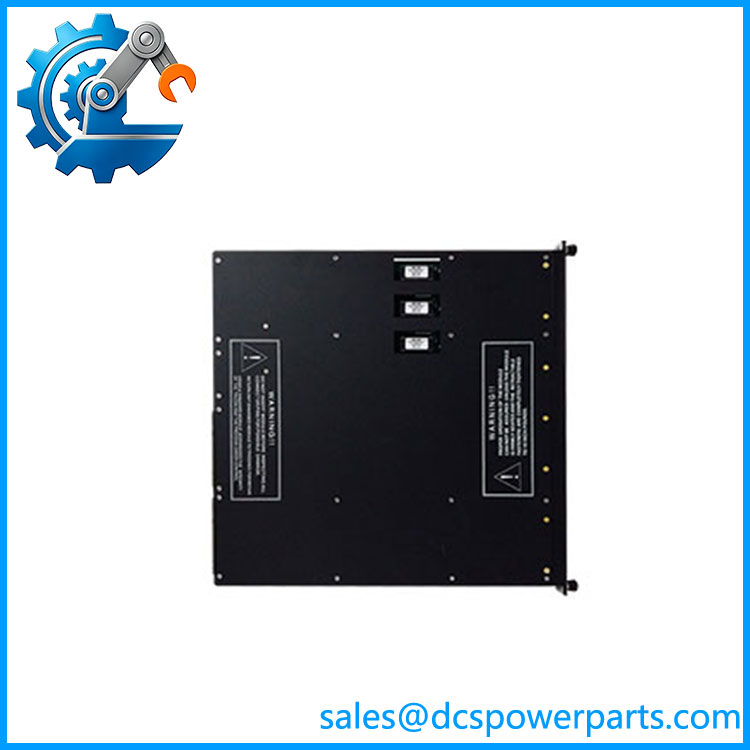

TRICONEX 3503E is a TMR digital input module designed for Tricon safety instrumented systems used in critical industrial applications. The module receives discrete field signals from switches, sensors, and protective devices, then processes the inputs through three independent channels to maintain fault-tolerant operation.

The value of TRICONEX 3503E is maintaining existing Tricon safety architectures without modifying field wiring or replacing the complete SIS platform. It is commonly used in plants where shutdown systems, emergency signals, and process protection loops depend on reliable digital input acquisition. Verify chassis compatibility, termination panel type, and system revision before installation.

3503E

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)



Engineering Pain Point

A failed safety I/O module can create an unexpected maintenance event in a refinery, chemical plant, or power station. The challenge is not only replacing the hardware. Safety systems require correct signal behavior, validated configuration, and proper diagnostics after replacement. A module that powers up correctly can still cause commissioning delays if the termination arrangement or system database does not match.



Typical Applications

  • Oil and Gas Facilities – Emergency shutdown systems receiving signals from pressure switches, valve position switches, and safety interlocks.
  • Chemical Processing Plants – Safety instrumented functions monitoring process trips, alarms, and critical equipment states.
  • Power Generation – Turbine protection and auxiliary safety systems requiring fault-tolerant discrete inputs.
  • Refinery Operations – Burner management systems, shutdown logic, and process protection circuits.



Technical Pitfalls to Avoid

  1. Confirm Termination Panel Compatibility
    The TRICONEX 3503E requires the correct external termination arrangement. Verify the field termination panel and cable assembly before replacement.
  2. Do Not Substitute Similar Input Modules Without Review
    The 3503E is designed for 24 VAC/VDC signals. Other Tricon input modules may have different voltage ranges, thresholds, or isolation characteristics.
  3. Validate Safety Configuration After Installation
    Check TriStation configuration, module status diagnostics, and input channel operation before returning the safety system to service.



Related Products

  • TRICONEX 3501E
    A TMR digital input module designed for higher voltage applications (115 VAC/VDC). Used where field signals require a higher input range than the 3503E.
  • TRICONEX 3502E
    A TMR digital input module for 48 VAC/VDC applications. Functionally similar to the 3503E but designed for different field voltage levels.
  • TRICONEX 3505E
    A 24 VDC low-threshold TMR digital input module. Used where lower signal thresholds or different field interfaces are required.
  • TRICONEX 9563-910
    Compatible termination panel option used with 3503E and related digital input modules for field wiring connection.
  • TRICONEX 3604E
    Related Tricon digital input/output family module used in safety control applications with different signal requirements.
  • TRICONEX 3625C1
    Digital output module used for safety-related discrete control outputs rather than input acquisition.
  • TRICONEX 8312
    Tricon chassis power supply module supporting the controller rack infrastructure.
  • TRICONEX 3008
    Main processor module used in Tricon systems for executing safety logic and managing I/O communication.
