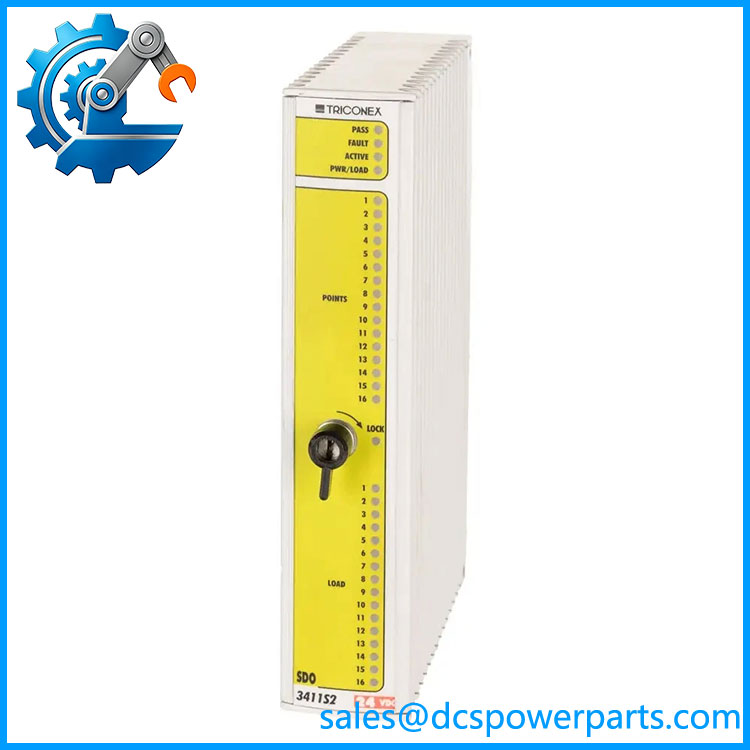

Triconex 3411S2 Supervised Digital Output Module
Product Overview
The Triconex 3411S2 is a 16-point Supervised Digital Output (SDO) module for Tri-GP safety and fire-and-gas control applications. Unlike the standard 3401S2 digital output module, the 3411S2 adds field-loop supervision so the control system can identify conditions such as loss of field power and output-point faults. Schneider/Triconex documentation identifies the 3411S2 specifically as a supervised digital output module and states that its 16 points can be independently configured.
Electrically, the Triconex 3411S2 uses a nominal 24 VDC output with a specified operating range of 19–30 VDC. Its absolute maximum output voltage is 45 VDC, and the minimum required field load is 30 mA. Output switching current is specified below 4.8 A and is self-limiting, with 3.0 A listed as typical; continuous carry is specified at 700 mA maximum under the documented conditions. These figures matter when checking a replacement against the actual field device rather than simply matching the catalog number.
At the architecture level, the module belongs to the Tri-GP TMR I/O family. The technical guide describes three isolated sets of electronics associated with the TMR channels and voting circuitry used for output control and diagnostics. The 3411S2 is intended for the 2401HS2 high-current digital-output baseplate, while approved external-termination arrangements are also documented. It is therefore not a generic 24 VDC PLC output card that can be substituted based only on voltage and point count.
For an existing Tri-GP installation, the Triconex 3411S2 is most relevant where the application requires supervised discrete outputs for field devices such as fire-and-gas actuators, shutdown devices, or other monitored final elements. The engineering check should include the baseplate, field termination arrangement, load current, supervision requirements, controller generation, and configuration database before installation.
Product Introduction
Field-loop diagnostics are the key distinction here. The 3411S2 was designed for applications where knowing that an output command was issued is not enough; the control system also needs supervision of the field circuit. Triconex documentation identifies it as an SDO module for fire-and-gas applications with 16 independently configurable points.
For a legacy Tri-GP installation, this makes the 3411S2 a targeted legacy replacement rather than a generic digital-output substitute. The module is associated with the 2401HS2 high-current baseplate, so procurement should verify the complete I/O assembly instead of matching only the module faceplate.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 3411S2 |
| Manufacturer / Brand | Triconex |
| Product Series | Tri-GP General Purpose |
| Product Type | Supervised Digital Output Module |
| Output Points | 16, commoned |
| Nominal Output Voltage | 24 VDC |
| Specified Operating Voltage | 19–30 VDC |
| Absolute Maximum Output Voltage | 45 VDC |
| Absolute Maximum Reverse Input Voltage | -0.6 VDC |
| Minimum Required Field Load | 30 mA |
| Switching Current | <4.8 A, self-limiting |
| Typical Switching Current | 3.0 A |
| Carry Current | 700 mA maximum, self-limiting |
| Off-State Leakage | <1 mA |
| Field Alarms | Loss of field power; output point shorted ON or OFF |
| Loop-Back Thresholds | 0–5 VDC Off; 6–14 VDC transition; 15–30 VDC On |
| Diagnostic Glitch Duration | <2 ms maximum; 500 µs typical |
| Functional Earth to Protective Earth Isolation | 500 VDC minimum |
| Functional Earth to Functional Earth Isolation | 800 VDC minimum |
| Recommended High-Current Baseplate | 2401HS2 |
The published Tri-GP technical material identifies the 3411S2 as a 16-point commoned 24 VDC supervised output module. It also documents the field alarms, loop-back thresholds, leakage, current limits, and isolation values above.
Major Features / Practical Advantages
Supervised output architecture
The main engineering value of the 3411S2 is loop supervision. The module is intended to detect conditions that would otherwise be invisible to a conventional discrete output, including loss of field power and output-point short conditions. This is particularly important in fire-and-gas applications where an open or abnormal field circuit can be a maintenance or safety concern.
3411S2
16 independently configurable points
The module provides 16 commoned output points. Each point can be independently configured for supervised-output operation, allowing one module to serve multiple discrete final-element circuits while retaining point-level configuration.
24 VDC field interface
The nominal 24 VDC output architecture fits the conventional discrete field-device supply range used by many industrial shutdown and fire-and-gas devices. The documented 19–30 VDC operating range should still be checked against the actual load, especially where long field cables, intrinsically safe interfaces, relays, solenoids, or external barriers are involved.
TMR output architecture
The Tri-GP technical guide describes TMR digital-output modules as having three isolated electronic channels that independently receive data from the associated processors. Output voting circuitry is used to determine the signal applied to the field load. That architecture is fundamentally different from a conventional single-channel PLC output card.
Diagnostic coverage
The published specifications include loop-back thresholds, output leakage limits, diagnostic glitch duration, and field-fault indications. These characteristics allow the engineering team to evaluate not only whether an output can energize a load, but also how the system detects abnormal output conditions.
Correct baseplate matters
The 3411S2 is associated with the 2401HS2 Digital Output Baseplate Kit, High Current. The Tri-GP planning documentation also identifies external-termination arrangements for this module. A module-only quotation is therefore not enough information for a field replacement unless the existing baseplate and termination architecture are already known.
Useful distinction from 3401S2
The 3401S2 and 3411S2 share the 16-point, 24 VDC basic output architecture, but the 3411S2 is the supervised version and has a specified minimum field load of 30 mA. The two should not be treated as interchangeable simply because the point count and nominal voltage match.
Related Products
- 3401S2 — Standard 16-point, 24 VDC Tri-GP digital output module. It does not provide the same supervised-output function as the 3411S2.
- 2401HS2 — High-current digital output baseplate intended for the 3411S2 supervised output module.
- 2401S2 — Standard digital output baseplate associated with the 3401S2. This is a different baseplate/application pairing.
- 2401LS2 — Low-current digital output baseplate used with the 3401S2 for applications requiring integral current limiting.
- 5411HS2 — Supervised, high-current Digital Output TriPak consisting of one 3411S2 module and one 2401HS2 baseplate.
- 3301S2 — 32-point 24 VDC TMR digital input module; useful for input-side discrete monitoring rather than output control.
- 3311S2 — 32-point high-resolution 24 VDC TMR digital input module for higher-resolution input applications.
- 3451S2 — 32-point solid-state relay output module, providing a different output architecture and load interface from the supervised 3411S2.
FAQ
Can I replace a 3411S2 directly with a 3401S2?
Not as a like-for-like functional replacement. Both are 16-point, commoned, 24 VDC Tri-GP output modules, but the 3411S2 provides supervised digital output functionality and has a 30 mA minimum required field load. A 3401S2 should only be considered after the application has been reviewed and the supervision requirement has been addressed.
What baseplate does the 3411S2 use?
The documented high-current pairing is the 2401HS2 Digital Output Baseplate Kit, High Current. External termination arrangements are also documented for the 3411S2. Verify the installed baseplate and termination hardware before ordering a replacement module.
Can I hot-swap this module?
The Tri-GP documentation identifies support for a hot-spare module and describes mechanical keying of I/O modules. That should not be interpreted as permission to remove a live module under every installation condition. For a safety-related system, follow the site’s approved maintenance procedure and the applicable Triconex system documentation before removing or inserting the module.
What does the 30 mA minimum field load mean?
The 3411S2 requires a minimum field load of 30 mA for its supervised-output function. This is an important difference from the standard 3401S2, which has no equivalent minimum field-load requirement in the published table. Loads such as small relays or low-current electronic interfaces therefore deserve specific engineering review before substitution.
Does the 3411S2 support firmware v3.1?
The model number alone does not establish a specific firmware revision. Triconex configuration documentation treats firmware versions as diagnostic/configuration information rather than as a simple model-number attribute. Confirm the installed firmware and controller-generation requirements against the project’s approved Tri-GP configuration before assuming compatibility.
Is the 3411S2 a 32-channel module?
No. The documented 3411S2 has 16 output points. Some third-party listings incorrectly describe this model as a 32-channel or analog-output device. Those descriptions conflict with the Tri-GP technical documentation and should not be used for procurement decisions.
Does the module provide SIL 3 by itself?
Do not treat the module as an independently certified SIL 3 safety function. The relevant safety performance depends on the complete Triconex architecture, configuration, application logic, field devices, diagnostics, and safety lifecycle. The 3411S2 is an I/O component within the Tri-GP safety architecture, not a standalone safety loop.
Can I use any 24 VDC load with the 3411S2?
No. Voltage compatibility is only the first check. The load must satisfy the module’s current, supervision, switching, and field-interface requirements. The published specification identifies <4.8 A self-limiting switching current, 700 mA maximum carry current under stated conditions, and a 30 mA minimum field load.
Procurement Note
For a Triconex 3411S2 replacement, match more than the printed model number. Confirm the Tri-GP system generation, installed baseplate, termination method, field-device load, supervision requirements, module condition, and configuration compatibility. The documentation specifically identifies the 3411S2 with the 2401HS2 high-current baseplate, so purchasing a loose module without checking the existing I/O assembly can create an avoidable commissioning problem.
For legacy inventory, also distinguish new surplus, refurbished, and previously installed hardware. Request photographs of the actual nameplate and connector condition, verify the complete part/model marking, and check that the module’s mechanical keying and hardware configuration correspond to the existing Tri-GP installation. For safety-system spares, traceability and functional verification are more important than simply finding a unit with the correct label.
