TRICONEX DI3361 Digital Input Module Product Description
Product Overview
TRICONEX DI3361 is a high-reliability digital input module developed by TRICONEX (a Schneider Electric brand) for Tricon safety instrumented systems (SIS) and high-availability industrial control applications. Designed based on the advanced Triple Modular Redundancy (TMR) architecture, TRICONEX DI3361 is responsible for acquiring discrete field signals from industrial devices, including emergency shutdown switches, limit switches, pressure switches, valve position feedback signals, and equipment status contacts. The module processes these input signals through three independent channels and provides reliable status information to the Tricon controller, ensuring safe operation, fault tolerance, and continuous process protection.
As a critical I/O component in the Tricon safety platform, TRICONEX DI3361 serves as the interface between field devices and the safety control system. It integrates advanced self-diagnostic functions to continuously monitor channel conditions, input signal integrity, and module health status. Through redundant hardware design and fault detection mechanisms, TRICONEX DI3361 can maintain system availability even when a single input channel experiences a failure, making it ideal for applications requiring high safety integrity levels and uninterrupted operation.
The TRICONEX DI3361 module is widely used in industries such as oil and gas, petrochemical processing, power generation, offshore platforms, and other critical infrastructure environments. Its proven reliability, strong environmental adaptability, and compatibility with Tricon safety controllers make it an essential component for safety shutdown systems, process protection systems, and industrial automation modernization projects. By combining robust signal acquisition capability with advanced diagnostics, TRICONEX DI3361 helps enterprises improve operational safety, reduce unplanned downtime, and extend the service life of existing Tricon-based control installations.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | DI3361 |
| Manufacturer | TRICONEX (Schneider Electric) |
| Product Type | Triple Modular Redundant Digital Input Module |
| System Platform | Tricon Safety Instrumented System (SIS) |
| Architecture | Triple Modular Redundancy (TMR) |
| Input Channels | 32 digital input channels |
| Rated Input Voltage | 24 VDC |
| Input Voltage Range | Approximately 18–32 VDC |
| Input Signal Type | Discrete ON/OFF signals, dry contact or powered field inputs |
| Input Logic Level | ON: typically 15–30 VDC; OFF: typically 0–5 VDC |
| Isolation Type | Field-to-logic isolation |
| Diagnostic Functions | Online diagnostics, channel monitoring, fault detection |
| Safety Integrity Level | Suitable for IEC 61508 SIL 3 applications |
| Installation Method | Tricon standard chassis mounting |
| Communication Interface | Tricon backplane bus |
| Operating Temperature | -40°C to +70°C (system dependent) |
| Humidity Range | 5%–95% RH, non-condensing |
Main Features and Advantages
High Reliability TMR Architecture:
The primary advantage of TRICONEX DI3361 is its Triple Modular Redundancy design, which uses three independent input channels to acquire and process field signals. Each channel operates independently, and internal voting logic determines the correct system state. This architecture allows the safety system to continue functioning even if one channel experiences a hardware fault, significantly reducing the possibility of false trips or unsafe conditions.
Advanced Diagnostic Capability:
TRICONEX DI3361 incorporates comprehensive online monitoring technology that continuously evaluates module performance, input channel status, and signal consistency. The built-in diagnostic functions can detect abnormal conditions such as channel discrepancies, wiring faults, and internal module failures. These features provide maintenance personnel with valuable system health information and enable faster troubleshooting.

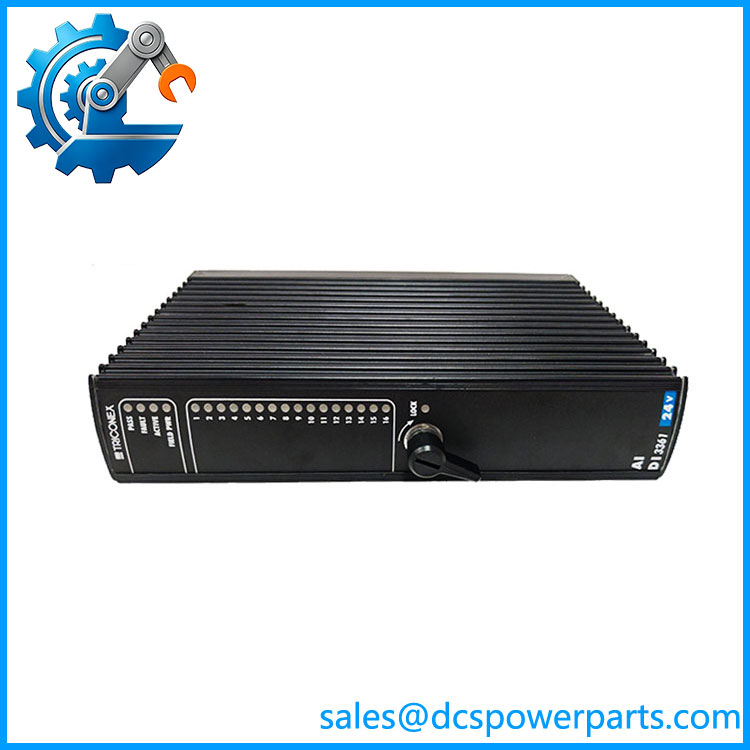

DI3361
Industrial-Grade Environmental Performance:
Designed for demanding industrial environments, TRICONEX DI3361 provides excellent resistance against electrical noise, temperature variations, and continuous operating conditions. Its rugged design ensures stable performance in harsh applications such as refineries, chemical plants, offshore facilities, and power generation sites.
Flexible System Integration:
TRICONEX DI3361 can be seamlessly integrated into Tricon safety control systems together with processor modules, communication modules, power modules, and other I/O components. Its modular design allows easy installation, replacement, and system expansion, helping users maintain long-term reliability of their safety infrastructure.
Enhanced Safety and Operational Value:
Unlike conventional PLC digital input modules, TRICONEX DI3361 is specifically engineered for safety-critical applications. Through redundant hardware design, continuous diagnostics, and fault-tolerant operation, it provides a dependable signal acquisition solution for emergency shutdown systems and industrial protection applications.
Application Areas
Oil and Gas Industry:
TRICONEX DI3361 is widely applied in oil production facilities, refineries, natural gas processing plants, and pipeline systems. It collects critical digital signals such as emergency shutdown commands, pressure switch states, valve feedback signals, and equipment alarms, providing reliable input data for ESD and safety protection systems.
Petrochemical and Chemical Processing:
In high-risk chemical production environments, TRICONEX DI3361 is used to monitor equipment operating states, process interlock conditions, pump status signals, and safety-related field devices. Its reliable digital input acquisition capability helps safety systems respond quickly to abnormal operating conditions.
Power Generation Applications:
In thermal power plants, hydroelectric facilities, nuclear auxiliary systems, and energy infrastructure, TRICONEX DI3361 supports monitoring of critical equipment states, breaker feedback signals, protection relay contacts, and alarm conditions. It contributes to stable and secure operation of power control systems.
Safety Instrumented Systems (SIS):
As an important component of Tricon SIS platforms, TRICONEX DI3361 provides high-integrity digital signal acquisition for emergency shutdown, fire and gas systems, turbine protection, and process safety applications. Its TMR technology helps achieve high availability and improved safety performance.
Industrial Control System Upgrades:
Many plants continue operating Tricon-based safety systems due to their long lifecycle and reliability. TRICONEX DI3361 is frequently used as a replacement or expansion module for existing installations, allowing customers to maintain system availability while minimizing modernization costs.
