TRICONEX AO3482 Product Description
Product Overview
TRICONEX AO3482 is a high-integrity analog output module designed for the Triconex Trident and safety-critical control system platforms. Developed by TRICONEX (a Schneider Electric company), TRICONEX AO3482 is specifically engineered for Safety Instrumented Systems (SIS), Emergency Shutdown Systems (ESD), and critical process control applications where high availability, fault tolerance, and precise analog control signals are required. It provides reliable conversion of digital control commands from the Triconex controller into industrial analog output signals for field devices such as control valves, actuators, and regulating equipment.
The TRICONEX AO3482 is a High-Current Analog Output Module featuring Triple Modular Redundancy (TMR) architecture. Unlike conventional analog output modules, TRICONEX AO3482 uses three independent internal processing paths with fault detection and voting mechanisms to maintain output integrity even when a single channel or electronic component experiences a failure. This design ensures continuous operation in demanding industries such as oil & gas, petrochemical, power generation, and chemical processing.
As a critical I/O component in the Triconex safety platform, TRICONEX AO3482 provides four analog output points with enhanced current-driving capability. It supports standard 4–20 mA control signals and high-current 4–40 mA outputs, making it suitable for applications requiring direct control of field actuators without additional signal amplifiers. The module combines high accuracy, advanced diagnostics, hot-swappable replacement capability, and TMR reliability to maximize system availability and reduce maintenance downtime.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | AO3482 |
| Manufacturer | TRICONEX (Schneider Electric) |
| Product Type | High-Current Analog Output Module |
| System Platform | Triconex Trident TMR Safety Control System |
| Module Function | Analog signal output and actuator control |
| Architecture | Triple Modular Redundancy (TMR) |
| Number of Output Points | 4 analog output channels |
| Output Type | Current output, DC coupled |
| Channels 1-2 Output Range | 4–20 mA (0–22 mA over-range) |
| Channels 3-4 Output Range | 4–40 mA (0–44 mA over-range) |
| Resolution | 12-bit |
| Output Accuracy | <0.25% full-scale range |
| Load Capability | Up to approximately 800 Ω depending on output condition |
| Diagnostic Functions | Loopback monitoring, output verification, fault diagnostics |
| Isolation | Functional and channel isolation design |
| Hot Swap | Supported with compatible Triconex chassis |
| Communication Interface | Internal Triconex triplicated I/O bus |
| Installation Type | Triconex rack/baseplate mounting |
| Compatible Baseplate | Triconex 2481 Analog Output Baseplate |
| Operating Temperature | 0°C to +70°C typical |
| Storage Temperature | -40°C to +85°C |
| Safety Architecture | SIL-capable TMR design |
Main Features and Advantages
The most important advantage of TRICONEX AO3482 is its Triple Modular Redundancy architecture. The module contains three independent signal processing paths that continuously monitor each other. If one internal path fails, the remaining healthy channels maintain correct operation through voting logic, preventing a single hardware fault from causing loss of control output. This makes TRICONEX AO3482 particularly suitable for safety-critical applications where uninterrupted operation is essential.
Compared with standard analog output modules, TRICONEX AO3482 provides enhanced current output capability. Channels 1 and 2 support 4–20 mA signals, while channels 3 and 4 support higher-current 4–40 mA outputs. This allows TRICONEX AO3482 to directly drive demanding field devices such as hydraulic actuators, control valves, and industrial regulators without additional external amplifiers.

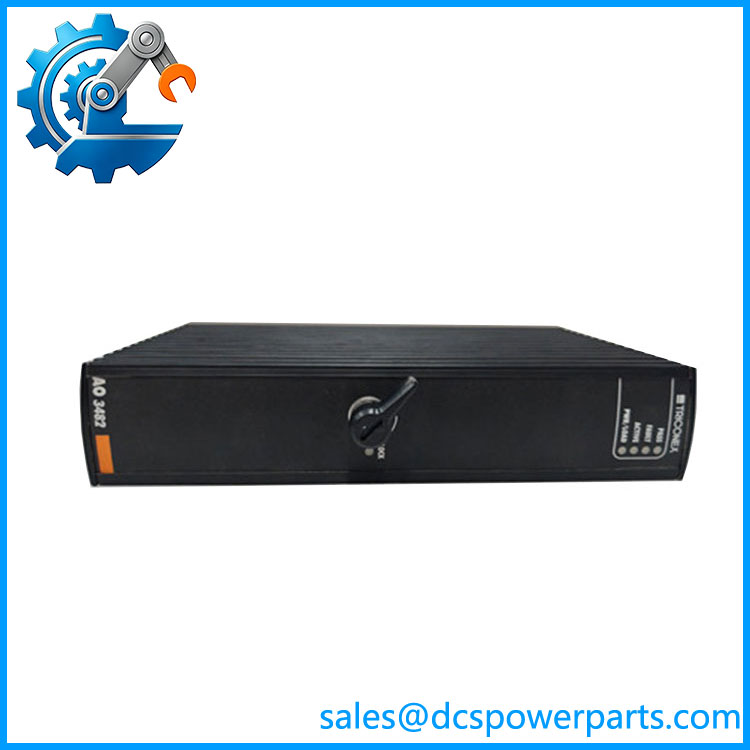

AO3482
TRICONEX AO3482 uses high-resolution digital-to-analog conversion technology to provide accurate output regulation. The module continuously monitors output conditions through internal feedback circuits, ensuring that the commanded value matches the actual field output. This improves control loop stability and reduces process deviations.
Integrated diagnostics allow TRICONEX AO3482 to detect output circuit abnormalities, module faults, and communication problems. Status indicators on the front panel provide operators with immediate information about module health, active status, and fault conditions, simplifying troubleshooting and maintenance.
TRICONEX AO3482 supports online replacement in compatible Triconex systems. The hot-swap design allows maintenance engineers to replace defective modules without shutting down the entire safety system, significantly improving plant availability.
Designed for continuous operation in demanding environments, TRICONEX AO3482 delivers reliable performance in industries requiring strict safety standards. Its combination of redundancy, diagnostics, and high-current output capability makes it a trusted component for modern SIS and process automation systems.
Application Areas
TRICONEX AO3482 is widely used in safety instrumented systems and industrial automation applications requiring reliable analog control outputs.
In oil and gas production facilities, TRICONEX AO3482 is commonly used in emergency shutdown systems, burner management systems, compressor protection systems, and process control applications. It provides accurate analog signals for regulating valves, actuators, and critical process equipment.
In petrochemical and chemical plants, TRICONEX AO3482 supports safety control loops where continuous operation and fault tolerance are essential. It can control process valves, flow regulators, pressure control devices, and other analog field equipment.
In power generation facilities, TRICONEX AO3482 is applied in turbine protection systems, boiler control systems, and auxiliary equipment control applications. Its high reliability helps maintain stable plant operation and improve equipment protection.
In pharmaceutical, manufacturing, and industrial processing plants, TRICONEX AO3482 provides dependable analog control for automated production systems. Its diagnostic capability helps reduce unexpected failures and improve maintenance efficiency.
In offshore platforms, LNG facilities, and hazardous-area installations, TRICONEX AO3482 provides a reliable interface between safety controllers and field actuators, supporting continuous operation under demanding environmental conditions.
Related Products
- TRICONEX AO3481: Standard analog output module in the same family, providing conventional 4–20 mA output functions.
- TRICONEX AI3351: Analog input module used for acquiring process measurement signals from field transmitters.
- TRICONEX DI3301: Digital input module for safety switch and discrete signal monitoring.
- TRICONEX DO3401: Digital output module for controlling field devices such as solenoid valves.
- TRICONEX MP3008: Main processor module for Triconex safety controllers.
- TRICONEX CM3201: Communication module for Triconex system networking.
- TRICONEX 2481: Analog output baseplate designed for installing TRICONEX AO3482.
