Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | TRICONEX |
| Model | 3721C |
| Product Type | TMR Analog Input Module |
| System Platform | Tricon Safety Instrumented System |
| Module Type | Analog Input |
| Number of Inputs | 32 differential channels |
| Input Type | DC-coupled differential analog input |
| Input Voltage Range | 0 to 5 VDC / -5 to +5 VDC |
| Current Input Range | 0 to 20 mA with external shunt resistor |
| Resolution | 12-bit or 14-bit programmable |
| Input Update Rate | 10 ms |
| Accuracy | <0.15% of full scale (0°C to 60°C) |
| Input Resistance | 10 MΩ minimum |
| Common Mode Rejection | -85 dB (DC to 100 Hz) |
| Common Mode Voltage Range | -12 V to +12 V peak |
| Channel Isolation | Approx. 420 kΩ typical |
| Field/System Isolation | 800 VDC minimum |
| Overrange Protection | 150 VDC continuous / 115 VAC continuous |
| Diagnostics | PASS, FAULT, ACTIVE, FIELD indicators |
| Color Code | Yellow |
| Compatible System Version | Tricon v10.2 and later |
| Mounting | Tricon main chassis I/O slot |
| Application | Safety-critical analog measurement |
Product Introduction
TRICONEX 3721C Overview
The TRICONEX 3721C is a Triple Modular Redundant (TMR) analog input module designed for Tricon safety instrumented systems where reliable analog measurement and fault detection are required. It acquires analog signals from field devices such as pressure transmitters, temperature transmitters, level instruments, and process analyzers, then transfers validated input data to the Tricon controller for safety logic execution.
The TRICONEX 3721C provides 32 differential analog input channels with DC coupling, supporting voltage measurement ranges of 0 to 5 VDC and -5 to +5 VDC. Through external signal conditioning, current-based instruments operating in the 0–20 mA range can also be integrated. Each channel uses independent signal processing paths to support the TMR architecture used throughout Tricon safety systems.
The TRICONEX 3721C is typically installed in process industries where analog measurement accuracy and fault detection are critical. Typical environments include oil and gas facilities, chemical processing plants, power generation systems, and large industrial plants using safety shutdown or protection systems.
The module supports programmable resolution of 12-bit or 14-bit and provides diagnostic monitoring through module status indicators. The design includes input protection, isolation, and channel monitoring features intended to help identify field wiring problems, sensor failures, and internal module faults.
When replacing a TRICONEX 3721C, engineers should verify the Tricon system version, TriStation configuration, field termination wiring, signal scaling, and application database. The physical module replacement alone does not restore engineering configuration or process calibration parameters.

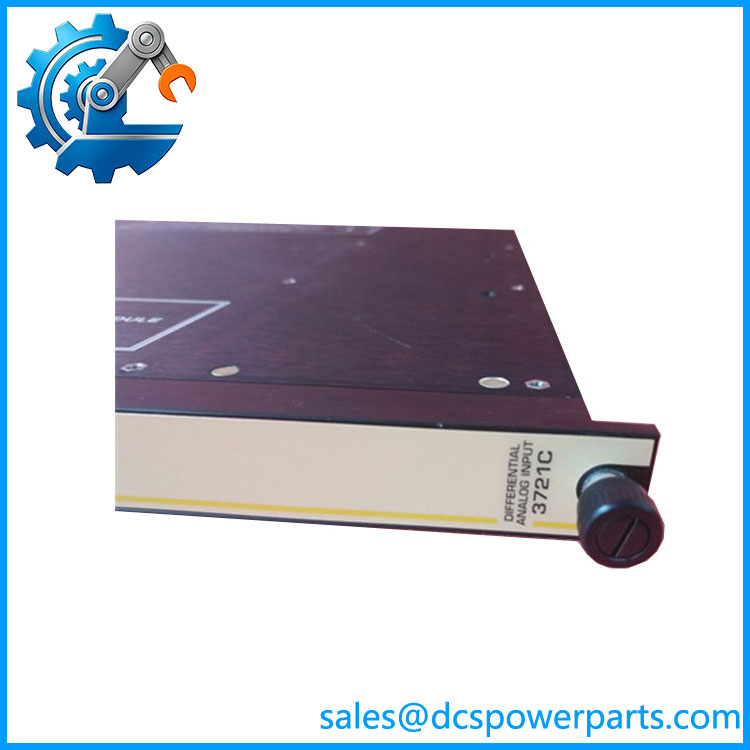

3721C
3721C
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A safety system reports analog input discrepancies, transmitter faults, or unexpected process values. The analog input module may appear to be the cause, but many issues originate from field instrumentation, wiring, grounding, or configuration.
Recommended troubleshooting steps:
- Check module diagnostic LEDs
- Compare redundant channel readings
- Verify transmitter output stability
- Inspect field cable shielding
- Confirm signal scaling parameters
- Review TriStation hardware configuration
The TRICONEX 3721C provides the measurement interface, but accurate safety decisions depend on the complete field-to-controller signal chain.
Typical Applications
Emergency Shutdown Systems (ESD)
Used for:
- Pressure monitoring
- Temperature protection
- Process trip initiation
- Safety interlocks
Turbine and Rotating Equipment Protection
Applied for:
- Vibration-related analog monitoring
- Speed and process measurements
- Protective shutdown logic
Oil and Gas Processing
Used in:
- Offshore platforms
- Refinery safety systems
- Compressor protection systems
Chemical and Power Plants
Applied for:
- Reactor monitoring
- Boiler protection
- Critical process measurement
Technical Pitfalls to Avoid
1. Verify Tricon Version Compatibility
The 3721 family has specific system compatibility requirements. Confirm:
- Tricon controller version
- Chassis type
- Firmware revision
- TriStation software compatibility
The 3721 module is specified for Tricon v10.2 and later systems.
2. Check Field Signal Type
Before installation, verify:
- Voltage input range
- Current loop conversion method
- Transmitter output type
- Signal grounding method
Incorrect signal configuration can create inaccurate process values.
3. Review Safety Application Configuration
Backup:
- I/O assignments
- Signal scaling
- Alarm limits
- Shutdown logic references
Hardware replacement without configuration restoration can prevent correct system operation.
4. Inspect Field Termination Wiring
Common problems include:
- Loose terminal connections
- Shield grounding issues
- Damaged instrument cables
- Incorrect polarity
Analog modules are sensitive to installation quality, especially in low-level measurement applications.
