Description

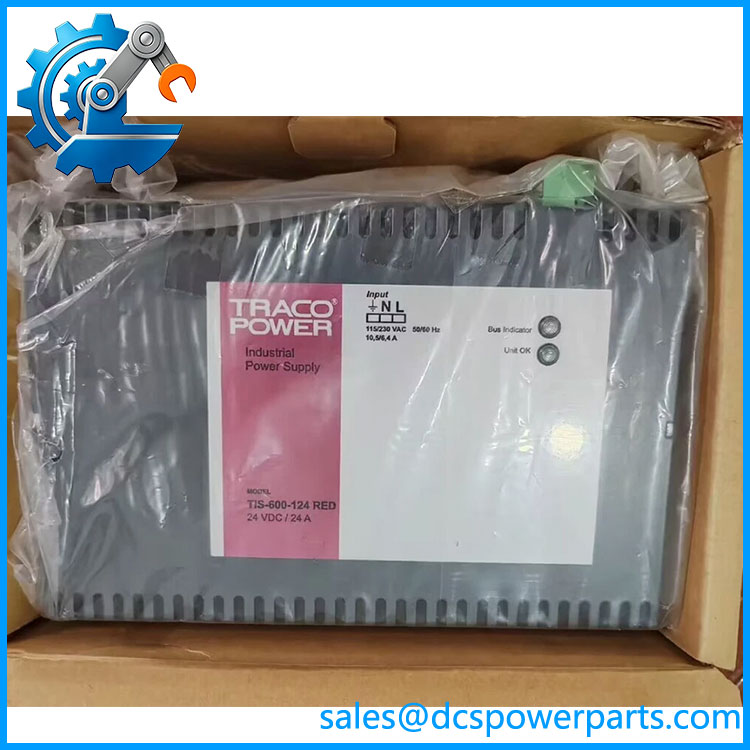

TRACO POWER TIS600-124 Industrial Switching Power Supply
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | TIS600-124 |
| Manufacturer | TRACO POWER |
| Series | TIS |
| Product Type | Industrial switching power supply |
| Input Type | Single-phase AC |
| Input Voltage | 93–132VAC / 187–264VAC |
| Output Voltage | 24VDC |
| Output Current | 24A |
| Output Power | 600W class |
| Number of Outputs | 1 |
| Mounting | DIN rail |
| Electrical Connection | Terminal block |
| Protection | Overvoltage protection, short-circuit protection |
| IP Rating | IP20 |
| Operating Temperature | -25°C to +70°C |
| Dimensions | Approx. 243 × 177.2 × 82.6 mm |
| Efficiency | Approximately 85% according to distributor specification |
The TIS series documentation describes the family as DIN-rail switch-mode power supplies intended for industrial process-control systems and machine-tool applications. The 24V models are offered in several current ratings, with the TIS600-124 representing the 24A / 600W class.
Product Introduction
The TRACO POWER TIS600-124 is a high-capacity industrial AC/DC switching power supply designed to provide regulated 24VDC at up to 24A for control cabinets and industrial electrical systems. Its DIN-rail mounting format makes it suitable for centralized cabinet power distribution where PLCs, remote I/O, relays, sensors, transmitters, communication equipment, and other 24VDC loads share a common supply. Published distributor data specifies a single AC input stage, one 24VDC output, terminal-block connections, and IP20 enclosure protection.
The TRACO POWER TIS600-124 belongs to the TIS industrial power-supply family, which also supports optional system-oriented functions such as redundancy and power-status monitoring on applicable configurations. Those options should not be assumed to exist on a standard TIS600-124; confirm the complete suffix and installed option module before replacement.
TIS600-124
Application Scenarios & Field Pitfalls — Engineer’s Perspective
The is appropriate for PLC control cabinets, industrial machine controls, distributed I/O power distribution, instrumentation panels, and legacy automation systems requiring a relatively high-current 24VDC supply. At 24A, it can serve as the main DC supply for a cabinet containing multiple control and field devices, provided the total continuous load and startup current remain within the power supply’s operating limits.
Several points deserve attention during replacement:
- Do not confuse 600W with a 24V/600A supply. The nominal output is 24VDC at approximately 24A.
- Check the AC input configuration. Published specifications identify 93–132VAC and 187–264VAC input ranges; confirm the actual mains arrangement before energizing.
- Check cabinet dimensions. The published body dimensions are approximately 243 × 177.2 × 82.6 mm, so physical clearance and adjacent DIN-rail equipment matter.
- Verify optional modules. TIS-series RED and SIG configurations provide different system functions. A standard should not automatically be treated as equivalent to a -RED or -SIG.
- Allow for thermal derating. The published operating range extends to +70°C, but cabinet temperature, ventilation, mounting orientation, and continuous load should be considered together.
- Confirm lifecycle status. Distributor records identify TIS 600-124 variants as obsolete, making exact-part-number matching and spare-stock condition important for legacy installations.
Related Products
- TRACO POWER TIS300-124 — Lower-power member of the TIS family, suitable where the 24A capacity of the is unnecessary.
- TRACO POWER -SIG — Adds power-status signaling and external control functions; not a direct functional match for every installation.
- TRACO POWER -RED — Redundancy-oriented variant for systems requiring parallel power-supply operation.
- TRACO POWER TIS150 Series — Smaller TIS power range for lower-current 24VDC cabinet loads.
- TRACO POWER TIS300 Series — Intermediate power range within the same industrial supply family.
Procurement note: For a legacy replacement, specify the complete designation and verify the input voltage arrangement, output current requirement, physical mounting dimensions, optional RED/SIG functions, and the condition of the available unit. Do not substitute another TIS model solely because it provides 24VDC.
