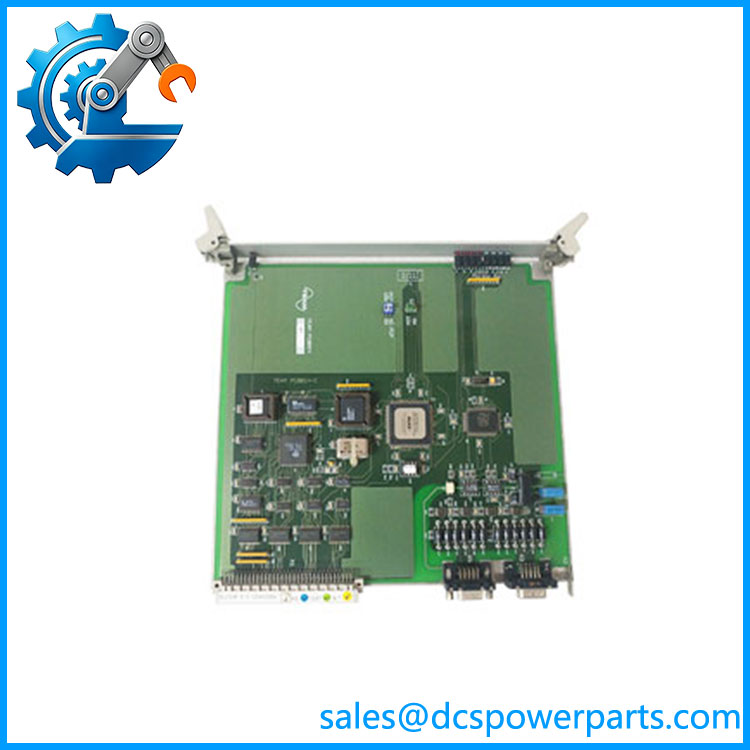

TEAM BL0308 PC0014-P | ALSPA C80 Turbine Control I/O Module

TEAM BL0308 PC0014-P | ALSPA C80 Turbine Control I/O Module

  • Model: BL0308 PC0014 / PC0014-P
  • Brand: TEAM
  • Series: TEAM BL0000 VME I/O Control Platform
  • Core Function: Mixed analog and digital I/O board used for signal acquisition and control output in industrial automation systems.
  • Product Type: VME I/O Interface Module / Turbine Control I/O Board
  • Key Specs:
    • Single-height VME plug-in board design
    • 16 digital inputs, 8 analog inputs, 8 digital outputs, 4 analog outputs (PC0014-P configuration)
    • Ethernet and RS-485 communication interfaces
    • Operating temperature range: -40°C to +85°C
Add To Quote
Category: SKU: TEAM BL0308 PC0014-P

Description

Key Technical Specifications

Parameter Value
Product Model TEAM BL0308 PC0014 / PC0014-P
Manufacturer TEAM
Product Type VME Mixed Analog/Digital I/O Board
Series BL0000 Series
Bus Interface VMEbus
Application Industrial control, turbine control, process automation systems
Digital Inputs 16 channels
Analog Inputs 8 channels
Digital Outputs 8 channels
Analog Outputs 4 channels
Communication Interfaces Ethernet, RS-485
Output Types Relay / PWM (configuration dependent)
Input Voltage Range 24 VDC–240 VAC
Operating Temperature -40°C to +85°C
Mounting Single-height VME rack installation
Compatible Systems TEAM / ALSPA C80 control architectures (verify exact configuration)



Product Introduction



TEAM BL0308 PC0014 PC0014-P Product Introduction

TEAM BL0308 PC0014 PC0014-P is a VME-based mixed I/O control board designed for industrial automation and legacy control platforms. The module provides analog and digital signal handling between field devices and higher-level controllers, making it suitable for equipment monitoring, actuator control, and process signal acquisition.

The primary value of TEAM BL0308 -P is maintaining existing VME control systems where replacing the entire automation platform would require significant engineering effort. For turbine, power generation, and process applications, matching the correct hardware revision and I/O configuration is critical before installation.

BL0308 PC0014 PC0014-P

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)



Engineering Pain Point

A turbine or process control system shutdown is often caused by a small I/O failure rather than a major controller fault. Older VME-based systems can remain operational for decades, but finding an exact replacement I/O board becomes difficult when production equipment depends on legacy configurations. A replacement board must match the signal type, rack position, channel assignment, and application software settings.



Typical Applications

  • Power Generation – Turbine auxiliary control, sensor monitoring, and actuator signal management.
  • Industrial Process Plants – Analog measurement acquisition and digital equipment status monitoring.
  • Manufacturing Automation – Legacy machine control systems requiring VME-based I/O expansion.
  • Energy and Utility Facilities – Replacement of installed control rack modules for long-life equipment.



Technical Pitfalls to Avoid

  1. Confirm I/O Channel Mapping Before Replacement
    Mixed I/O boards are highly dependent on field wiring. Verify every channel assignment before removing the existing module.
  2. Check VME Rack Configuration
    Confirm slot location, addressing, and communication settings. A physically compatible board may not communicate correctly if the rack configuration differs.
  3. Verify Software Database Compatibility
    Control applications may contain board-specific definitions. Confirm the engineering database and configuration files before returning the system to operation.



Related Products

  • TEAM BL0170 PC0010-P
    Related TEAM industrial control module used for PLC-style control applications. It serves a controller role, while BL0308 -P focuses on field signal I/O processing.
  • TEAM BG0090 PC0006
    Related TEAM control module used in industrial automation applications. It is typically associated with control functions rather than mixed I/O acquisition.
  • TEAM BL0000 Series VME I/O Boards
    Product family containing additional VME interface modules for industrial control racks.
  • TEAM ALSPA C80 Control Modules
    Related control system assemblies used in power generation and industrial automation applications.
  • VME Analog Input Modules
    Supporting boards used for temperature, pressure, vibration, and process measurement acquisition.
  • VME Digital Input Modules
    Used for discrete field signals such as switches, alarms, and equipment feedback.
  • VME Digital Output Modules
    Used for controlling relays, valves, contactors, and industrial actuators.
  • Industrial VME CPU Control Boards
    Higher-level processing modules responsible for executing control logic and coordinating I/O operations.
