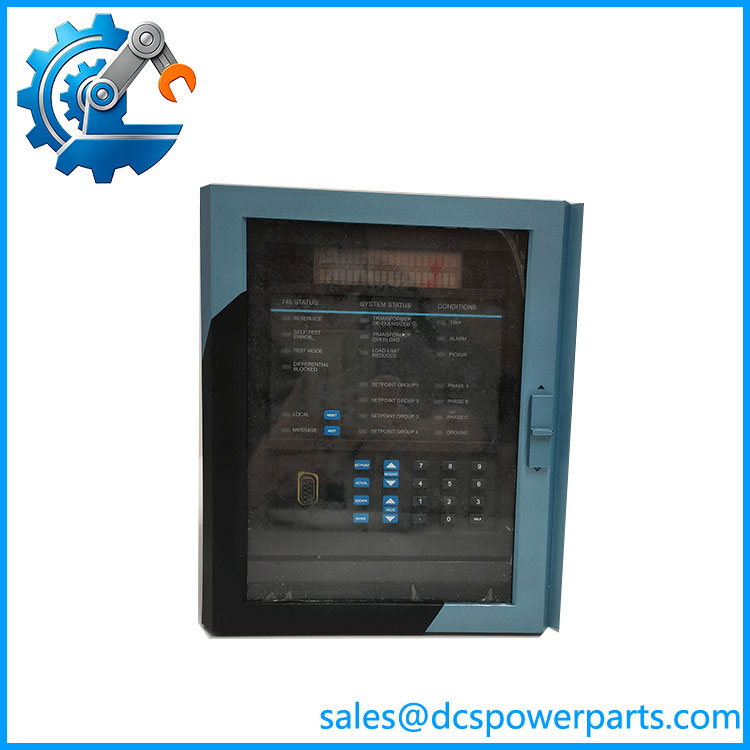

GE Multilin SR745-W2-P1-G1-HI-A-L-R-E Product Description
Product Overview
GE Multilin SR745-W2-P1-G1-HI-A-L-R-E is a multifunctional Transformer Management Relay from the GE Multilin 745 series, designed for comprehensive protection, monitoring, metering and control of two-winding power transformers. The SR745 platform combines transformer differential protection, overcurrent protection, thermal monitoring, overexcitation protection and programmable logic within a single numerical protection device.
The GE SR745-W2-P1-G1-HI-A-L-R-E configuration is engineered for applications using 1 A CT secondary inputs and a high-range auxiliary control power supply. Its analog I/O capability enables integration with plant instrumentation and DCS/SCADA systems, while serial and optional Ethernet communications support remote monitoring and engineering access.
As a transformer-management device, SR745-W2-P1-G1-HI-A-L-R-E goes beyond basic fault tripping. It continuously evaluates electrical and thermal operating conditions, records events and waveforms, and provides programmable FlexLogic™ functions. This makes it suitable for both protection and asset-management strategies in substations, power plants and industrial electrical systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SR745-W2-P1-G1-HI-A-L-R-E |
| Manufacturer | GE Multilin |
| Product Series | Multilin 745 |
| Product Type | Transformer Management & Protection Relay |
| Transformer Configuration | W2 – Two-Winding |
| Phase CT Input | P1 – 1 A nominal |
| Ground CT Input | G1 – 1 A nominal |
| Control Power | HI – 90–300 VDC / 70–265 VAC, 48–62 Hz |
| Analog I/O | A – Analog inputs/outputs |
| Transformer Loss-of-Life | L – Included |
| Restricted Ground Fault | R – Included |
| Display | Enhanced local display/keypad |
| Logic | FlexLogic™ programmable logic |
| Communications | RS232, RS485/RS422; Ethernet depending on configuration |
| Protocols | Modbus RTU, Modbus TCP/IP, DNP 3.0 |
| Mounting | Panel / 19-inch rack, drawout case |
| Operating Temperature | Approx. -40°C to +60°C |
| Event Recording | Up to 256 time-stamped events |
| Waveform Capture | Up to 128 cycles, configuration dependent |
| Typical Application | Power Transformer Protection |
| Part Number | SR745-W2-P1-G1-HI-A-L-R-E |
The available documentation indicates that the W2 configuration is for two-winding transformers, P1 specifies 1 A phase CT inputs, G1 specifies 1 A ground CT inputs, and HI corresponds to the high-range control-power option.
Main Features and Advantages
Comprehensive Transformer Protection
The GE SR745-W2-P1-G1-HI-A-L-R-E integrates multiple protection elements into one numerical relay. Differential protection, phase and ground overcurrent, restricted ground-fault protection, thermal overload and overexcitation functions can work together to protect transformer assets against both internal faults and abnormal operating conditions.
Transformer Differential Protection
The SR745’s differential protection compares currents associated with the protected transformer windings to identify internal electrical faults. Harmonic restraint capabilities help distinguish transformer energization/inrush conditions from genuine internal faults, reducing the possibility of unwanted differential trips.
SR745-W2-P1-G1-HI-A-L-R-E
Restricted Ground-Fault Protection
The R option adds restricted ground-fault functionality. This provides sensitive protection for grounded transformer windings and can detect earth faults within a defined protection zone that may not be detected as quickly by conventional overcurrent protection.
Transformer Asset Management
The L option provides transformer loss-of-life monitoring. By considering loading and thermal conditions, the relay can help maintenance and operations personnel assess transformer aging and make better decisions regarding loading, inspection and maintenance.
FlexLogic™ Programmable Logic
FlexLogic™ allows engineers to combine protection elements, digital inputs, timers and control conditions into customized logic schemes. This makes SR745-W2-P1-G1-HI-A-L-R-E adaptable to different transformer protection, alarm, interlocking and trip philosophies without requiring extensive external relay logic.
Advanced Monitoring and Recording
The relay can monitor electrical quantities such as current, voltage, power, energy, frequency and harmonics, while also recording events and disturbance waveforms. These functions are valuable for post-fault analysis and predictive maintenance.
DCS and SCADA Integration
The analog I/O and communication capabilities of the GE Multilin SR745 allow transformer operating data and protection status to be integrated into higher-level automation systems. Serial communications and supported Modbus/DNP protocols facilitate connection to SCADA, substation automation and plant DCS systems.
Enhanced Local Interface
The enhanced-display configuration provides a larger local display and expanded keypad, making it easier for technicians to review measurements, alarms, relay status and setpoints directly at the panel.
Application Fields
GE Multilin SR745-W2-P1-G1-HI-A-L-R-E is primarily used for protection and management of two-winding power transformers, including transformers installed in substations, generating stations and industrial distribution systems. Its combination of differential, ground-fault, overcurrent and thermal protection makes it suitable for both primary and backup transformer protection schemes.
In thermal, hydroelectric, gas-turbine and renewable-energy power plants, the SR745-W2-P1-G1-HI-A-L-R-E can protect generator step-up transformers and auxiliary transformers. Continuous monitoring of current, voltage, temperature-related parameters and transformer loading helps operators identify abnormal conditions before they develop into serious equipment failures.
In substations, the relay can protect step-up, step-down and interconnecting transformers. The restricted ground-fault function is especially useful for sensitive earth-fault detection, while differential protection provides rapid response to internal winding faults.
For oil & gas, petrochemical, metallurgy and other energy-intensive industrial facilities, the GE SR745 can be integrated into medium- and high-voltage electrical systems. Its communication and programmable-logic functions make it suitable for coordinating transformer protection with plant DCS, SCADA, breaker control and alarm systems.
