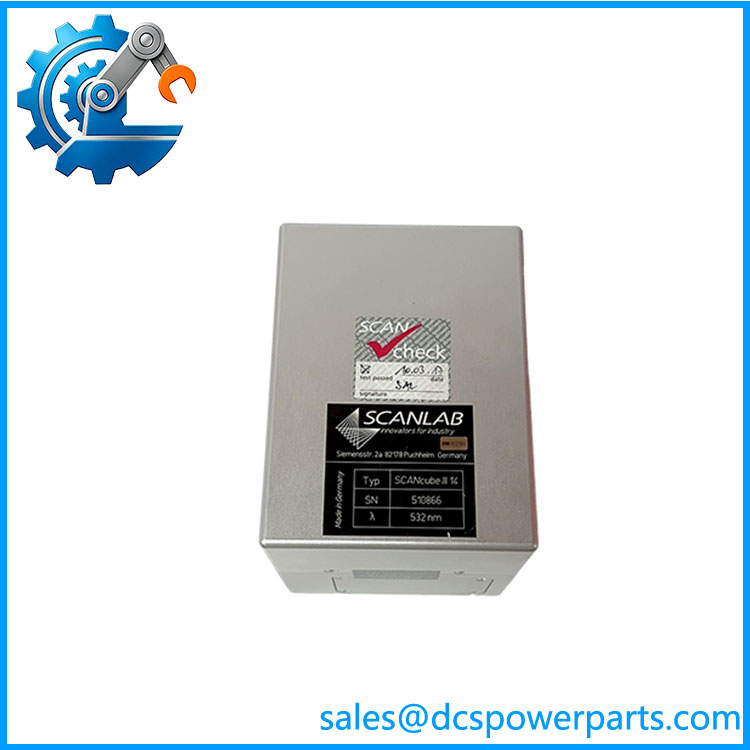

The SCANLAB INTELLISCANDE III14-532NM is a precision galvanometer laser scan head designed for high-accuracy beam positioning in industrial laser processing systems. Developed by SCANLAB GmbH, this unit belongs to the intelliSCAN III platform and is optimized for applications using 532nm green laser sources. The system uses two-axis galvanometer technology to rapidly position laser beams across a defined working field, supporting processes such as micro-machining, laser marking, drilling, welding, and semiconductor manufacturing.
The SCANLAB INTELLISCANDE III14-532NM combines a 14mm optical aperture with digital encoder feedback technology to achieve stable positioning performance in demanding production environments. The intelliSCAN III 14 platform supports standard optical configurations for multiple laser wavelengths, while the green laser version is configured for 532nm applications where wavelength-specific optical coatings and beam handling are required.
Within laser automation equipment, the SCANLAB INTELLISCANDE III14-532NM functions as the motion component between the laser source and the workpiece. It receives commands from laser control electronics and adjusts mirror angles with high repeatability, allowing precise pattern generation and controlled energy placement. Typical integrations include laser marking machines, photovoltaic processing equipment, medical device manufacturing systems, and semiconductor production tools.
For engineers maintaining industrial laser platforms, the scan head selection requires more than matching the model number. To be completely transparent, replacement verification should include wavelength coating, controller interface, calibration data, F-theta lens parameters, and mechanical alignment. The SCANLAB INTELLISCANDE III14-532NM is a precision optical-mechanical assembly, so improper matching can affect marking accuracy, beam quality, and process consistency.
The practical value of this scan head comes from maintaining an existing laser processing platform without redesigning the optical path. Careful inspection of mirrors, connectors, encoder feedback, and calibration parameters should be completed before returning the unit to production service.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | INTELLISCANDE III14-532NM |
| Manufacturer | SCANLAB GmbH |
| Product Type | Galvanometer Laser Scan Head |
| Series | intelliSCAN III |
| Laser Wavelength | 532nm |
| Optical Aperture | 14mm |
| Scan Axes | 2-axis system |
| Scanner Technology | Galvanometer mirror scanner with digital encoder feedback |
| Typical Scan Angle | ±0.35 rad optical |
| Positioning Resolution | Up to 20 bit |
| Repeatability | <0.4 µrad (digital encoder version) |
| Nonlinearity | <0.5 mrad / 44° |
| Marking Speed | Approx. 2.0 m/s with f=160mm lens |
| Positioning Speed | Approx. 5.0 m/s |
| Tracking Error | Approx. 0.15 ms |
| Control Interface | SL2-100 / XY2-100 Enhanced |
| Power Supply | 30VDC or 48VDC variants |
| Cooling | Optional air or water cooling |
| Application | Laser marking, welding, drilling, micromachining |
| Compatible Control | SCANLAB RTC controller systems |
III14-532NM
Related Products
- SCANLAB intelliSCAN III 14 — Standard 14mm aperture scan head within the same family. Used for general laser processing where analog position feedback is acceptable.
- SCANLAB intelliSCANde 14 — Digital encoder version of the 14mm scan head. Provides improved repeatability and reduced drift for precision applications requiring tighter positioning control.
- SCANLAB intelliSCAN III 10 — Smaller aperture scan head for applications requiring reduced beam diameter and compact optical configurations.
- SCANLAB intelliSCAN III 20 — Larger aperture version for applications requiring greater beam handling capability.
- SCANLAB RTC Controller Series — Motion control hardware used to command SCANLAB scan heads and synchronize laser output with scanner movement.
- SCANLAB varioSCAN II — Z-axis focusing extension used with compatible scan heads for three-dimensional laser processing applications.
- SCANLAB excelliSCAN 14 — High-performance scan system designed for applications requiring faster processing and higher dynamic response.
Frequently Asked Questions (FAQ)
1. What is the SCANLAB INTELLISCANDE used for?
The SCANLAB INTELLISCANDE is a galvanometer laser scan head used to position laser beams accurately in industrial processing systems. Typical uses include laser marking, micro-machining, drilling, welding, and semiconductor manufacturing.
2. Can I hot-swap the SCANLAB INTELLISCANDE ?
No. A laser scan head should not be treated like a plug-in control module.
Replacement normally requires:
- Power isolation of the laser system.
- Mechanical alignment verification.
- Optical path inspection.
- Controller parameter verification.
- Calibration testing before production use.
3. Does the SCANLAB INTELLISCANDE support firmware v3.1?
The scan head itself does not function like a PLC processor running application firmware. Compatibility depends on the connected SCANLAB controller, RTC software version, calibration data, and system configuration.
Engineers should verify:
- Controller model
- Communication interface
- Calibration file compatibility
- Laser wavelength configuration
4. Will replacing the SCANLAB INTELLISCANDE erase my laser process parameters?
No. The scan head does not normally store the complete machine process program.
After replacement, technicians should verify:
- Scanner calibration
- Lens correction data
- Field size settings
- Laser timing parameters
- Motion performance
5. How can I verify a New Surplus SCANLAB INTELLISCANDE ?
Recommended checks include:
- Confirm SCANLAB identification label.
- Verify INTELLISCANDE model marking.
- Inspect optical windows and mirror condition.
- Check connector integrity.
- Verify calibration documentation.
- Perform controlled motion testing.
6. What is the difference between INTELLISCANDE and standard intelliSCAN III 14?
The main difference is the encoder configuration and wavelength-specific setup. The digital encoder version provides improved repeatability and lower drift characteristics compared with standard analog position detector configurations.
7. Is the SCANLAB INTELLISCANDE suitable for laser system upgrades?
Yes, when optical, mechanical, and control compatibility are confirmed. For upgrade projects, engineers should review the existing laser source, controller interface, F-theta lens, calibration requirements, and machine software before selecting this scan head.
