RELIANCE S-D4043 Product Description
Product Overview

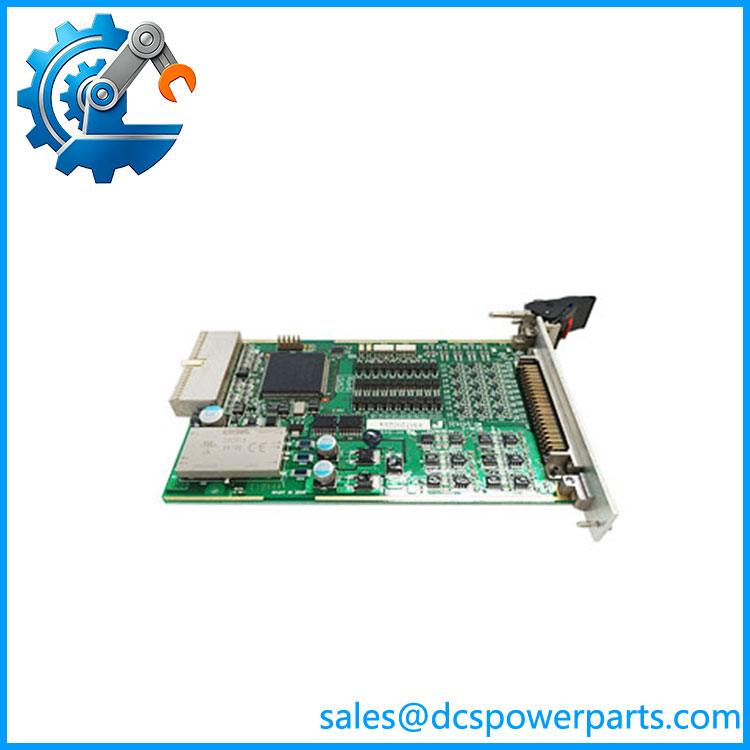

RELIANCE S-D4043 is identified in available industrial automation references as a PSC CompactPCI MCIM-2 motion control card, associated with the Reliance Electric/Baldor-Reliance PSC7000 motion-control platform. The card is designed to provide high-speed motion-control processing and interface functions within a CompactPCI-based industrial controller, rather than serving as a conventional standalone PLC I/O module.
The RELIANCE S-D4043 is particularly suited to multi-axis servo applications requiring coordinated position and motion control. Its MCIM-2 architecture provides high-speed feedback acquisition and motion-control processing, making it suitable for applications where synchronized servo operation, accurate positioning and deterministic control are important. The exact hardware suffix should be checked against the installed PSC7000 configuration before replacement.
For legacy industrial automation equipment, S-D4043 RELIANCE ELECTRIC can serve as a replacement control card for maintaining existing PSC7000 motion-control installations. Its CompactPCI architecture allows the original controller structure, servo interfaces and machine-control strategy to remain in service without unnecessary system redesign.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | S-D4043 |
| Manufacturer | Reliance Electric / Baldor-Reliance |
| Product Family | PSC7000 |
| Product Type | PSC CompactPCI MCIM-2 Motion Control Card |
| Hardware Architecture | CompactPCI |
| Controller Function | Multi-Axis Motion Control |
| Motion Axes | Up to 5 independent axes per card |
| Feedback | High-speed pulse/encoder feedback |
| Encoder Signals | A/B quadrature and Z/index signals |
| Motion Interface | SERCOS-based motion control architecture |
| Installation | PSC7000 CompactPCI Control Rack |
| Backplane | CompactPCI |
| Application | Servo Position, Velocity and Coordinated Motion Control |
| Typical Equipment | CNC, converting, packaging and production machinery |
| Part Number | S-D4043 |
Available product references identify the S-D4043 / MCIM-2 as a five-axis motion-control card for the PSC7000 system, with encoder feedback acquisition and high-speed SERCOS communication.
Note: Some online listings incorrectly classify S-D4043 as a thyristor module, digital controller or general communication card. These descriptions conflict with the more specific MCIM-2/PSC7000 identification. Therefore, detailed electrical specifications should be verified from the installed card label and PSC7000 documentation before replacement.
Main Features and Advantages
CompactPCI-Based Motion Control
The RELIANCE S-D4043 uses a CompactPCI architecture, providing a modular high-performance platform for industrial motion control. This makes it suitable for control cabinets where multiple processing and interface cards operate through a common industrial backplane.
Five-Axis Motion Capability
The MCIM-2 configuration can support up to five independent servo axes on a single card. This enables coordinated control of multiple motors within one machine section and reduces the amount of separate motion-control hardware required.
S-D4043
High-Speed Encoder Feedback
The card is designed to acquire high-speed position feedback from servo motors. A/B quadrature signals and index information can be processed to determine motor position and movement, supporting closed-loop servo control and accurate machine positioning.
SERCOS Motion Interface
The S-D4043 MCIM-2 serves as a SERCOS master/interface component in the PSC7000 architecture. High-speed deterministic communication between the controller and servo drives allows synchronized motion commands and feedback exchange, which is important for multi-axis applications.
Coordinated Servo Control
The card is suitable for applications requiring synchronization between multiple servo axes. Coordinated position and velocity control can improve registration accuracy, machine throughput and repeatability in continuous-production equipment.
Modular Maintenance
Because the S-D4043 is installed as a CompactPCI card, maintenance personnel can replace the individual motion-control assembly rather than replacing the complete PSC7000 controller. This is valuable for older production machines where the original motion architecture remains operational.
Legacy Equipment Support
The S-D4043 RELIANCE is particularly relevant to lifecycle maintenance of existing PSC7000 installations. Maintaining a tested spare can reduce machine downtime when a motion-control card fails and avoids the engineering effort associated with migrating an established machine to a completely different motion platform.
Application Fields
RELIANCE S-D4043 is primarily used in industrial machinery requiring coordinated multi-axis servo control. Within the PSC7000 platform, it can process feedback and exchange motion-control information with servo drives, making it suitable for positioning, synchronization and continuous-motion applications.
In paper manufacturing and converting machinery, the card can support synchronized servo sections for web handling, tension control, cutting and positioning. Multi-axis coordination is particularly valuable where small position errors can cause material waste or registration problems.
In metallurgical processing, slitting, coating and similar production lines can use multi-axis motion control to coordinate rollers, cutters and positioning mechanisms. The high-speed feedback architecture helps maintain synchronization between mechanically coupled or electronically geared axes.
The S-D4043 can also be applied to packaging machinery, CNC equipment and other automated production machines where accurate positioning and repeatable servo movement are required. Its CompactPCI implementation is suited to industrial cabinets containing multiple controller, motion and interface cards.
For maintenance applications, the complete S-D4043 designation should be matched with the existing PSC7000 rack, firmware and motion-control configuration. This is especially important because visually similar Reliance cards can perform substantially different control and communication functions.
