Reliance Electric S-D4012 | AutoMax Control System Module

Description

Product Overview

The Reliance Electric S-D4012 is a legacy Reliance Electric industrial-control part associated with the company’s older automation and motor-control equipment. The available evidence does not support treating every online description of S-D4012 as authoritative. In particular, some current listings assign mutually incompatible functions to the same part number.

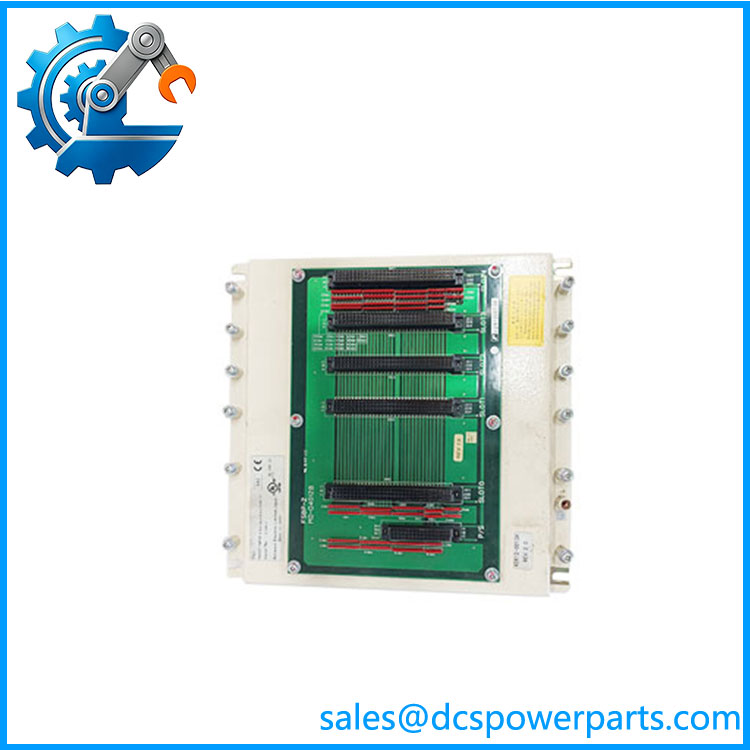

The strongest practical clue is its repeated association with Reliance Electric AutoMax equipment. One detailed listing identifies S-D4012 as a five-slot AutoMax DCS control chassis/backplane, intended to carry processor, drive-control, I/O, and communication cards. Other sources, however, describe S-D4012 as an industrial control module or motor-control device.

Because of this conflict, the Reliance Electric S-D4012 should be purchased by matching the physical assembly, nameplate, surrounding AutoMax rack, and original system documentation. I would not put specific voltage, current, channel count, communication protocol, or enclosure ratings into a formal procurement specification unless they are confirmed from the actual unit.

Technical Specifications

The five-slot description comes from a secondary listing and should be treated as configuration-specific rather than universally confirmed.

Main Features and Advantages

AutoMax System Compatibility

If the S- in question is the AutoMax chassis version, its principal purpose is to provide the physical and electrical platform for multiple AutoMax plug-in modules. The referenced configuration is described as having five standard module slots and a common backplane bus.

Modular Control Architecture

The AutoMax architecture separates processing, drive control, I/O, and communication functions into individual modules. This makes the chassis/backplane an important part of the system even though it does not itself perform the application logic.

Legacy Motor-Control Applications

Reliance Electric equipment is commonly encountered in older paper, printing, metals, converting, and other continuous-process machinery. The S- designation appears in current industrial spare-parts inventories alongside Reliance Electric control and drive hardware.

Maintenance Value

For an operating legacy AutoMax system, replacing a failed chassis or control assembly can be considerably less disruptive than redesigning the complete control system. The critical requirement is to identify the exact S- hardware configuration before procurement.

S-D4012

Application Scenarios

• AutoMax control cabinets
• DC drive control systems
• Paper and printing machinery
• Metal processing equipment
• Converting and web-handling systems
• Legacy production-line automation
• Motor-control system maintenance

Engineer’s Guide: Field Pitfalls

WARNING 1 — S- has conflicting online descriptions

This is the most important issue with this part number.

One source identifies it as a five-slot AutoMax DCS control rack/backplane, while other sources call it an industrial control module, digital I/O module, or AC drive.

Procurement rule: Do not order based solely on a generic S- description. Match the physical hardware.

WARNING 2 — Do not assume it is a 12 A AC drive

One listing claims 480 VAC, three-phase input and 12 Arms output, describing S- as a servo drive. That conflicts with the AutoMax chassis identification.

Procurement rule: Treat those drive ratings as unverified.

WARNING 3 — Do not assume the 16 DI / 16 DO specification

Another listing describes S- as a 24 VDC, 16-input/16-output digital I/O module. There is insufficient evidence to accept those specifications for the generic S- designation.

WARNING 4 — Inspect the assembly before replacement

Check:

• Number of card slots
• Backplane connectors
• Terminal blocks
• Nameplate
• Board/assembly number
• Revision code
• Existing AutoMax modules
• Power wiring
• Rack mounting arrangement

These details will quickly distinguish a chassis/backplane from an active controller or drive.

Frequently Asked Questions

What is Reliance Electric S-?

It is a legacy Reliance Electric industrial-control part, strongly associated with AutoMax equipment, but the exact product configuration needs to be verified because public listings assign several incompatible functions to the same designation.

Is S- an AutoMax chassis?

A detailed secondary listing identifies it as a five-slot AutoMax DCS control chassis/backplane. This is the most useful identification if your physical unit is a multi-slot rack rather than an electronic drive/controller.

Is S- a VFD?

I would not classify it as a VFD based on the model number alone. One reseller describes it as a 480 VAC/12 A drive, but that conflicts with other descriptions.

Is S- a digital I/O module?

One secondary source says so, but it provides generic specifications that are not corroborated by the AutoMax chassis identification.

What should be checked before buying?

For this particular part number, request:

1. Complete nameplate photograph.
2. Front and rear photographs.
3. Number of slots.
4. PCB or assembly number.
5. Revision code.
6. Existing AutoMax module configuration.
7. Backplane connector condition.
8. Power-supply arrangement.
9. Functional test report.
10. Confirmation of compatibility with the existing Reliance Electric rack.

Bottom line: S- is a model number that should not be assigned a detailed specification from reseller listings alone. If your physical unit is a five-slot AutoMax chassis/backplane, that is the most defensible identification from the available evidence; if it is an active electronic module, the nameplate and assembly number are required to identify its exact function.
