RELIANCE S-D4041 Product Description

Product Overview

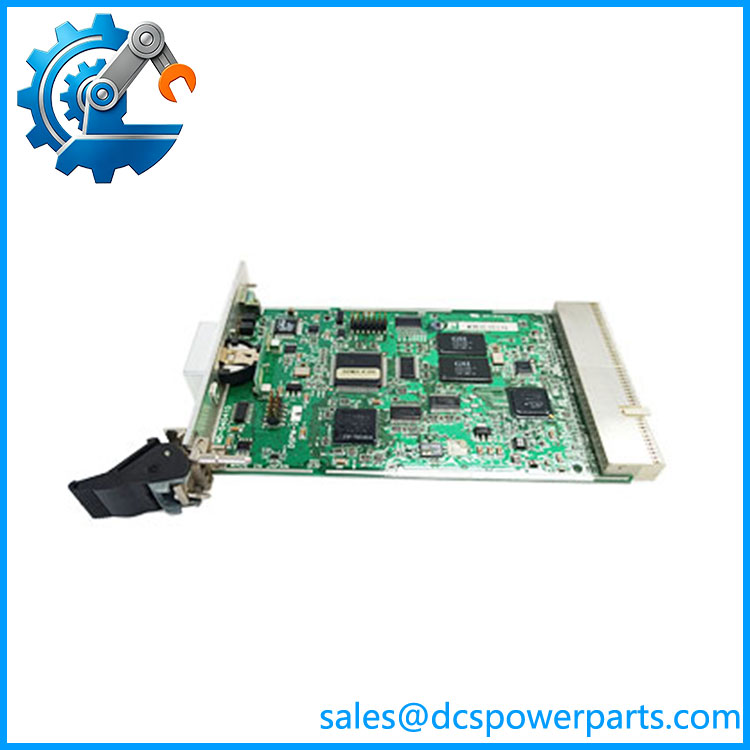

RELIANCE S-D4041 is the model designation for the DSPM-2A Digital Signal Processor Module used in the Reliance Electric PSC7000 programmable motion-control platform. Unlike a conventional digital I/O module, S-D4041 serves as the primary high-speed processing card within the PSC7000 architecture, executing real-time control programs and coordinating the system’s motion-control functions. Reliance’s PSC7000 documentation identifies S-D4041 specifically as the DSPM-2A module.

The RELIANCE S-D4041 uses a DSP-based processing architecture and supports real-time BASIC, control-block programming and PC ladder programming. It works together with the PSC7000 MCIM modules and CompactPCI backplane, providing deterministic processing for servo, positioning and machine-control applications. The manufacturer’s PSC7000 specifications indicate a 75 MHz DSP, 512K long-word SRAM, 4M × 16-bit flash memory and selectable 50 μs or 62.5 μs minimum scan intervals.

For industrial automation maintenance, S-D4041 RELIANCE is therefore an important CPU/DSP replacement component for existing PSC7000 systems. Keeping an exact spare can help restore machine operation without changing the established application program, motion architecture or surrounding CompactPCI hardware.

Technical Specifications

The manufacturer’s PSC7000 documentation identifies the S-D4041 as the DSPM-2A, while the standard system also includes the WR-D4008 motherboard chassis and S-D4043 MCIM-2 motion-control module.

Main Features and Advantages

High-Speed DSP Processing

The RELIANCE S-D4041 is built around a 75 MHz DSP architecture designed for deterministic real-time industrial control. This processing capability is particularly valuable in applications where servo commands, feedback processing and machine sequencing must execute within predictable time intervals.

Multiple Programming Environments

The DSPM-2A supports real-time BASIC, Control Block Language and PC Ladder Language, allowing the same controller platform to accommodate different machine-control programming approaches. This provides greater flexibility for OEM machine builders and maintenance engineers working with existing PSC7000 application programs.

S-D4041

Fast Scan Performance

The selectable minimum scan interval of 50 μs or 62.5 μs enables rapid execution of control tasks. Such deterministic scan performance is well suited to high-speed manufacturing equipment where delays in control calculations can directly affect positioning accuracy, synchronization and production throughput.

CompactPCI Architecture

S-D4041 operates through the PSC7000 CompactPCI backplane, sharing system resources with associated motion-control modules. The modular architecture makes it possible to replace the DSP processor independently rather than replacing the entire controller assembly.

Flexible Memory Architecture

The module incorporates SRAM for main and backup memory together with onboard flash storage. A CompactFlash interface is also provided for storing user application programs and system data, giving maintenance personnel practical options for application backup and restoration.

Integrated Diagnostics

The PSC7000 DSPM architecture includes status indication for battery condition, CPU/watchdog operation and CompactFlash activity. These indicators assist technicians in distinguishing processor, memory-backup and storage-related problems during troubleshooting.

Reliable Legacy-System Replacement

For machines that continue to use the PSC7000 architecture, S-D4041 can be maintained as a direct hardware spare. Exact model matching is important because earlier PSC controller generations use different DSP modules, such as the DSPM-1A S-D4031, which is not equivalent to the DSPM-2A S-D4041.

Application Fields

RELIANCE S-D4041 is primarily used in high-performance industrial automation and motion-control equipment based on the PSC7000 platform. As the DSPM-2A processor, it provides the computational core required for executing machine-control programs and coordinating motion-control tasks.

In packaging and converting machinery, the processor can coordinate servo axes, registration functions, cutting mechanisms and synchronized material handling. Its short scan intervals are beneficial where precise timing is required between multiple machine sections.

In paper, textile and continuous-web processing, the S-D4041 RELIANCE can support coordinated drive and motion applications where speed synchronization and accurate position control are essential. The processor can work with associated MCIM hardware to acquire feedback and execute programmed control algorithms.

The PSC7000 platform is also suitable for industrial production machinery, positioning equipment and multi-axis automation. The S-D4041 can operate with CompactPCI motion hardware and associated servo-control components, providing a centralized real-time processing platform.

For maintenance of legacy systems, the module is especially valuable where an existing PSC7000 application has already been commissioned. Replacing the DSPM-2A with a correctly matched S-D4041 can preserve the established control program and machine architecture while avoiding a complete controller migration.

Related Products

• S-D4043 — MCIM-2 motion-control module used with the S-D4041 DSPM-2A; provides encoder/PG inputs, latch inputs and analog outputs for multi-axis motion applications.
• WR-D4008 — PSC7000 motherboard/chassis that houses the DSPM-2A and associated CompactPCI modules.
• DSPM-2A — Functional designation of S-D4041, serving as the primary DSP processor module in the PSC7000.
• MCIM-2 — Functional designation of S-D4043, the associated motion-control interface module.
• S-D4031 — Earlier DSPM-1A processor module used with previous PSC controller configurations; it should not be assumed to be a direct substitute for S-D4041.
• S-D4039 — SRCS-1 SERCOS module used in earlier PSC7000-related configurations.
