Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 0-60067-1 |
| Manufacturer | Reliance Electric |
| Current Product Family | ABB Baldor Reliance |
| Product Type | Resolver Feedback Board |
| Application | AC/DC drive feedback interface |
| System Platform | AutoMax / PMI drive systems |
| Main Function | Resolver signal processing and feedback interface |
| Feedback Input | Resolver motor position feedback |
| Board Type | Plug-in printed circuit board assembly |
| Installation | PMI rack / drive control chassis |
| Compatible Equipment | Reliance drive control assemblies |
| Typical Use | Motor speed and position feedback monitoring |
| Replacement Requirement | Verify board revision and drive configuration |
Product Introduction
Reliance 0-60067-1 Product Introduction

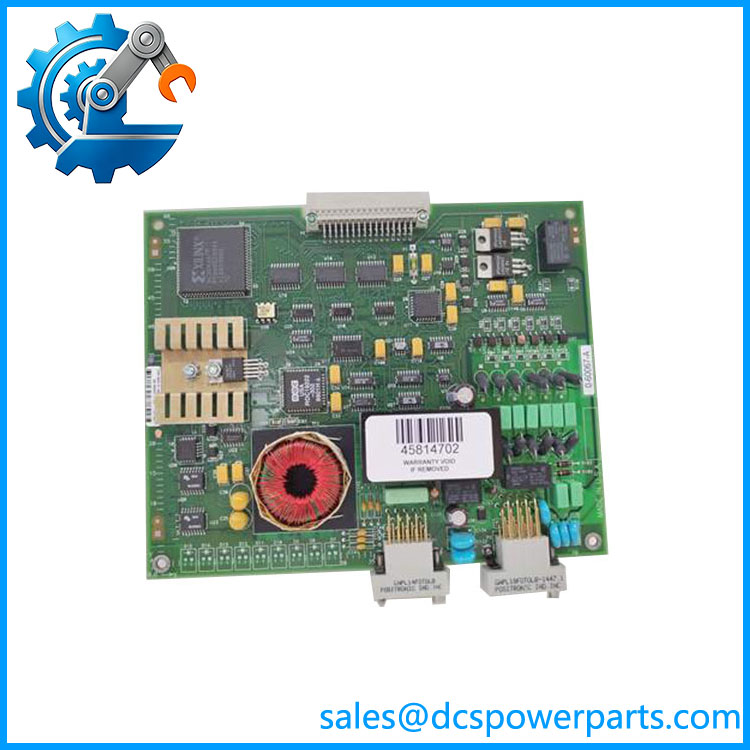

Reliance 0-60067-1 is a resolver feedback circuit board designed for Reliance Electric drive systems. The board receives resolver signals from the motor feedback device and provides the feedback interface required by the drive control architecture for accurate motor operation.
The importance of Reliance 0-60067-1 is maintaining existing AutoMax and PMI-based drive installations where resolver feedback is required for closed-loop motor control. Before replacement, confirm the original board revision, resolver wiring, and drive application parameters. A visually identical PCB may not always be electrically interchangeable.
0-60067-1
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A production machine suddenly loses speed regulation accuracy. The motor and power section appear normal, but the drive reports feedback loss or unstable position signals.
Resolver boards are often overlooked during troubleshooting. They sit between the motor feedback device and the drive controller, meaning a small feedback interface failure can create large control problems.
Typical Applications
- Steel & Metals Processing – Closed-loop speed control for rolling equipment, finishing lines, and large DC motors.
- Material Handling – Motor feedback control for cranes, conveyors, and lifting equipment.
- Paper Manufacturing – Precise tension and speed regulation on paper machine drive sections.
- Industrial Machinery – Servo and drive systems requiring resolver-based position feedback.
Technical Pitfalls to Avoid
- Verify Resolver Compatibility
Confirm resolver type, wiring configuration, and feedback scaling parameters before installing the replacement board. Incorrect feedback signals can cause drive faults immediately after startup. - Check Complete PMI Rack Configuration
The 0-60067-1 is part of a larger drive control system. Verify the processor module, I/O boards, power supply, and firmware revision before replacement. - Inspect Connectors and Cable Condition
Many resolver faults originate from damaged cables, loose connectors, or electrical noise rather than the feedback board itself.
Related Products
- Reliance 0-60067
Base resolver board assembly related to the 0-60067-1 version. Used for similar motor feedback interface functions. - Reliance 0-60066-1
Related drive circuit board used in AutoMax drive assemblies. Functional role differs and should not be substituted without verification. - Reliance 0-60031-5
PMI resolver and drive I/O related hardware used in Reliance drive control racks. - Reliance 0-60065
Control-related PCB assembly used in legacy Reliance drive systems. - Reliance 0-60071
Parallel gate amplifier module used in Reliance drive power control assemblies. - Reliance 0-60072-1
Gate coupling module used in Reliance power conversion systems. - Reliance AutoMax PMI Processor Module
Controller hardware used with resolver and drive I/O boards in distributed drive control systems. - Reliance GV3000 Drive Family
Industrial AC drive platform associated with Reliance motor control applications. Verify exact board compatibility before use.
