Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Reliance Electric |
| Part Number | 0-57100 |
| Product Type | Regulator / Control Logic Module |
| Drive Family | MinPak Plus |
| Application | DC variable-speed drive |
| Functional Role | Drive regulation and control logic |
| Board Identifier | 0-57100 |
| Alternate Identifier | 057100-14C248 / O57100-14C248 |
| Board Components | Potentiometers, transformers, relay, transistors, ICs, resistors, capacitors |
| Connections | Multiple terminal-pin rows and female pin connectors |
| Mounting | Internal drive PCB assembly |
| Lifecycle | Discontinued / legacy |
| Condition | New Surplus / Tested Refurbished |
The strongest available technical record identifies 0-57100 as a Reliance Electric Control Logic Module used typically with the MinPak Plus DC variable-speed drive. It specifically describes the board as a regulator/control-logic assembly.
Another equipment record independently identifies it as a Regulator & Control Logic Module, MinPak Plus.

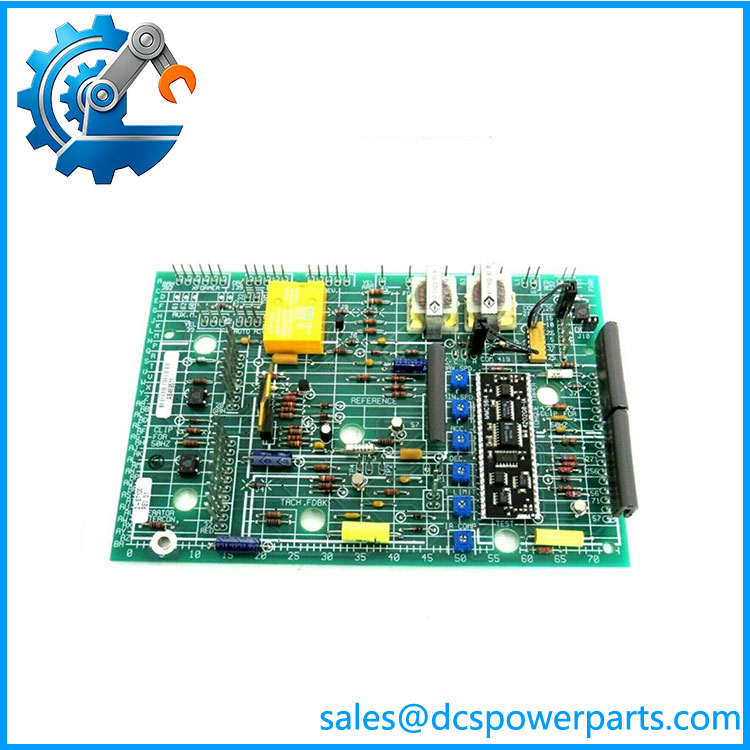

The physical board description is useful when authenticating old stock: the assembly has six potentiometers, two transformers, one relay, several transistors, four integrated circuits, multiple capacitor types, and two surface-wired female pin connectors. The rear reportedly carries the additional code 801416-68A.
Application Scenarios & Pain Points
When a decades-old DC drive starts hunting, losing regulation, or refusing to respond properly to a speed command, the regulator board is one of the first places worth investigating—but only after separating the control fault from motor, tachometer, and power-stage problems.
Typical Applications
- MinPak Plus DC Drives: The primary documented application for 0-57100 is the MinPak Plus DC variable-speed drive family.
- Speed Regulation: The regulator/control-logic circuitry participates in controlling the drive’s operating response. A degraded potentiometer, relay, capacitor, or solder connection can affect behavior.
- Legacy Machine Drives: Suitable for maintaining older DC motor systems where replacing the complete drive would involve substantial cabinet rewiring and machine requalification.
- Drive Repair Inventory: Since the original manufacturer has discontinued the board, a tested spare can be valuable for production equipment that still depends on MinPak Plus hardware.
Field Case:
If the drive runs but speed wanders, do not immediately condemn the 0-57100. Check the tachometer or feedback circuit, speed reference, motor condition, and adjustment settings first. Well, technically, a regulator PCB can be healthy while a dirty feedback potentiometer or loose terminal makes it look guilty.
0-57100
Related Products
- Reliance Electric 0-57100-J — A related 0-57100 family designation identified in legacy inventories as a Control Logic Module. The suffix should be treated as a hardware revision/configuration difference, not ignored during procurement.
- Reliance Electric 0-57100-A — A listed appended designation for the 0-57100 family. Verify the complete board marking and drive compatibility before considering it equivalent.
- Reliance Electric 0-57100-B — Another listed 0-57100 appended version. Useful as a family reference, but revision-specific interchangeability requires documentation confirmation.
- Reliance Electric 0-57100-C — Related MinPak Plus regulator/control board designation. Do not substitute solely because the base number matches.
- Reliance Electric 0-57100-D — Another cataloged appended version of the 0-57100 family. Exact drive and revision matching remains necessary.
- Reliance Electric 0-56307 — Related Reliance Electric power-module hardware. It belongs to the same broad legacy drive ecosystem but serves a different power function and is not a direct substitute.
- Reliance Electric 0-49013-3 — Operational amplifier board used within the broader Reliance Electric drive ecosystem. Its circuit function is different from the 0-57100 regulator/control module.
- Reliance Electric 0-52014 — Timed-voltage board used in legacy Reliance equipment. It is a complementary reference part rather than an equivalent regulator board.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do Not Treat Every 0-57100 Suffix as Identical
Legacy inventory records show numerous appended designations—A, B, C, D and others—as well as 0-57100-J.
How to avoid it: Photograph the original board and record every number printed on both sides. The rear-side 801416-68A marking can also help authenticate the assembly.
⚠️ Do Not Diagnose the PCB From a Speed Problem Alone
A MinPak Plus speed-control problem can originate from the feedback circuit, speed reference, motor, wiring, or adjustment circuitry.
How to avoid it: Before replacing the board, verify the command signal, feedback/tachometer circuit, motor connections, and relevant adjustment points. Compare actual drive behavior with the service documentation.
⚠️ Inspect Aging Components and Connectors
The board contains electrolytic and other capacitor types, transformers, a relay, potentiometers, transistors, and multiple connectors.
How to avoid it: Look closely for heat discoloration, cracked solder joints, oxidized contacts, leaking capacitors, and worn potentiometers. No oxidation on the connector contacts is a good sign, but it is not a functional test.
Frequently Asked Questions (FAQ)
What is Reliance Electric 0-57100?
It is a Regulator / Control Logic Module for Reliance Electric MinPak Plus DC variable-speed drives.
It is a board-level component, not a complete MinPak Plus drive.
What drive family uses the 0-57100?
The documented primary application is the Reliance Electric MinPak Plus DC drive family.
Before ordering, match the board against the complete drive model and the existing PCB markings.
Is 0-57100 still manufactured?
No. Available technical records identify the part as discontinued by the manufacturer.
That means current procurement generally depends on existing inventory, unused legacy stock, repaired boards, or tested refurbished assemblies.
What should I request when buying a refurbished 0-57100?
Request:
- Actual PCB photographs
- Complete 0-57100 marking
- Any suffix or revision
- Rear-side identification, including 801416-68A where present
- Connector-condition photographs
- Potentiometer inspection
- Relay and transformer inspection
- Functional regulator test
- Power-up/load test details
- ESD-safe packaging
- Warranty terms
A seller saying “tested” without describing the test is not enough for this board.
Can another Reliance regulator board replace 0-57100?
Not automatically. Similar Reliance boards can belong to different drive families or perform different functions. The 0-57100 is specifically documented as a MinPak Plus regulator/control-logic module.
The correct approach is to match the drive model, PCB number, revision, connector layout, and electrical configuration.
What are the main failure symptoms of a bad 0-57100?
Possible symptoms include unstable regulation, incorrect speed response, failure to respond correctly to control commands, or other drive-control abnormalities. These symptoms are not unique to the board, though.
Check the tachometer/feedback circuit, speed reference, wiring, motor, and adjustment settings before replacing the PCB.
Is 0-57100 the same as 057100-14C248?
Available equipment records identify 057100-14C248 / O57100-14C248 as alternate identifiers associated with the 0-57100 assembly.
For purchasing, provide both identifiers when they appear on the original board. This reduces the risk of receiving a visually similar but incorrect legacy PCB.
