Description
Product Overview

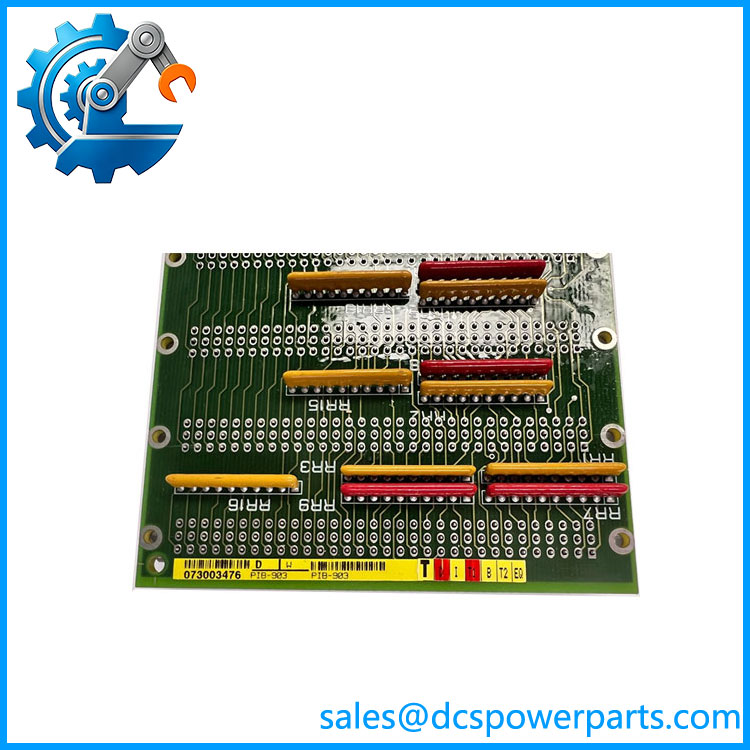

ALSTOM PIB903 is a dedicated Power Interface Board designed for legacy ALSTOM industrial control architectures using modular VME rack technology. The board serves as an interface layer between incoming cabinet power and the electronic modules installed within the control rack.
The ALSTOM PIB903 is commonly associated with BGTR VME rack systems, where stable power delivery is required for CPU modules, I/O boards, communication modules, and other control assemblies. The board manages power conversion and distribution functions required for reliable operation of the rack-based automation system.
Typical system structure:
AC Control Power → PIB903 → VME Rack Power Bus → CPU / I/O / Communication Modules
The PIB903 is not a PLC CPU or standard field I/O module. It is a system-level support board that enables the operation of the VME control architecture by providing the required electrical interface between the cabinet power source and rack electronics.
Typical applications include:
- Gas turbine control systems
- Industrial process control equipment
- Power generation automation
- VME-based DCS platforms
- ALSTOM/Converteam legacy control cabinets
For replacement applications, engineers should verify the exact board marking, rack model, input voltage configuration, output voltage requirements, and connector arrangement. PIB-series boards from different generations may share similar naming but are not necessarily interchangeable.
A failed PIB903 may appear as:
- Complete rack power loss
- Controller startup failure
- Missing VME modules
- Intermittent system resets
- Communication faults caused by unstable supply rails
Before replacing the board, check the incoming AC supply, grounding condition, downstream load current, and VME backplane condition.
PIB903
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ALSTOM / Converteam |
| Model | PIB903 / PIB-903 |
| Product Type | Power Interface Board |
| System Compatibility | ALSTOM VME-based control racks |
| Rack Platform | BGTR 8HE VME rack (typical) |
| Input Voltage | 220 VAC nominal (configuration dependent) |
| Output Voltage | 12 VDC logic supply (configuration dependent) |
| Function | Power conversion and rack interface |
| Communication Support | System-dependent interface functions |
| Indicators | Status LEDs (configuration dependent) |
| Installation | VME rack / control cabinet |
| Operating Temperature | Approx. -20°C to +70°C |
| Application Environment | Industrial control cabinets |
Specifications are based on available ALSTOM references and associated VME rack documentation.
Main Features and Advantages
Rack Power Interface Function
The primary role of the is providing a controlled power interface for VME-based control systems.
Functions include:
- AC input handling
- DC power generation
- Rack power distribution
- Electrical isolation between system sections
A stable power supply is essential because CPU and I/O modules can malfunction when supply voltage drops or develops excessive ripple.
Designed for ALSTOM VME Control Platforms
The was developed for industrial systems based on modular VME architectures.
Typical installed equipment:
- Processor boards
- Digital I/O modules
- Analog I/O modules
- Communication cards
- Control interface modules
These platforms are commonly found in long-service industrial installations where maintaining the original control hardware is often preferred.
Support for Legacy Automation Systems
Many ALSTOM control systems remain operational after decades of service.
Maintaining spare boards helps support:
- Existing turbine control systems
- Industrial automation cabinets
- Power plant control platforms
- Specialized VME installations
Compact Modular Design
The board integrates into the existing rack structure, allowing maintenance teams to replace individual failed assemblies instead of replacing the entire control system.
Diagnostic Considerations
When troubleshooting a -related failure, check:
- AC input voltage
- DC output voltage
- Output ripple
- Rack backplane condition
- Downstream module loading
- Connector contact quality
A power interface board failure is sometimes caused by external faults rather than the board itself.
Application Scenarios
Power Generation Control Systems
Used in:
- Turbine control cabinets
- Generator automation systems
- Plant auxiliary controls
Industrial Automation
Applications:
- Process control
- Manufacturing systems
- Legacy DCS installations
VME Embedded Control Systems
Used for:
- Modular industrial computers
- Real-time control platforms
- Specialized automation equipment
Related Components
| Model | Function |
|---|---|
| PIB310 3BHB0190 | Power/interface board from ALSTOM PIB family |
| PIB100G 3BEE0226 | Related control power interface board |
| PIB102A 3BEB0180 | Interface board variant |
| BGTR 8HE VME Rack | Rack platform associated with |
| ALSPA Control System Modules | ALSTOM industrial automation components |
Engineer’s Guide: Field Pitfalls
⚠️ Verify Exact PIB Variant
Do not replace PIB boards based only on the PIB prefix.
Confirm:
- marking
- Complete part number
- Rack type
- Connector layout
- Voltage configuration
⚠️ Measure Output Voltage Before Replacement
A weak power supply may still illuminate LEDs while producing unstable voltage.
Check:
- DC voltage level
- Ripple voltage
- Load response
- Startup behavior
⚠️ Inspect Downstream Modules
A damaged CPU or I/O module can overload the output.
Check:
- VME modules
- Backplane
- Short circuits
- Field wiring faults
⚠️ Preserve Rack Configuration
Before replacement record:
- Module slot positions
- Cable routing
- Power connections
- System diagnostics
⚠️ Refurbished Board Testing Requirements
A proper evaluation should include:
- Visual PCB inspection
- AC input verification
- DC output measurement
- Load testing
- VME rack compatibility test
- LED/status verification
- Extended operation test
A board that powers up without load testing does not confirm full operational condition.
Frequently Asked Questions
What is ALSTOM ?
The is a Power Interface Board used in ALSTOM/Converteam VME-based industrial control systems.
Is a PLC CPU?
No. It is a power interface and rack support board, not a programmable controller CPU.
Where is used?
It is typically used in ALSTOM VME rack systems, including industrial automation and power generation control applications.
Can replace PIB310?
No. Although both belong to the ALSTOM PIB family, they serve different system roles and require compatibility verification.
What should be checked before replacement?
Verify:
- Model:
- Rack type
- Input voltage
- Output voltage
- Connector arrangement
- Downstream module load
- System documentation
