Description
Product Overview

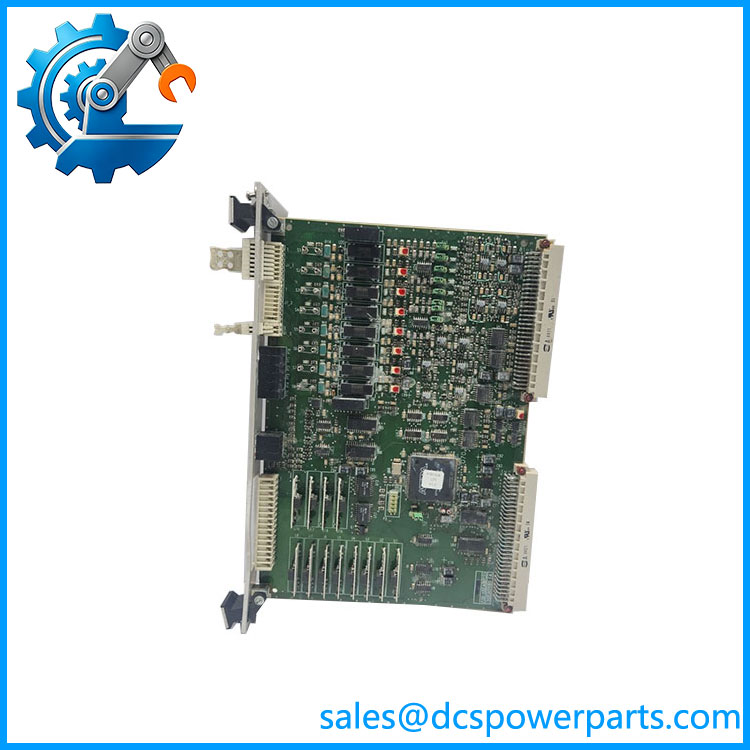

ALSTOM PIB102A 3BEB0180 is a communication interface PCB designed for ALSTOM Converteam industrial automation platforms. The board provides communication and interface processing functions required for coordination between the controller section, rack modules, and drive-related assemblies.
The ALSTOM PIB102A is part of the PIB family of specialized interface boards used in legacy ALSTOM power conversion systems. These boards are designed around the architecture of the host platform and are not general-purpose PLC communication cards. Their function depends on the installed rack, controller configuration, firmware environment, and connected modules.
Typical system architecture:
Controller CPU → PIB102A → Drive Interface Network → Converter / Motor Control Section
The PIB102A manages communication paths that allow command signals, operating status, diagnostic information, and feedback data to move between system components. In large industrial drive systems, this interface layer is important because the controller and power electronics operate as separate functional sections.
Typical applications include:
- Medium-voltage motor drive systems
- Industrial converter cabinets
- Marine propulsion control equipment
- Power generation auxiliary systems
- Process automation installations
The PIB102A 3BEB0180 is commonly maintained as a spare component in long-service ALSTOM installations where preserving the original control architecture is preferred. A failed interface board may produce symptoms such as communication alarms, missing module status, controller startup errors, or loss of drive enable signals.
For replacement work, engineers should confirm the complete identification label, PCB revision, rack slot position, connector arrangement, and system firmware version. PIB family boards may have similar physical appearances while performing different electrical functions.
A proper replacement process should include inspection of the surrounding communication network, power supply condition, and connected modules. A new or refurbished board should be validated within the complete control system rather than tested only as an individual PCB.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ALSTOM / Converteam |
| Model | PIB102A |
| Part Number | 3BEB0180 |
| Product Type | Communication Interface Board |
| Series | PIB Interface Board Series |
| Main Function | Communication and signal interface |
| Application | Industrial drive and power conversion systems |
| System Platform | ALSTOM/Converteam control architectures |
| Communication | Internal system communication interface |
| Signal Handling | Digital control and feedback signal exchange |
| Mounting Type | Rack-mounted PCB |
| Operating Environment | Industrial cabinet |
| Cooling Method | Cabinet airflow |
| Maintenance Category | Control system spare module |
Main Features and Advantages
PIB102A
Dedicated Drive Communication Interface
The main purpose of the is providing a communication path between different parts of the control system.
Functions include:
- Command signal exchange
- Status feedback transmission
- Diagnostic communication
- Module coordination
This allows the drive controller, interface assemblies, and power conversion sections to operate together.
Designed for Legacy ALSTOM Control Platforms
The is designed for ALSTOM/Converteam systems where long equipment service periods are common.
Typical installed environments include:
- Industrial production lines
- Power generation facilities
- Marine electrical systems
- Heavy process industries
Maintaining original interface hardware can reduce engineering effort compared with complete control system replacement.
Modular PCB Architecture
The board uses a modular industrial PCB format, allowing individual replacement during maintenance activities.
Benefits include:
- Faster fault isolation
- Reduced cabinet modification
- Easier spare management
- Simplified troubleshooting
Communication Fault Diagnosis
When a -related fault occurs, engineers should inspect:
- Communication cable connections
- Rack power quality
- Backplane contacts
- Controller diagnostics
- Firmware compatibility
A communication alarm does not always indicate a defective ; external wiring or connected modules may create similar symptoms.
Replacement Considerations
Before installation, verify:
- Exact model:
- Part number: 3BEB0180
- Hardware revision
- Rack configuration
- Firmware environment
- Connected modules
A board from the same product family may not be a direct replacement without system verification.
Application Scenarios
Medium Voltage Drives
Used for:
- Large motor control
- Pumps
- Compressors
- Fans
Industrial Power Conversion
Applications:
- Converter cabinets
- Inverter systems
- Electrical control platforms
Marine Propulsion Systems
Used in:
- Electric propulsion controls
- Shipboard converter equipment
Power Generation
Applications:
- Auxiliary drive systems
- Plant automation equipment
Related Components
| Model | Function |
|---|---|
| PIB310 3BHB0190 | Power/interface board |
| PIB903 | Rack power interface module |
| PIB1201A 3BEC0067 | Power interface board |
| BGTR8HE 24491276A1004 | VME control rack assembly |
| MV7000 Series | ALSTOM/Converteam drive platform |
Engineer’s Guide: Field Pitfalls
⚠️ Verify Board Revision
replacements should be checked for:
- PCB revision
- Firmware version
- Connector layout
- System compatibility
⚠️ Check Communication Infrastructure
Before replacing the board:
- Inspect cables
- Verify shielding
- Check grounding
- Confirm connector condition
⚠️ Investigate External Causes
Possible causes of communication faults:
- Rack power instability
- Backplane problems
- Damaged interface cables
- Faulty connected modules
⚠️ Record Existing Configuration
Before removal:
- Photograph installation position
- Record cable locations
- Save system parameters
- Document alarms
⚠️ Refurbished Board Testing
Recommended checks:
- Visual PCB inspection
- Power supply verification
- Connector inspection
- Communication test
- Rack integration test
- Controller recognition check
- Extended operation test
A board that powers up does not confirm complete communication performance.
Frequently Asked Questions
What is ALSTOM ?
The is a communication interface board used in ALSTOM/Converteam industrial drive and automation systems.
What is the part number of ?
The commonly associated part number is 3BEB0180.
Is a PLC communication module?
No. It is a dedicated interface PCB designed for ALSTOM control architectures.
Can replace PIB310?
No. Although both belong to the PIB family, they perform different system functions and require compatibility verification.
What should be checked before replacement?
Verify:
- model marking
- 3BEB0180 part number
- Hardware revision
- Rack type
- Firmware compatibility
- Communication wiring
- Connected modules
