Description
The part number MVME61006E-0163R refers to a high-performance VMEbus single-board computer (SBC) originally manufactured by Motorola Computer Group and subsequently supported by Emerson / Artesyn Embedded Technologies.
Product Overview
-
Manufacturer: Motorola / Emerson / Artesyn Embedded Technologies
-
Part Number / Model: MVME61006E-0163R (MVME6100 Series)
-
Component Type: VMEbus Single-Board Computer (SBC) / Processor Module
-
Platform: 6U VMEbus Architecture
Key Specifications & Features
-
Processor: Powered by a PowerPC MPC7457 G4 RISC microprocessor running at 1.3 GHz, featuring a 128-bit AltiVec vector processor, 32 KB L1 cache, 512 KB L2 cache, and 2 MB L3 cache.
-
Memory Configuration: Typically equipped with onboard ECC DDR SDRAM (configurations for this tier commonly include 512 MB or higher) and 128 MB of Flash memory split into dual banks for firmware storage.
-
VMEbus Interface: Features the Tundra Tsi148 bridge chip supporting high-speed 2eSST (Two Edge Source Synchronous Transfer) protocol, achieving data transfer rates up to 320 MB/s while maintaining full backward compatibility with legacy VME systems.
-
Network Interfaces: Dual onboard Gigabit Ethernet interfaces (10/100/1000 Mbps) accessible via RJ-45 front-panel connectors.
-
Expansion: Dual 64-bit PMC-X (PCI Mezzanine Card) slots supporting application-specific modular expansion.
-
Suffix Designation: The trailing “R” typically indicates a RoHS-compliant (Restriction of Hazardous Substances) hardware build version, distinguishing it from legacy non-RoHS variants.
Industrial Deployment
-
Applications: Widely deployed in mission-critical embedded computing systems, military/defense infrastructure, aerospace simulation, telecommunications, and advanced industrial automation/control racks requiring heavy computational throughput.

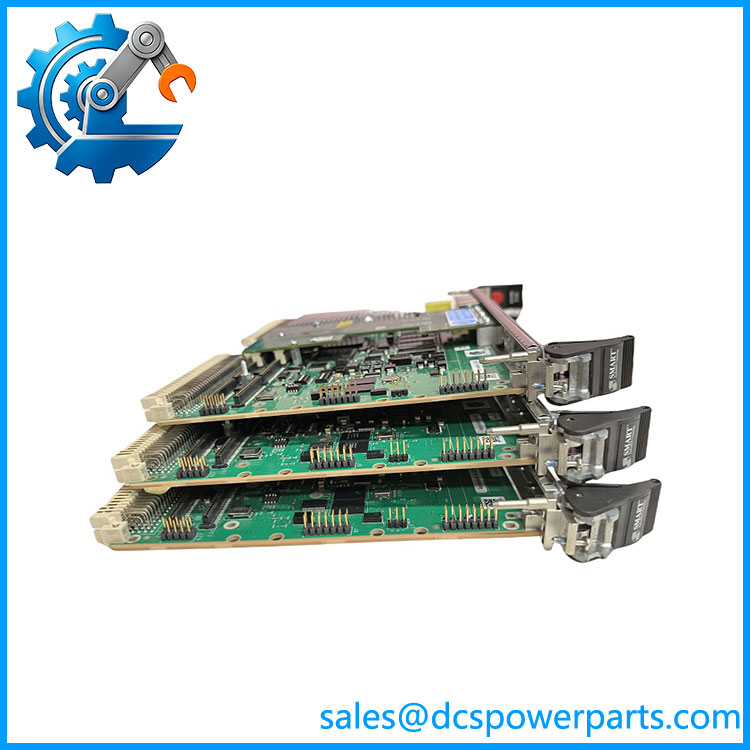

MVME61006E-0163R
Product Overview
-0163R defines standard front panel hardware configuration with fixed memory and firmware layout. This SBC supports the advanced 2eSST high-speed VME bus protocol, delivers low-latency deterministic computing, and can work as VME system master or slave CPU. It is widely deployed in turbomachinery control, hardware-in-the-loop simulation, industrial test equipment and long-lifecycle mission-critical automation racks.Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | MVME61006E-0163R |
| Module Type | 6U VME64x Single Board Computer (SBC) |
| Manufacturer | Motorola / Emerson Embedded Computing |
| Processor | MPC7457 PowerPC, 1.267 GHz, integrated AltiVec coprocessor |
| System Memory | 512 MB ECC DDR SDRAM |
| Onboard Flash | 128 MB Non-volatile Flash Memory |
| VME Bus Interface | VME64x, supports 2eSST protocol, peak bandwidth up to 320 MB/s |
| Front Panel Interfaces | Dual 10/100/1000 Mbps Gigabit Ethernet, Dual RS232 Serial Ports |
| Expansion Slots | 2 × PMC-X Mezzanine Card Slots |
| Nonvolatile Storage | Battery-backed 32KB NVRAM + RTC Real-time Clock |
| Form Factor | Single-width 6U Eurocard, IEEE 1101 standard front panel |
| Power Supply | Powered via VME P1/P2 backplane (+5V, ±12VDC) |
| Operating Temperature | -40℃ ~ +71℃ (Extended Environmental 6E Version) |
| Ambient Humidity | 5%–95% non-condensing |
| Protection Class | IP20 (cabinet internal installation) |
| Supported Operating Systems | VxWorks, Linux, QNX Neutrino |
| Spare Part Status | Original OEM production discontinued; new surplus and refurbished modules available |
Key Features
- High-performance PowerPC processor with AltiVec unit, suitable for signal processing and fast closed-loop control tasks
- ECC error-correcting memory effectively avoids data corruption caused by industrial electromagnetic interference
- 2eSST high-speed VME bus greatly improves inter-module data throughput compared with traditional VME bus
- Dual PMC-X expansion slots allow flexible expansion of reflective memory, fieldbus and analog acquisition daughter boards
- Dual gigabit Ethernet interfaces support redundant network topology to enhance communication reliability
- Built-in hardware watchdog timer and comprehensive self-diagnosis circuit with front panel LED status indicators
- Wide extended temperature design adapts to harsh unattended industrial and power plant environments
- Standardized 6U VME mechanical layout, compatible with mainstream VME rack housings and I/O modules
- Different part number revisions and memory variants cannot be directly interchanged; full part number verification required before replacement
- Stable long-cycle industrial PCB design with anti-vibration performance, ideal for system maintenance and retrofit projects
