MTL CPY-C3-RA141 / CPY-C3-RAI141
Product Introduction
In a Yokogawa control system, the field wiring problem is often not the DCS I/O card itself but the interface between the system card and the isolation hardware. The MTL CPY-C3-RA141, generally documented as CPY-C3-RAI141, is an integrated backplane designed for this interface role. It provides a 16-channel 4–20 mA analog-input arrangement for Yokogawa AAI141/AAI143-series I/O while accommodating MTL4500-series isolators.
The documented CPY-C3-RAI141 arrangement uses 16 MTL4541 or MTL4575 modules and a KS1x2 cable connection, with redundancy identified for the configuration. This makes the unit relevant to CENTUM VP and ProSafe RS installations where intrinsically safe or isolated field interfaces are required. It is important not to substitute another CPY-C3 backplane simply because the connector arrangement appears similar; the I/O card, isolator type, cable architecture, and redundancy arrangement all need to match the original system design.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | CPY-C3-RA141 / documented as -RAI141 |
| Manufacturer / Brand | MTL |
| Product Type | Analog input backplane / interface backplane |
| System Compatibility | Yokogawa CENTUM VP and ProSafe RS integrated solutions |
| Associated Yokogawa I/O | AAI141(-H), AAI143(-H) |
| Analog Input Capacity | 16 channels |
| Input Signal | 4–20 mA |
| Isolation Interface | MTL4500 series |
| Associated MTL Modules | MTL4541 / MTL4575 |
| MTL Module Quantity | 16 |
| Cable | KS1x2 |
| Redundancy | Yes, in the documented -RAI141 configuration |
| Application | Isolated / intrinsically safe analog signal interfacing |
| Installation Role | System-side backplane between Yokogawa I/O and MTL interface modules |
The published MTL interface documentation specifically associates -RAI141 with 16-channel 4–20 mA analog input, MTL4541/4575 modules, KS1x2 cabling, and redundant operation.

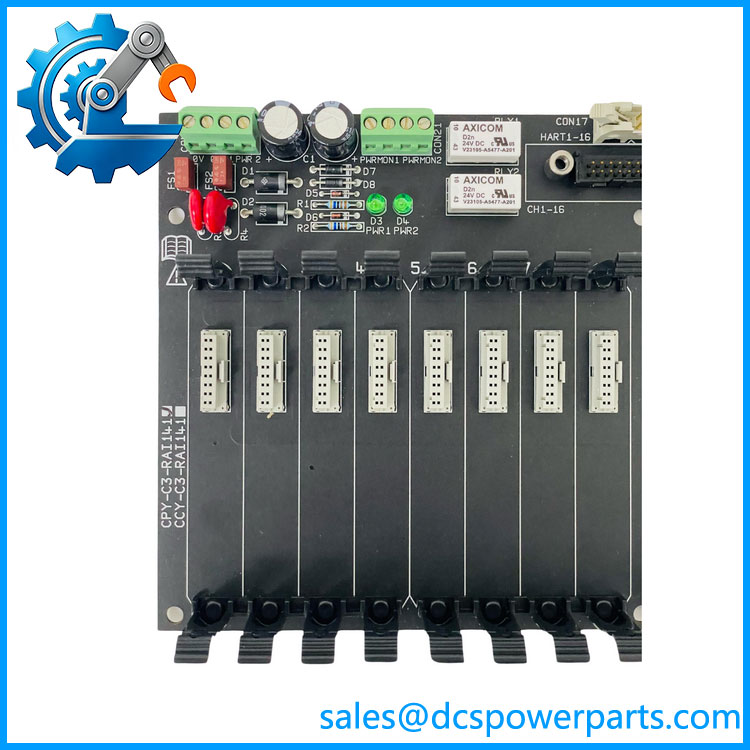

CPY-C3-RA141
Application Scenarios & Field Considerations
1. Yokogawa CENTUM VP analog input systems
configuration is intended for installations using Yokogawa AAI141(-H) or AAI143(-H) analog input modules. It provides the physical interface architecture required to connect those system-side I/O channels to MTL isolation modules.
2. ProSafe RS interface applications
The family is also documented as part of integrated solutions for Yokogawa ProSafe RS. This is useful where field signals require isolation before reaching the control or safety-system I/O architecture.
3. 4–20 mA field instrumentation
The arrangement handles 16 analog-input channels at 4–20 mA. Typical plant signals can include transmitters for pressure, flow, temperature, level, and other process variables, provided the complete Yokogawa/MTL interface configuration supports the particular field device.
4. Redundant interface architecture
The published configuration identifies red. That matters during system design because a non-redundant variant may look physically similar while providing a different interface topology.
Related Products
- MTL -AAI141 — 32-channel 4–20 mA AI arrangement using MTL4544 modules; different channel and isolation architecture.
- MTL -AAI141-HD — 32-channel 4–20 mA configuration with a different MTL module arrangement and four-way cable architecture.
- -H8 — 16-channel 4–20 mA arrangement using eight MTL4544 modules; do not treat it as the same configuration.
- MTL -RAI135/835 — supports AAI135/AAI835 configurations with different AI/AO channel arrangements.
- MTL -RAV141 — 16-channel 1–5 V analog-input interface rather than the 4–20 mA architecture of .
- MTL -AAI841 — mixed 8-channel AI + 8-channel AO configuration.
- MTL -AAI543 — analog-output backplane configuration for AAI543-type applications.
- MTL -ADV161 — digital-input backplane configuration, not an analog-input replacement.
Engineer’s Guide — Field Pitfalls to Avoid
1. Do not overlook the “I” in
This is the first procurement issue I would resolve. The documentation consistently identifies the unit as , while your supplied number is CPY-C3-RA141. A purchasing system may truncate or omit characters, but the manufacturer configuration should be checked against the physical label before ordering.
2. Do not confuse with AAI141
is the Yokogawa I/O module d is the MTL backplane/interface designation. They perform different functions in the signal chain. The backplane is not a replacement for the Yokogawa I/O card.
3. Check the isolator population
The documented configuration uses 16 MTL4541 or MTL4575 modules. Replacing these with another MTL4500-series module solely because it has a similar physical format can change the electrical interface or application characteristics.
4. Verify the cable architecture
The configuration is associated with KS1x2. Cable type and connection arrangement should be checked against the existing cabinet drawings before a replacement is approved. A physically compatible connector does not automatically establish system compatibility.
5. Verify the redundancy arrangement
The published configuration is identified as redundant. If the existing installation uses redundant signal paths, purchasing a visually similar non-redundant variant can create a cabinet-level integration problem even when the Yokogawa I/O card number appears correct.
FAQ
Is -RA141 ?
The available technical documentation uses . -RA141 appears to be an abbreviated or incorrectly entered designation. For procurement, use the physical nameplate and original cabinet documentation to confirm the exact ordering code rather than assuming the two designations are interchangeable.
Wh do?
It is an MTL interface backplane for Yokogawa analog I/O. The documented configuration provides 16 channels of 4–20 mA analog input and interfaces those channels through MTL4500-series isolators.
Which Yokogawa I/O modules are associated with this backplane?
The published interface table lists and AAI143(-H).
Which MTL isolator modules are used?
The documented configuration specifies MTL4541 or MTL4575, with 16 modules in the 16-channel arrangement.
Is this a Yokogawa product?
is documented as an MTL backplane/interface product used with Yokogawa CENTUM VP and ProSafe RS systems. It should not be represented as a Yokogawa-manufactured I/O module.
What should be verified before purchasing a replacement?
At minimum, compare the complete backplane designation, nameplate, Yokogawa I/O card number, MTL isolator type, cable arrangement, redundancy architecture, and cabinet drawings. For a legacy installation, actual hardware revision and connector condition should also be checked. If inventory condition is not independently inspected, verify the actual condition before committing the replacement to a shutdown-critical application.
