MOOG D136-001-007 | 32-bit PowerPC Servo Controller for Precision Hydraulic Systems

MOOG D136-001-007 | 32-bit PowerPC Servo Controller for Precision Hydraulic Systems

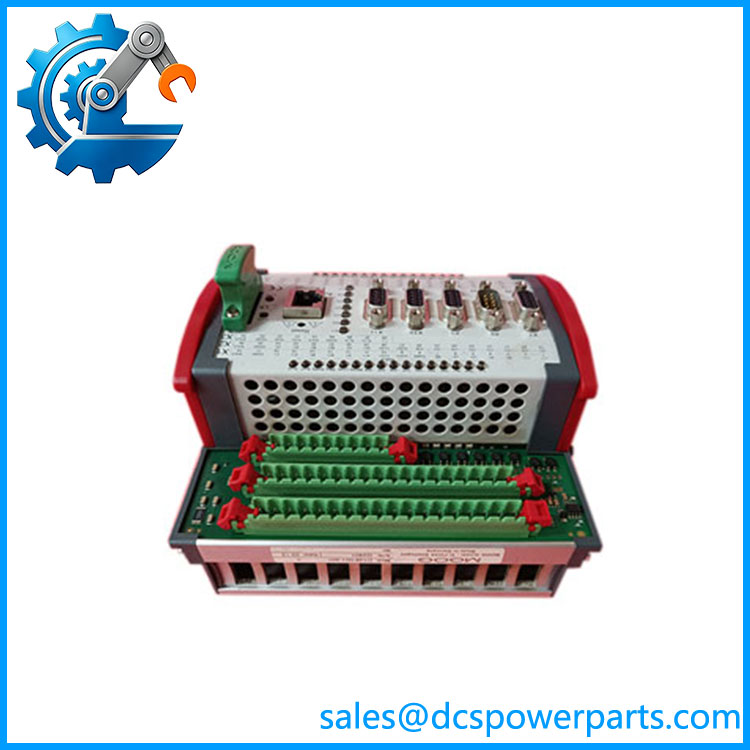

  • Model: D136-001-007
  • Brand: MOOG
  • Series: MSC I Motion Controller / M3000 Motion Control System
  • Core Function: Provides programmable closed-loop control for hydraulic and electric servo systems with position, speed, and force feedback.
  • Product Type: Motion Controller / Servo Control Module
  • Key Specs:
    • 32-bit PowerPC RISC processor with floating-point unit
    • Ethernet, CAN, and PROFIBUS-DP communication interfaces
    • Dual position transducer interfaces for closed-loop motion control
Add To Quote
Category: SKU: MOOG D136-001-007

Description

Key Technical Specifications

Parameter Value
Manufacturer MOOG
Model Number D136-001-007
Product Type MSC I Motion Controller
Product Family M3000 Motion Control System
Processor 32-bit PowerPC RISC processor with floating-point unit
Memory 4 MB Flash EEPROM
Data Retention Typically 10 years
Power Supply 24VDC (18–36VDC)
Analog Inputs 8 channels, 16-bit resolution
Analog Outputs 2 channels, 16-bit resolution
Digital I/O Configurable digital input/output channels
Communication Interfaces 1 × Ethernet, 2 × CAN, 1 × PROFIBUS-DP Slave
Position Feedback 2 × position transducer interfaces
Mounting DIN rail mounting (EN 50022 NS35/7.5)
Protection Rating IP20
Operating Temperature +5°C to +55°C
Dimensions 160 × 170 × 85.5 mm
Application Hydraulic servo control, multi-axis motion systems



Product Introduction



MOOG D136-001-007 Overview

The MOOG D136-001-007 is an MSC I motion controller designed for closed-loop control applications requiring precise coordination of hydraulic or electric servo systems. It combines PLC-style programming capability with motion control functions, handling feedback signals, control calculations, and communication with higher-level automation systems.

The MOOG D136-001-007 is typically used where conventional PLC motion modules are not sufficient, especially in systems requiring synchronized axis control, force regulation, and high-response actuator management. Its built-in Ethernet, CAN, PROFIBUS-DP, and position feedback interfaces allow integration into complex industrial machines.

D136-001-007

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)



Engineering Pain Point

A hydraulic actuator starts oscillating during operation. The command signal looks correct, but the mechanical position does not follow the expected profile. Engineers often begin by checking the valve or hydraulic circuit, yet the actual issue can be incorrect feedback scaling, controller parameters, encoder wiring, or outdated application software.

The MOOG D136-001-007 sits at the center of the closed-loop control chain. A small configuration error can create large machine behavior changes.



Typical Applications

  • Metal Forming Equipment – Closed-loop hydraulic cylinder control for presses, bending machines, and forming systems.
  • Plastic Injection Machinery – Servo hydraulic control for injection pressure, position, and velocity regulation.
  • Aerospace Test Equipment – Actuator control systems requiring accurate force and displacement control.
  • Industrial Test Rigs – Dynamic load simulation and multi-axis motion control platforms.



Technical Pitfalls to Avoid

  1. Verify Application Software and Parameters

    The controller hardware alone does not define system behavior. Confirm MACS application programs, axis parameters, feedback scaling, and tuning values before replacement.

  2. Check Feedback Device Compatibility

    Position transducer wiring and signal type must match the controller configuration. Incorrect feedback polarity or scaling can create unstable closed-loop operation.

  3. Inspect Communication Configuration

    Ethernet, CAN, and PROFIBUS settings are part of the machine architecture. Record network addresses and fieldbus parameters before removing an existing controller.



Related Products

  • MOOG D136-001-008
    Related MSC I motion controller variant. Similar hardware platform but different communication configuration, notably without PROFIBUS-DP Slave interface. Verify application requirements before substitution.
  • MOOG D136-001-006
    Earlier MSC series controller variant. Used in similar motion control applications where system documentation confirms compatibility.
  • MOOG M3000 Series Servo Modules
    Expansion components used with MSC controllers for complete motion control systems. Applicable for systems requiring additional I/O or axis management.
  • MOOG Servo Valves with Feedback Electronics
    Hydraulic control components commonly paired with MSC controllers in closed-loop actuator applications.
  • MOOG Axis Control Software (MACS)
    Engineering software environment used for programming and configuring MOOG motion controllers. Required for application changes and commissioning.
  • MOOG MSD Motion Control System Components
    Related motion system hardware used for synchronized multi-axis applications.
  • MOOG Position Transducer Interfaces
    Feedback components connected to controller channels for displacement measurement and closed-loop positioning.
  • MOOG CAN Interface Components
    Communication accessories used when integrating MSC controllers into distributed motion architectures.
