Description

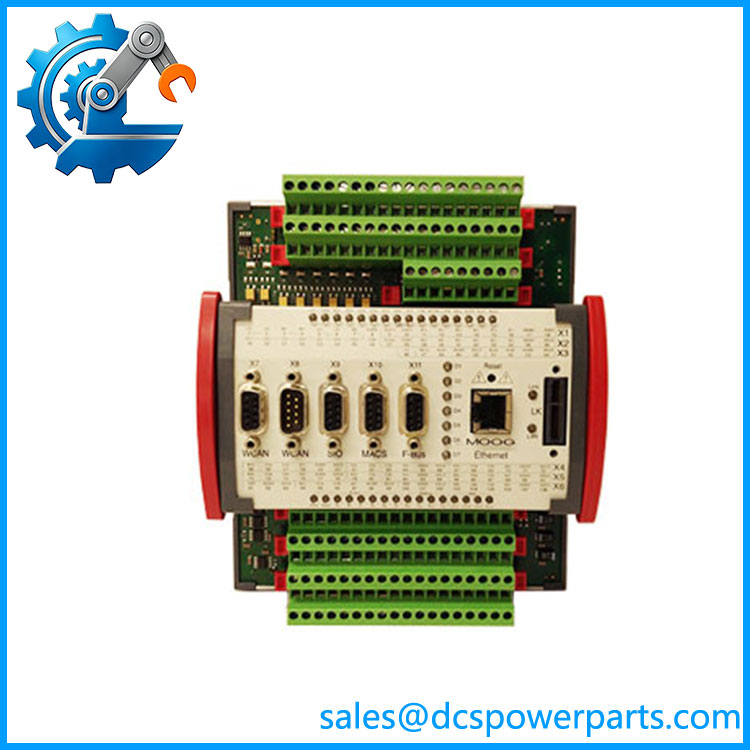

MOOG D136-001-008 | MSC I Motion Controller
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | D136-001-008 |
| Manufacturer | Moog |
| Product Family | M3000 Automation System |
| Controller Family | MSC I Motion Controller |
| Controller Type | Multi-axis motion controller with PLC functionality |
| Processor | 32-bit PowerPC RISC, floating point |
| RAM | 4 MB |
| Flash EEPROM | 4 MB |
| Digital I/O | 8 |
| Digital I/O Configuration | Individually configurable as input or output |
| Analog Inputs | 8 × 16-bit |
| Analog Outputs | 2 × 16-bit |
| Position Transducer Interfaces | 2 |
| CAN Interfaces | 2 independent CAN interfaces |
| Ethernet | 1 × 10Base-T |
| PROFIBUS-DP | Not included |
| Serial Interface | TIA/EIA-232 |
| Extension Bus | E-Bus through Q-connectors |
| Supply Voltage | 24 VDC, 18–36 VDC |
| Idle Current | Approx. 0.5 A |
| Full-Load Current | Approx. 2 A |
| Mounting | NS 35/7.5 DIN rail |
| Dimensions | 160 × 170 × 85.5 mm |
| Operating Temperature | +5°C to +55°C |
| Storage Temperature | −25°C to +70°C |
| Relative Humidity | 10–95%, non-condensing |
| Protection | IP20 |
Moog’s technical documentation confirms the MSC I architecture, including the PowerPC processor, 4 MB Flash, Ethernet, two CAN interfaces, two position-transducer interfaces, 8 configurable digital I/O, and 24 VDC supply.
Product Introduction
The Moog D136-001-008 is an MSC I Motion Controller for the M3000 Automation System. It is designed as a programmable multi-axis controller with PLC functionality, combining motion processing, machine sequencing, analog signal handling, digital I/O, position feedback, and CAN communication within one controller.
The Moog D136-001-008 uses a 32-bit PowerPC RISC processor and provides 4 MB RAM plus 4 MB Flash. Its two position-transducer interfaces and eight 16-bit analog inputs make it suitable for closed-loop motion applications where position, pressure, force, or other process feedback must be processed by the controller.
D136-001-008A
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The main procurement issue with D136-001-008 is avoiding confusion between different Moog controller generations and variants. Current listings sometimes attach EtherCAT, 300 MHz CPU, 64 MB memory, or other specifications to this part, but those claims do not match Moog’s documented MSC I hardware.
Typical Applications
- Hydraulic servo control — closed-loop actuator position, force, or pressure control.
- Multi-axis machinery — coordinated motion and sequencing within the M3000 platform.
- Industrial actuator systems — applications requiring analog feedback and configurable control outputs.
- Legacy M3000 installations — replacement of an existing MSC I controller without changing the complete control architecture.
Technical Pitfalls to Avoid
- Do not confuse D136-001-008 with D136-001-007.
The two are closely related MSC I controllers, but D136-001-007 includes a PROFIBUS-DP slave interface, while does not. - Do not assume EtherCAT is built into this controller.
The documented provides Ethernet and CAN, but the MSC I product table does not list EtherCAT as an integrated interface. EtherCAT belongs to later controller configurations. - Verify the position-feedback hardware.
The controller provides two position-transducer interfaces. The installed feedback technology and application configuration should be checked before replacement rather than assuming any encoder or transducer is interchangeable. - Preserve the M3000 application and license.
Moog documentation states that the MSC controller requires a license key to operate. A replacement controller therefore needs to be considered together with the installed application, configuration, license, and MACS environment.
Related Products
- D136-001-007 — MSC I Motion Controller with PROFIBUS-DP slave interface; closely related but not functionally identical.
- D136-001-001 — earlier MSC configuration; different memory and hardware configuration.
- D136-002-002 — MSC II Motion Controller; later controller architecture.
- D136-002-003 — MSC II configuration with EtherCAT master interface.
- D136-002-005 — MSC II configuration combining PROFIBUS and EtherCAT functions.
- G391-001-001 — MSD Motion Controller for Moog MSD servo-drive applications; different controller family.
- G391-001-002 — MSD Motion Controller with PROFIBUS-DP interface.
Procurement Note
For a replacement, specify the complete part number and verify:
- MSC I hardware family
- 4 MB RAM / 4 MB Flash configuration
- installed M3000/MACS software version
- controller license key
- position-transducer type
- CAN network configuration
- analog I/O assignments
- digital I/O assignments
- E-Bus expansion modules
- terminal-strip configuration
Do not approve a replacement simply because the label says . For an operating machine, the application, feedback configuration, communication topology, and expansion hardware are just as important as the controller itself.
Engineering takeaway: is the standard MSC I Motion Controller; D136-001-007 is the PROFIBUS-DP variant. The verified baseline for is 4 MB RAM, 4 MB Flash, 8 configurable digital I/O, 8 × 16-bit AI, 2 × 16-bit AO, 2 position-transducer interfaces, 2 CAN interfaces, and 1 Ethernet interface.
