Description

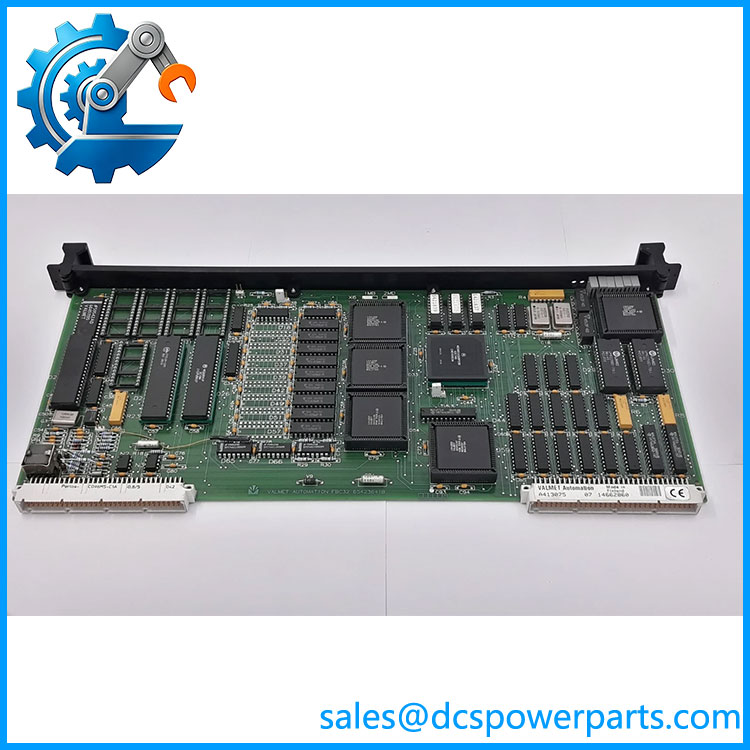

Metso Automation A413075 FBC Fieldbus Controller
Product Introduction
Communication hardware tends to become a maintenance bottleneck long before the rest of a legacy control cabinet is ready for retirement. A failed fieldbus controller can interrupt communication between the control system and distributed process equipment even when the field I/O itself remains electrically healthy. Metso Automation A413075 is identified as an FBC Fieldbus Controller, used within Valmet/Metso automation hardware. Industrial records consistently place it in the controller category rather than describing it as a conventional analog or digital I/O module.
The exact board identification matters. One documented A413075 assembly carries FBC, A413075, 07, 14662860 markings together with FBC32 identifiers, showing why procurement should capture the complete hardware label rather than only the base part number. Public secondary sources also report 24 VDC and a -10 to +55 °C operating range, but those figures should be treated as revision-dependent until confirmed against the installed unit or original documentation.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | A413075 |
| Manufacturer / Brand | Metso Automation / Valmet |
| Product Type | Fieldbus Controller Module |
| Board Designation | FBC |
| System Function | Fieldbus communication/control |
| Application | Legacy Metso/Valmet automation systems |
| Installation | System/rack-specific |
| Known Board Marking | A413075 / FBC |
| Additional Markings Reported | 07 / 14662860; FBC32 65423641A/B |
| Supply Voltage | 24 VDC reported by secondary sources; verify by revision |
| Operating Temperature | -10 to +55 °C reported by secondary sources; verify by revision |
| Communication Details | Verify against installed FBC/FBC32 configuration |
| Product Status | Discontinued / legacy |
Specification caution: Radwell identifies as a discontinued Fieldbus Controller, while other inventory records identify the FBC/FBC32 board markings. Detailed electrical values should not be copied from unrelated A413xxx modules.
Application Scenarios & Pain Points
is primarily a maintenance component for existing Metso/Valmet control installations where the fieldbus architecture remains in operation.
- Legacy DCS communication: Provides fieldbus controller functionality between the control architecture and distributed field equipment.
- Process-plant maintenance: Relevant to older pulp, paper, mining, energy, and process-control installations using Metso/Valmet automation hardware.
- Controller replacement: Used when diagnostics indicate a failed fieldbus controller rather than a defective field instrument.
- Shutdown spare planning: A verified can reduce recovery time when a communication controller fails during an outage.
A413075
Field Note
When a fieldbus segment suddenly disappears, do not immediately replace the . Check the controller diagnostics, network termination, fieldbus power, cabling, and downstream devices first. A shorted segment or damaged field device can make a healthy controller appear defective.
Related Products
The following components are useful when identifying the surrounding Metso/Valmet legacy architecture:
- A413016 — NCU2 circuit board assembly; a different controller/network board.
- A413046 — Central Processing Unit board; processor function rather than fieldbus control.
- A413005 — CPU module with LED indicators; not a direct substitute.
- A413076 — Another FBC Field Bus Controller designation appearing in Metso/Valmet spare-part records; exact compatibility must be verified.
- A413077 — FBC2 PCB driver board; different board designation and function.
- A413313 — VPU power module; power hardware rather than fieldbus control.
- A413143 — BIU-84 binary input hardware; field I/O rather than a fieldbus controller.
- A413187 — AIH8 analog input board; analog acquisition hardware, not a communication-controller replacement.
The common A413xxx prefix is not enough to establish interchangeability. The FBC/FBC32 designation, revision, firmware, rack position, and system generation should all be checked.
Engineer’s Guide — Field Pitfalls to Avoid
1. Do not confuse FBC with a generic communication card
is specifically identified as a Fieldbus Controller. Treating it as a generic communications adapter can lead to an incorrect replacement or incorrect commissioning procedure.
Procurement rule: retain the FBC designation when requesting the replacement.
2. Record every board marking
One documented unit carries together with 07 / 14662860 and FBC32 identifiers.
Before ordering: photograph the complete label and record all secondary numbers, not just “.”
3. Check the fieldbus segment before replacing the controller
A fieldbus controller may report communication failures because of:
- damaged trunk cable,
- incorrect termination,
- missing fieldbus power,
- failed field device,
- wiring polarity problems,
- excessive segment loading.
Practical rule: establish whether the fault is controller-side or segment-side before swapping hardware.
4. Verify firmware and configuration
A replacement FBC may be electrically correct yet unsuitable for the installed system if firmware or configuration requirements differ.
Before installation: document the existing controller revision and configuration, and establish the approved replacement procedure.
5. Do not assume A413076 is interchangeable
Both and A413076 appear in Metso/Valmet fieldbus-controller records, but a similar description does not establish hardware compatibility.
Treat the second part number as an alternative requiring verification, not as a drop-in replacement.
6. Protect the board from ESD
Fieldbus controllers contain electronic circuitry that can be damaged during handling even when no visible physical damage occurs.
Use: grounded ESD handling, conductive packaging, and controlled storage.
7. Verify the condition of legacy inventory
inventory can be offered as new, unused, or refurbished. The supplier’s condition label should not replace functional verification. One current inventory record, for example, offers multiple condition categories for the same discontinued part.
Receiving inspection: verify part number, revision, board markings, connectors, physical condition, and test evidence.
FAQ
What is Metso Automation ?
is a Metso Automation / Valmet FBC Fieldbus Controller used in legacy industrial automation systems. Multiple industrial records identify the part specifically as a Fieldbus Controller.
Is an I/O module?
No. It should not be described as a conventional analog-input or digital-output module. Its documented role is Fieldbus Controller, meaning its primary purpose is associated with fieldbus communication/control rather than direct generic field signal acquisition.
What does FBC mean on ?
FBC refers to the Fieldbus Controller designation. Inventory examples also show markings associated with , which is useful information when matching a physical replacement.
Does operate on 24 VDC?
Secondary industrial records specify 24 VDC, but I would verify the exact board revision before publishing that as an absolute specification. The safest procurement method is to compare the installed unit’s nameplate and system documentation with the replacement.
Is discontinued?
Yes. Industrial inventory records identify as discontinued by the manufacturer. It is therefore a legacy-maintenance component rather than a current-generation controller.
Can A413076 replace ?
Not automatically. Both numbers appear in Metso/Valmet fieldbus-controller records, but the available evidence does not establish them as universal drop-in substitutes. Check hardware revision, firmware, connectors, system generation, and approved compatibility documentation first.
What should I request when buying an ?
Request photographs of the full label, revision/version, FBC/ markings, connectors, and PCB condition. If the unit is used or refurbished, also request functional-test information.
What should be checked when an reports a fieldbus fault?
Start with the fieldbus segment: power, termination, cable continuity, polarity, device status, and network loading. If those checks pass, compare the controller diagnostics and configuration with a known-good state before replacing the FBC.
Is a used suitable as a plant spare?
It can be considered for legacy maintenance, but actual condition should be verified. For a discontinued communication controller, a tested used unit is materially different from an untested surplus board even when both have clean external appearance.
