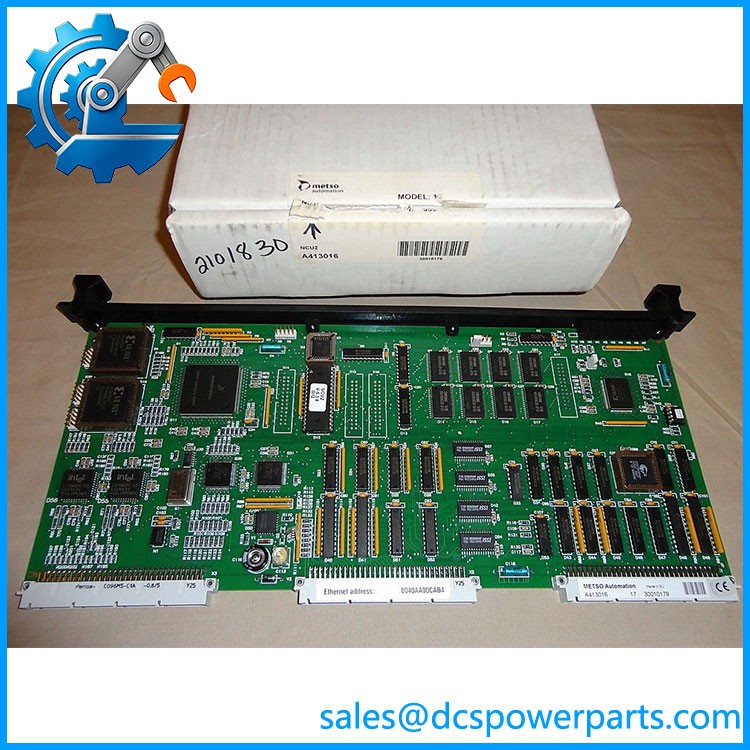

Metso Automation A413016 NCU2 Circuit Board
Product Introduction
A controller fault in an older Metso automation installation does not always point to the main CPU. Network/interface circuitry can produce communication loss, rack-level alarms, or intermittent system behavior that initially looks like a software problem. Metso Automation A413016 is identified as an NCU2 circuit board assembly, with industrial spare-parts records associating the board with Metso/Valmet/Neles Automation systems.
Revision control matters with this part. Documented inventory examples include A413016 Rev. 08 and Rev. 09, while other records identify Ver. 12 hardware. One current industrial listing describes the A413016 NCU2 as a Network I/O Processor. These references establish the board identity, but they do not provide enough reliable information to publish a universal electrical specification for every revision.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | A413016 |
| Manufacturer / Brand | Metso Automation / Valmet Automation |
| Alternate Association | Neles Automation |
| Board Designation | NCU2 |
| Product Type | Circuit Board Assembly / PLC Board |
| System Function | NCU2 control/network interface |
| Revision Examples | Rev. 08, Rev. 09; other versions reported |
| System Application | Legacy Metso/Valmet automation and DCS environments |
| Product Status | Discontinued / legacy |
| Exact Supply Voltage | Verify from installed hardware documentation |
| Exact I/O Configuration | Verify against system configuration |
| Communication Interface | Verify by revision and system documentation |
| Operating Temperature | Verify against applicable hardware documentation |
Important specification note: public records consistently identify the A413016 as an NCU2 board, but the available sources do not provide a sufficiently authoritative common specification for voltage, I/O count, communications protocol, or environmental limits. Those values should not be assumed from another Metso board in the same A413xxx family.
