Meggitt Vibro-Meter IOC4T 200-560-000-113 | VM600 Vibration Monitoring I/O Module

Description

Key Technical Specifications

Product Introduction

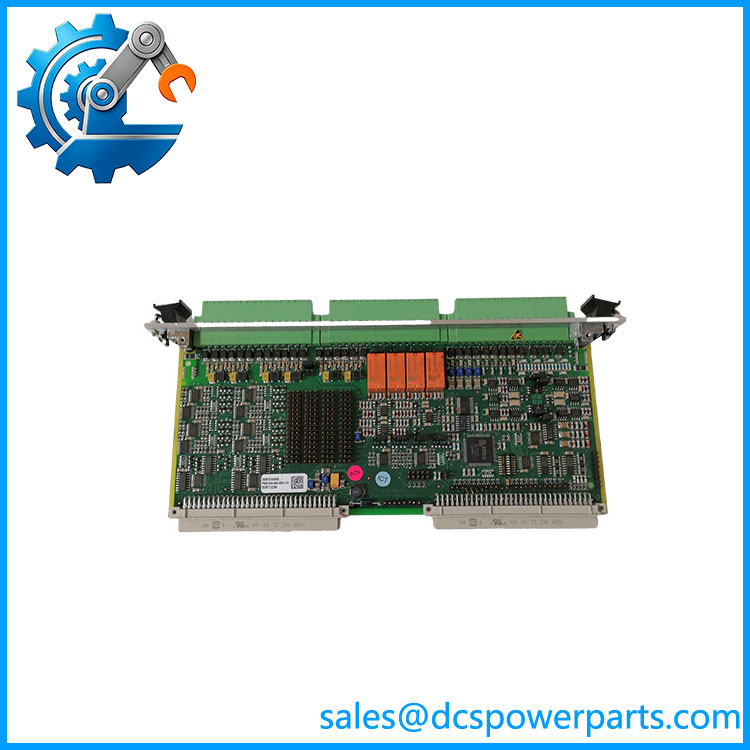

Vibro-Meter VM600 IOC4T 200-560-000-113 Product Introduction

Vibro-Meter VM600 IOC4T 200-560-000-113 is an input/output interface card designed for VM600 machinery protection systems. It provides the connection point between field sensors and the MPC4 protection module, handling vibration-related signals, tachometer inputs, relay alarms, and external control interfaces.

The value of Vibro-Meter VM600 IOC4T 200-560-000-113 is maintaining existing installations where rotating machinery protection depends on stable sensor signal routing. It is commonly installed in turbine, compressor, and large motor monitoring systems. Verify MPC4 compatibility, rack generation, and output impedance requirements before replacement.

200-560-000-113

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A compressor train trips unexpectedly during operation. The vibration probes appear healthy, but the protection rack is not receiving correct signals or the alarm outputs are not reaching the shutdown system. This type of failure is often traced back to interface hardware rather than the primary monitoring processor.

The IOC4T sits between the field wiring and protection logic. Small configuration differences matter.

Typical Applications

• Power Generation – Steam turbine and generator vibration protection systems.
• Oil & Gas – Compressor trains, centrifugal pumps, and rotating equipment shutdown monitoring.
• Petrochemical – Critical process machinery requiring continuous vibration and speed monitoring.
• Industrial Manufacturing – Large motors, fans, blowers, and production equipment condition monitoring.

Technical Pitfalls to Avoid

1. Verify MPC4 Compatibility Before Installation
   The IOC4T 200-560-000-113 is associated with earlier MPC4 configurations using a 2000 Ω buffered output impedance. Later MPC4 revisions may require different interface characteristics. Confirm the mating card revision before replacement.
2. Check Sensor Wiring and Signal Type
   Confirm whether the connected devices are proximity probes, velocity sensors, accelerometers, or tachometer pickups. Incorrect channel assignment can create false vibration readings.
3. Review Relay and Output Mapping
   Alarm relays and open-collector outputs are software-configured. Record existing logic assignments before removing the original module.

Related Products

• Vibro-Meter 200-510-070-113
  Main machinery protection card used with the . Processes vibration, position, and speed measurement signals received through the I/O interface.
• Vibro-Meter 200-510-078-115
  Later hardware revision. Used in newer configurations and may require different IOC compatibility verification.
• Vibro-Meter IOC16T 200-565-000-013
  Expanded I/O card version providing additional signal interface capacity for larger machinery monitoring systems.
• Vibro-Meter RPS6U 200-582-500-013
  rack power supply module. Provides operating power for protection rack assemblies.
• Vibro-Meter CPUM 200-595-033-111
  rack controller module used for system management and communication functions.
• Vibro-Meter IRC4 200-541-000-111
  Relay interface module used for expanding alarm and shutdown output capability.
• Vibro-Meter RLC16 200-510-100-113
  Relay card for systems requiring additional alarm contact outputs.
• Vibro-Meter XIO16T Series
  Expanded input/output interface family used in condition monitoring architectures.
