Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | IS200TBCIH1BBC |
| Manufacturer | General Electric (GE) |
| Series | Mark VI Speedtronic |
| Functional Acronym | TBCI |
| Product Type | Contact Input Terminal Board |
| Input Channels | 24 dry contact inputs |
| Isolation Type | Group isolation |
| Terminal Blocks | Two barrier-type terminal blocks |
| Field Terminals | 48 connection points |
| Input Application | Switches, relays, limit contacts, status devices |
| Excitation Power | DC wetting power supplied to contacts |
| Signal Protection | Noise suppression circuitry |
| Controller Compatibility | Mark VI VTCC/VCRC, Mark VIe PDIA configurations |
| System Redundancy | Simplex, Dual, and TMR capable |
| Installation | Turbine control cabinet terminal interface |
Application Scenarios & Pain Points
A single unreliable contact input can stop an automatic sequence, block a permissive condition, or create a false trip indication. In older turbine cabinets, technicians often spend more time proving the signal path than replacing the field device itself.
Typical applications:
- Gas Turbine Control: Receives discrete signals from pressure switches, valve limit switches, auxiliary equipment contacts, and protection-related devices within Mark VI systems.
- Steam Turbine Automation: Used for equipment status feedback where reliable contact monitoring is required for startup, shutdown, and sequencing logic.
- Generator Auxiliary Systems: Handles dry contact information from breakers, pumps, fans, and supporting mechanical systems.
- Legacy Mark VI Maintenance: Maintains existing turbine control cabinets where replacing the complete I/O architecture is unnecessary.
Field note: A power station reported intermittent auxiliary system alarms during turbine startup. The field switches tested correctly, but the input indication was unstable at the controller. Inspection found aging contact input hardware and terminal connection issues. Replacing the TBCI board restored consistent status feedback.

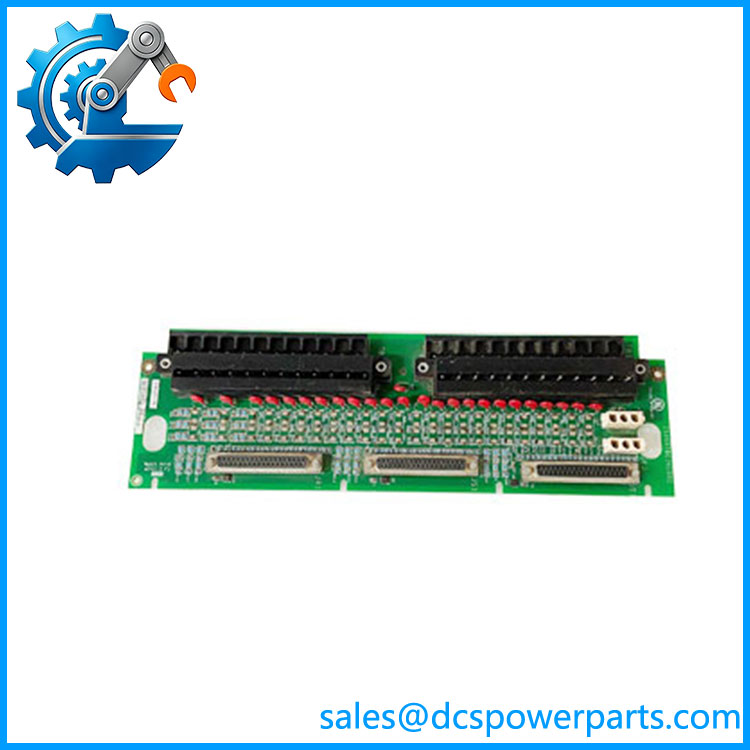

IS200TBCIH1BBC
Related Products
- GE IS200TBCIH1B — Base TBCI contact input terminal board family. Used for similar Mark VI contact input applications; revision matching remains necessary before substitution.
- GE IS200TBCIH1C — Later TBCI revision designed for Mark VIe applications with updated mechanical interface requirements.
- GE IS200TBCIH2B — TBCI variant designed for different contact excitation voltage requirements. Suitable when the field input voltage differs from the H1 configuration.
- GE IS200TBAIH1CCC — Analog terminal board used for analog field measurements rather than discrete contact signals.
- GE IS200TBCIG1B — Related contact input terminal hardware family used in turbine control I/O applications.
- GE IS200TBCAH1B — Analog/contact interface terminal board family for Mark VI systems.
- GE IS200TVIBH2BBB — Vibration terminal board used for rotating equipment monitoring inputs, not general contact status signals.
- GE IS200TPROH1BBB — Protective termination board used for turbine emergency protection signal interfaces.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Incorrect Contact Voltage Selection
TBCI boards are available in versions designed for different excitation voltage ranges. Installing the wrong version can create unreliable inputs or damage the interface circuit.
How to avoid: Confirm the existing board suffix, field excitation voltage, and cabinet drawings before replacement.
⚠️ Terminal Block Wiring Errors
The board handles many discrete signals, and one misplaced conductor can affect turbine permissives or sequencing logic.
How to avoid: Photograph terminal positions, label every wire, and verify point-to-point continuity before power restoration.
⚠️ Mark VI vs Mark VIe Mechanical Compatibility Issues
Some TBCI revisions are electrically similar but differ in mechanical interface details.
How to avoid: Confirm controller platform, I/O pack arrangement, and connector alignment requirements before installation.
Frequently Asked Questions (FAQ)
What is the GE IS200TBCIH1BBC used for?
The GE IS200TBCIH1BBC is a Contact Input Terminal Board used in Mark VI turbine control systems. It accepts dry contact signals from field devices and transfers those signals into the turbine control system.
How many inputs does the IS200TBCIH1BBC support?
The board supports 24 dry contact inputs connected through two barrier-style terminal blocks.
Is the IS200TBCIH1BBC a processor module?
No. It is a terminal interface board. Processing is handled by the connected Mark VI controller hardware or I/O pack.
Can the IS200TBCIH1BBC replace another TBCI board?
Only after checking:
- Complete part number
- Board revision
- Contact excitation voltage
- Terminal wiring
- Mark VI or Mark VIe architecture
Similar TBCI boards may not match every installation.
What symptoms indicate a failing TBCI board?
Common symptoms include:
- Incorrect contact status indication
- Intermittent alarms
- Missing field feedback signals
- Startup sequence failures
- Unstable digital inputs
Does the require software configuration?
The board itself does not contain application logic. However, the connected control database must correctly map the 24 input channels.
Is a refurbished GE suitable for turbine service?
A tested refurbished unit can be suitable when input channels, terminal integrity, connector condition, and compatibility with the installed Mark VI configuration are verified before installation.
