Description

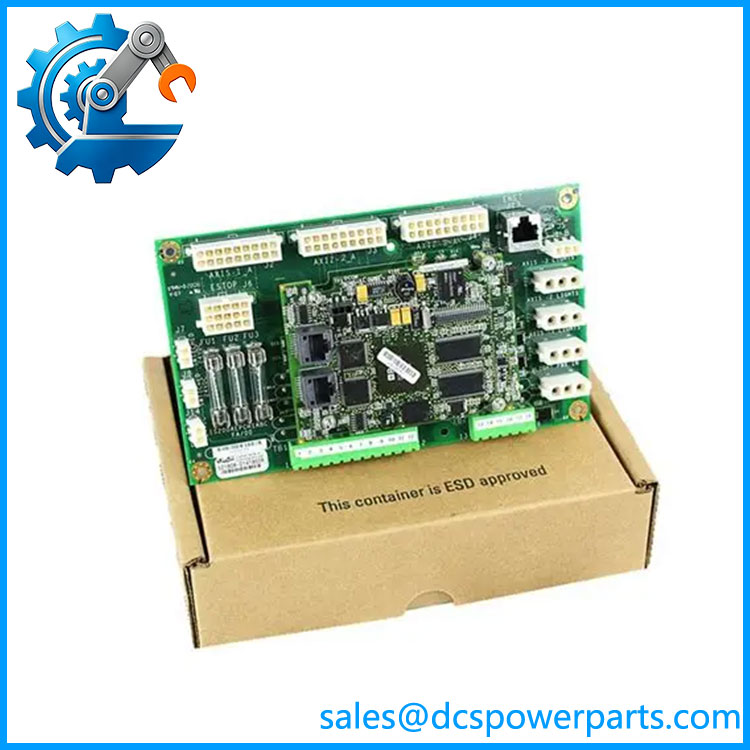

The part numbers IS200AEPCH1ACC and IS215AEPCH1DB represent closely related hardware iterations of a specialized control board module used within General Electric’s industrial and renewable energy automation platforms.
Product Overview
-
Manufacturer: General Electric (GE) / GE Vernova / Emerson
-
Part Numbers:
-
IS200AEPCH1ACC (Base circuit board / card component designation)
-
IS215AEPCH1DB (Fully assembled functional unit / packed version, often superseding earlier “H1A” or “H1C” revisions)
-
-
Component Type: AEPC Wind Pitch Center Control Board / Application Control Processor (ACP)
-
Platform: GE Mark VI / Mark VIe Distributed Control System (DCS) / Mark VIe Wind Power Control Architecture
Key Specifications & Features
-
Primary Function: Acts as the Non-ESS Wind Pitch Center Control Board (AEPC module), responsible for managing the central pitch control systems, communication pathways, and coordinated angle adjustments for wind turbine blades.
-
Processor Integration: Utilizes an integrated internal processor board structure (such as pairing with the BPPC processor architecture) to process real-time control commands and feedback loops.
-
Software Compatibility: Requires configuration and programming via GE’s ControlST software suite (typically version 4.06 or later for the later ‘D’-suffix revisions).
-
Communication & I/O: Features robust onboard networking ports (such as Ethernet support for IONet/UDH integration) and serial communication lines (like RS-422) to tie the pitch center hub securely into the broader turbine controller layout.
Industrial Deployment
-
Applications: Widely deployed across utility-scale wind turbine generation farms running the GE Mark VIe control infrastructure, specifically dedicated to regulating blade pitch mechanisms for optimal power generation and emergency feathering safety.
IS200AEPCH1ACC
Product Overview
Technical Specifications
| Item | Parameter |
|---|---|
| Base PCB Number | IS200AEPCH1ACC |
| Assembly Part Number | IS215AEPCH1DB |
| Module Type | Pitch Application Control Processor (ACP) |
| Manufacturer | GE Vernova (General Electric) |
| Applicable Platform | Mark VIe Speedtronic Control System (Wind Turbine Pitch Control) |
| Core Function | Pitch angle closed-loop control, servo logic computation, channel self-diagnosis, IONet communication, safety interlock protection |
| Communication Interface | Multiple 10/100 Mbps IONet Ethernet Ports |
| Internal Bus | Mark VIe rack backplane interface |
| Supported Redundancy | Compatible with distributed redundant control architecture |
| Engineering Software | ToolboxST |
| Mounting Form | Standard plug-in circuit board for Mark VIe control rack |
| Power Supply | Powered by rack backplane |
| Operating Temperature | -20℃ ~ +70℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Protection Class | IP20 (cabinet internal installation) |
| Front Panel Hardware | Multi-channel connectors, status LED indicators |
| Spare Part Status | Original OEM production discontinued; new surplus and refurbished boards available |
Key Features
- Specially optimized for wind turbine pitch real-time control, supports fast response pitch adjustment under wind speed fluctuation
- Powerful onboard real-time computing unit executes pitch PID regulation, emergency feathering protection and sequence logic
- Multi-channel IONet Ethernet supports redundant network communication to avoid single link communication failure
- Comprehensive hardware self-diagnosis function, capable of detecting circuit abnormality, communication loss and sensor faults
- Front panel LED indicators intuitively display running state, network link and fault alarm information
- Reliable multi-position edge connectors ensure stable interconnection with pitch servo modules and terminal boards
- Industrial-grade anti-vibration PCB design, suitable for continuous operation inside wind turbine nacelle control cabinets
- Strict full part number matching required; different suffix revisions cannot be directly interchanged without program configuration verification
- Perfectly compatible with Mark VIe system architecture, used for wind farm equipment maintenance and retrofit replacement projects
