Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | INDRAMAT / Bosch Rexroth |
| Model | TVD1.3-15-03 |
| Product Type | Servo Drive Power Supply Module |
| Series | TVD 1.3 |
| Input Voltage | 3 × 380–480VAC |
| Input Frequency | 50/60Hz |
| DC Bus Voltage | 320VDC |
| Continuous DC Bus Power | 15kW |
| Peak DC Bus Power | 45kW (0.3s) |
| DC Output Current | 50A DC |
| Control Voltage Output | 24VDC / ±15VDC |
| Regeneration Handling | Internal bleeder circuit |
| Bleeder Continuous Power | 1kW |
| Maximum Regenerated Energy | 60kWs |
| Compatible Drive Families | Indramat TDM, TDA, KDA, DDS series |
| Protection Rating | IP10 |
| Weight | Approx. 11.2kg |
| Mounting | Industrial cabinet installation |
Product Introduction

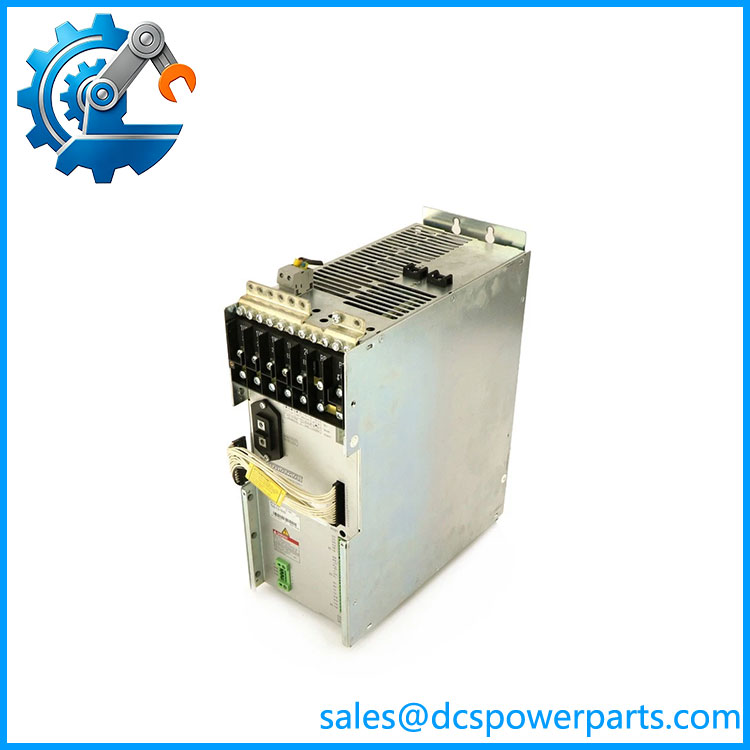

INDRAMAT TVD1.3-15-03 Overview
The INDRAMAT TVD1.3-15-03 is a TVD series power supply module designed for modular Indramat AC servo drive systems. It converts three-phase AC input power into a regulated 320VDC intermediate circuit used by connected drive modules. The unit provides 15kW continuous DC bus power for applications requiring coordinated servo drive operation.
The INDRAMAT TVD1.3-15-03 is commonly installed in CNC machines, production equipment, and multi-axis motion systems. Its value is in maintaining a stable DC bus for multiple servo amplifiers, but replacement requires checking the complete drive configuration, connected modules, and braking requirements before installation.
TVD1.3-15-03
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A CNC machine stops during a production cycle with multiple servo amplifiers showing undervoltage or DC bus faults. The individual drive modules test correctly, but the shared power supply section cannot maintain the required DC bus level.
This is a common failure pattern in modular servo systems. The TVD power supply is the foundation of the drive rack. Aging capacitors, mains issues, cooling problems, or braking circuit faults can interrupt the entire motion system.
Typical Applications
- CNC Machine Tools – Multi-axis servo control for machining centers, lathes, and grinding equipment.
- Automotive Manufacturing – Robot cells, transfer systems, and precision assembly equipment.
- Packaging Machinery – Coordinated motion systems requiring multiple servo axes.
- Industrial Automation Lines – High-speed positioning systems using Indramat TDM/TDA/KDA drive modules.
Technical Pitfalls to Avoid
- Verify DC Bus Compatibility
Confirm that the replacement power supply matches the connected servo drive modules. The TVD1.3-15-03 provides a 320VDC bus; incompatible drive hardware can create startup faults.
- Check Regeneration Requirements
The internal bleeder handles regenerated energy within specified limits. Applications with heavy braking cycles may require additional braking components.
- Inspect Mains Connection Components
The TVD module works with associated mains connection hardware such as NAM modules, chokes, and capacitors. Replacing only the supply unit may not resolve faults caused by upstream components.
Related Products
- INDRAMAT TVD1.3-08-03
Lower power version of the TVD 1.3 family. Provides a 320VDC bus with approximately 7.5kW continuous power for smaller servo systems. - INDRAMAT .2-15-03
Earlier TVD series power supply module with similar 15kW DC bus capacity. Used in older Indramat drive installations. - INDRAMAT NAM1.3-15
Mains connection module designed to work with .3-15-03 systems. Provides associated mains filtering and connection functions. - INDRAMAT TDM Servo Drive Modules
Servo amplifiers commonly powered from TVD DC bus systems. Used for axis control in CNC and automation equipment. - INDRAMAT TDA Servo Drive Modules
High-performance drive modules compatible with modular TVD power supply architectures. - INDRAMAT KDA Servo Drives
Drive modules used in Indramat motion systems requiring centralized DC bus supply. - INDRAMAT DDS Drive System
Modular digital drive platform frequently paired with TVD power supply units. - Bosch Rexroth IndraDrive Systems
Later-generation motion control platform often considered during migration from legacy Indramat TVD-based systems.
