Description

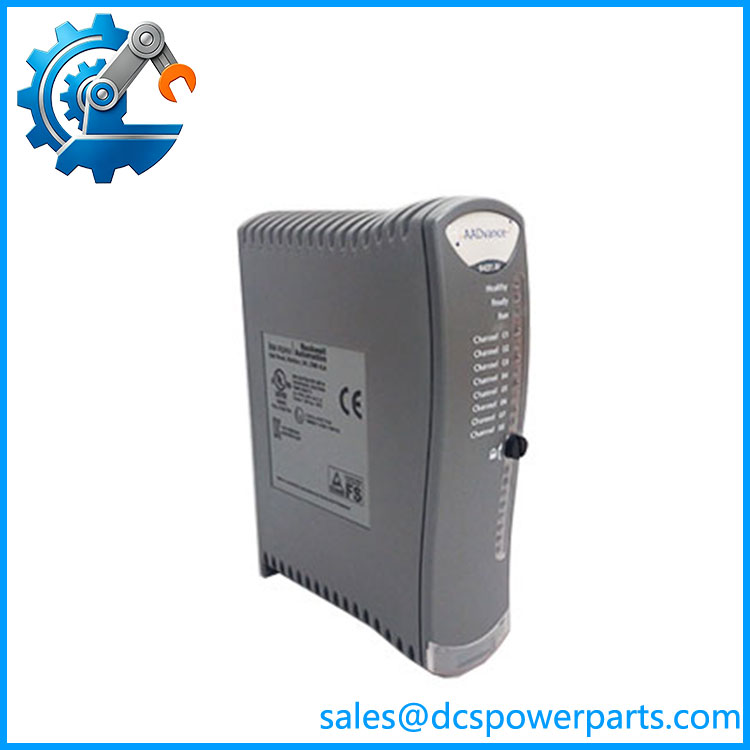

Rockwell ICS Triplex T9431 | AADvance Analog Input Module | 8-Channel Safety I/O
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / ICS Triplex |
| Model | T9431 |
| Product Family | AADvance T9000 |
| Product Type | Isolated Analog Input Module |
| Analog Inputs | 8 |
| Input Type | Current |
| Nominal Input | 4–20 mA DC |
| Maximum Measurement Range | 0–24 mA DC |
| Resolution | 15-bit |
| Least Significant Bit | 0.98 µA |
| Sample Update Interval | 6 ms, no filtering |
| Safety Integrity Level | IEC 61508 SIL 3 |
| Safety Accuracy Limit | 200 µA |
| Module Supply | Redundant +24 VDC nominal |
| Power Dissipation | 3.3 W |
| Channel Isolation | Up to ±1.5 kVDC withstand for 1 minute |
| Input Configuration | 1oo1D, 1oo2D, 2oo3D |
| Weight | Approx. 280 g |
| Dimensions | 166 × 42 × 118 mm |
| Operating Temperature | 0 to 60°C system-dependent |
The AADvance manual identifies T9431 as the 8-channel version of the T9431/T9432 analog-input family; T9432 provides 16 channels. Each T9431 input is isolated and can provide both analog process data and digital state information for monitoring.
Product Introduction
The ICS Triplex T9431 is an eight-channel isolated analog input module for the Rockwell Automation AADvance safety controller platform. It accepts current signals from field transmitters, normally 4–20 mA, and converts them into process data for the AADvance processor. Its architecture is intended for safety-related process monitoring rather than ordinary PLC analog acquisition.
Each channel supports a measurement range extending from 0 to 24 mA, with 15-bit resolution and a 6 ms unfiltered sample-update interval. The module can be deployed in 1oo1D, 1oo2D, or 2oo3D configurations, allowing the overall safety architecture to determine the required fault tolerance.
T9431
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The sits directly in the safety signal path, so a replacement is not simply an eight-channel analog-input substitution. Channel configuration, controller application data, redundancy architecture, termination assemblies, firmware, and HART behavior can all affect commissioning.
Typical Applications
- AADvance safety instrumented systems
- 4–20 mA process transmitter monitoring
- Safety-related pressure, flow, level, and temperature transmitters
- 1oo1D, 1oo2D, and 2oo3D safety input architectures
Technical Pitfalls to Avoid
- Do not confuse with T9432.
provides 8 analog input channels, while T9432 provides 16. They belong to the same analog-input family but are not equivalent channel-count replacements. - Check the termination assembly and system configuration.
modules mate with the appropriate AADvance analog-input termination assemblies. The module configuration should be verified in AADvance Workbench before commissioning. - Pay attention to HART operation.
The supports HART command #03 for collecting field-device information. Rockwell issued a June 2025 product notice stating that /T9432 and related modules can exhibit input-value fluctuations when HART communication is enabled. This is particularly important when troubleshooting an apparently unstable 4–20 mA signal. - Check manufacturing date and product history when troubleshooting older stock.
Rockwell previously issued a product notice covering certain modules manufactured through August 2011 because of potential incorrect manufacturing calibration. The module nameplate and serial-number date code should therefore be checked when evaluating older inventory. - Do not treat SIL 3 as a property of the module alone.
The documentation specifies IEC 61508 SIL 3 capability, but the achieved safety integrity level depends on the complete safety architecture, including the processor, voting configuration, application design, diagnostics, and installation.
Related Products
- T9432 — 16-channel AADvance isolated analog input module; same basic family but double the channel count.
- T9401 — AADvance digital input module for discrete field signals.
- T9402 — 16-channel AADvance digital input module.
- T9451 — AADvance analog output module for current-output applications.
- T9481 — AADvance digital output module.
- T9110 — AADvance processor module; provides the controller-side processing function for the I/O architecture.
- T9831/T9832/T9833 — Analog input termination assemblies associated with the / family.
- T9531 — AADvance Eurocard analog input module, related to the same broader analog-input architecture but a different physical implementation.
Procurement & Replacement Check
Before purchasing or installing an ICS Triplex , verify:
- Exact catalog number:
- 8-channel configuration
- AADvance T9000 system compatibility
- Existing termination assembly
- Application configuration in AADvance Workbench
- Controller and I/O firmware compatibility
- 1oo1D, 1oo2D, or 2oo3D architecture
- Field transmitter current range
- HART enablement and application requirements
- Module manufacturing date/serial number
- Existing safety validation documentation
- Physical condition of the module and terminal assembly
Recommended procurement description:
Rockwell Automation / ICS Triplex AADvance 8-Channel Isolated Analog Input Module, 4–20 mA, 0–24 mA Measurement Range, 15-Bit Resolution, SIL 3-Capable Safety I/O.
The key distinction is that is an AADvance safety-system analog input module, not a conventional general-purpose PLC analog card. For replacement work, match the complete AADvance I/O architecture and safety configuration rather than relying only on the eight-channel count.
