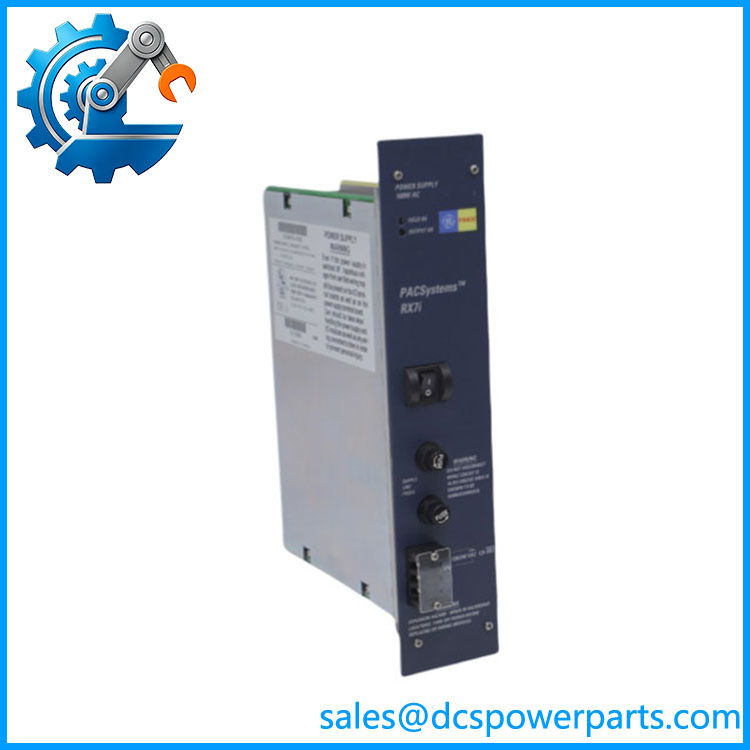

IC698PSA100D RX7i Rack Power Supply Module

IC698PSA100D RX7i Rack Power Supply Module

Model:IC698PSA100D

Brand:GE

Core Function:RX7i Rack Power Supply Module

Condition: New Original (New Surplus) / Factory Sealed

Origin: USA

Delivery time: 3 days

Add To Quote
Category: SKU: IC698PSA100D RX7i

Description

The part number IC698PSA100D refers to an industrial power supply module manufactured by GE Fanuc (later GE Intelligent Platforms, now Emerson Automation).

Product Overview

  • Manufacturer: GE Fanuc / Emerson Automation

  • Part Number / Model: IC698PSA100D

  • Component Type: AC/DC Power Supply Module

  • Platform: PACSystems RX7i Series Programmable Automation Controller (PAC)

Key Specifications & Features

  • Input Voltage Range:

    • AC Input: 85 to 264 VAC (nominal 120/240 VAC), 47 to 63 Hz

    • DC Input: 100 to 150 VDC (nominal 125 VDC)

  • Power Output Capacity: Delivers a maximum continuous total output power of 100 Watts across its multi-voltage rails.

  • Output Voltage Rails:

    • +5.1 VDC: 0 to 20 A (logic power rail)

    • +12 VDC: 0 to 2 A

    • -12 VDC: 0 to 1 A

  • Physical Layout & Mounting: Designed to slide directly into the dedicated leftmost power slot (Slot 0) of an RX7i universal rack backplane.

  • Protection & Diagnostics: Features integrated overcurrent, overvoltage, and overtemperature protection alongside front-panel LED indicators for quick health and status monitoring of output channels.

Industrial Deployment

  • Applications: Widely utilized in large-scale discrete automation, high-end manufacturing lines, energy management, and continuous process control setups running the heavy-duty GE PACSystems RX7i controller infrastructure.

    IC698PSA100D



Product Overview

IC698PSA100D is a rack-mounted power supply module developed by GE Fanuc (GE Intelligent Platforms) for the PACSystems RX7i VME automation platform. It must be installed in Slot 0 (leftmost slot) of the RX7i main rack. This unit converts wide-range alternating or direct current into multiple regulated DC outputs to supply the entire backplane, powering CPU controllers, analog/digital I/O modules and communication boards. It delivers controlled power sequencing and sends AC_FAIL diagnostic signals to the main processor for power-failure alarming. The suffix D represents a specific hardware revision variant of IC698PSA100. It adopts convection cooling without forced fans and supports short-duration power ride-through, widely deployed on critical industrial control and process automation systems.

Technical Specifications

Item Parameter
Part Number IC698PSA100D
Module Type RX7i Rack Power Supply Module
Manufacturer GE Fanuc / GE Intelligent Platforms
Applicable Platform PACSystems RX7i VME Control System
Input Range 85 ~ 264 VAC (45–65 Hz) / 100 ~ 150 VDC
Total Rated Output Power 100 W
Output Channels +5 VDC (Max 20 A)；+12 VDC (Max 2 A)；-12 VDC (Max 1 A)
Cooling Method Natural convection cooling
Mounting Position Slot 0 of RX7i main rack
Front Panel Hardware On/Off logic switch, multi-status LED indicators
Built-in Protections Overvoltage, overcurrent, short-circuit, overtemperature protection
Power Hold-up Supports transient power ride-through for single cycle grid drop
Operating Temperature 0℃ ~ +60℃
Ambient Humidity 5%–95% non-condensing
Protection Class IP20 (cabinet internal installation)
Certification UL, CE industrial safety standard
Spare Part Status Original production discontinued; new surplus and refurbished units available

Key Features

  • Wide universal AC/DC input range, adaptable to diverse global industrial power grid environments
  • Multi-channel regulated DC outputs provide clean and stable power for sensitive VME control hardware
  • Front panel logic on/off switch controls DC output; does not disconnect mains input power
  • Visual LED indicators show field input status, output normal status and fault alarms for quick diagnosis
  • Provides AC_FAIL signal to CPU, enabling early warning and orderly shutdown logic during power loss
  • Supports parallel redundant configuration to eliminate single-point power failure risks for critical racks
  • Multi-layer protection circuits safeguard power module and downstream controller and I/O equipment
  • Convection cooling design reduces cabinet heat accumulation for long-duration continuous operation
  • Strict full part number verification required; different hardware revisions cannot be directly interchanged without validation
  • Standard mechanical layout perfectly matches RX7i rack, ideal for spare replacement and legacy system retrofit

Application Scope

Thermal power plant auxiliary control cabinets, metallurgical production line automation systems, water treatment control panels, large compressor and pump control racks, packaging machinery control systems, and maintenance renovation projects for legacy GE PACSystems RX7i control platforms.
