Description

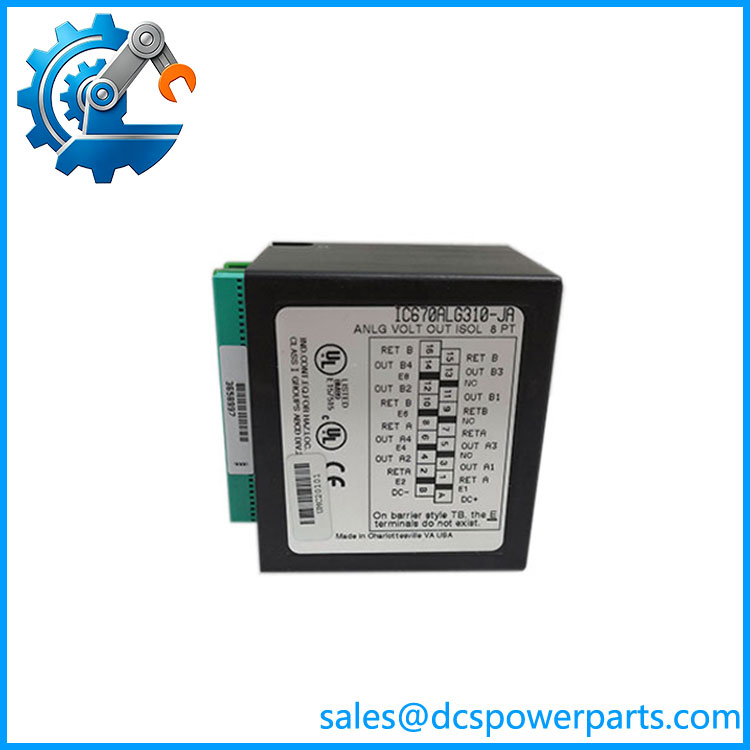

IC670ALG310
The part number IC670ALG310 (often seen with revision or region suffixes like -JA or -LA) refers to an industrial analog output module manufactured by GE Fanuc / Emerson.
Product Overview
-
Manufacturer: GE Fanuc / Emerson (PACSystems / Field Control Series)
-
Part Number / Model: IC670ALG310
-
Component Type: 8-Point Isolated Analog Voltage-Source Output Module
-
Platform: GE Field Control System / RX7i PACSystems architecture
Key Specifications & Features
-
Output Channels: Features 8 single-ended analog output channels, typically arranged in isolated groups to protect against ground loops and electrical interference.
-
Voltage Output Range: Supports a standard configurable output range of -10V to +10V (extended slightly up to -10.25V to +10.25V for calibration/over-range headroom).
-
Resolution: High-precision 14-bit resolution capability, converting digital controller instructions into accurate analog control signals.
-
Diagnostics & Protection: Includes built-in self-diagnostics and status reporting for features such as user power loss, over-range/under-range detection, and module calibration status.
-
Auto-Scaling: Allows operators to configure custom engineering units and scale output parameters directly through system software tools.
Industrial Deployment
-
Applications: Widely used in industrial automation, process control loops, and manufacturing environments to command field actuators, proportional valves, speed controllers, and drives requiring precise analog voltage inputs.
IC670ALG310
Product Overview
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | IC670ALG310 |
| Module Type | Genius Analog Input Module |
| Manufacturer | GE Fanuc (GE Intelligent Platforms) |
| Applicable System | Genius FieldControl Distributed I/O System |
| Channel Count | 8 analog input channels |
| Supported Signal Type | 4–20 mA current signal |
| Resolution | 12-bit |
| Bus Interface | Genius serial field bus |
| Power Supply | External field power supply |
| Installation Method | DIN rail mounting |
| Operating Temperature | 0℃ ~ +60℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Protection Class | IP20 |
| Spare Part Status | Original production discontinued; new surplus and refurbished modules available |
Key Features
- 8-channel 4–20mA analog input for standard industrial transmitter signals
- Built-in channel fault detection for open circuit diagnosis
- Decentralized Genius distributed I/O architecture optimizes field wiring layout
- Supports multi-drop bus connection to realize multi-module networking
- Compact DIN rail mounting structure for easy installation inside local junction boxes
- Onboard LED indicators display power status and channel fault information
- Galvanic isolation between field circuits and internal bus improves anti-interference capability
- Different model variants cannot be directly interchanged; complete part number confirmation required before replacement
- Robust industrial design for long-term continuous operation in factory environments
