Honeywell FE-USI-0002 | Safety Manager FSC Universal Interface Module

Description

Key Technical Specifications

Product Introduction

Honeywell FE-USI-0002 Product Introduction

Honeywell FE-USI-0002 is a Universal Safety Interface Module designed for Honeywell Safety Manager systems. It provides the connection layer between safety controllers and external safety devices, allowing field signals and safety-related equipment to be integrated into a certified safety architecture.

The value of Honeywell FE-USI-0002 is maintaining installed Safety Manager systems where migration would require significant validation work. It is commonly found in process industries requiring emergency shutdown, safety interlock, and protective monitoring functions. Verify Safety Manager software revision and replacement compatibility before installation.

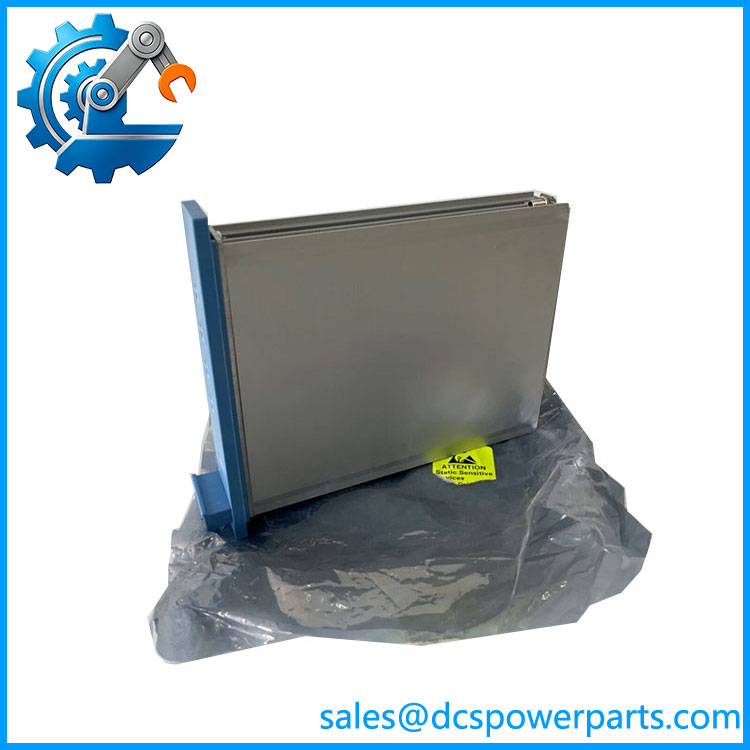

FE-USI-0002

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A refinery emergency shutdown loop fails during maintenance testing. The field switches, transmitters, and final elements check correctly, but the safety controller cannot correctly receive or process external safety signals.

Safety interface modules are often overlooked because they do not execute the main safety logic. However, they are part of the certified signal path. A wrong module revision or software mismatch can prevent a safety system from returning to service.

Typical Applications

• Oil & Gas Facilities – Emergency shutdown systems for compressors, process units, and storage areas.
• Chemical Plants – Safety interlocks, hazardous process monitoring, and shutdown sequences.
• Power Generation – Burner management and auxiliary protection systems.
• Petrochemical Plants – SIS integration between field safety devices and Honeywell Safety Manager controllers.

Technical Pitfalls to Avoid

1. Verify Safety Manager Software Revision
   Replacement modules may require specific Safety Manager releases. Confirm compatibility before installing an alternative module such as FX-USI-0002.
2. Do Not Treat It as a Standard I/O Card
   The FE- is part of a safety-rated architecture. Wiring, diagnostics, and proof-test procedures must follow the approved system design.
3. Document Safety Logic Connections Before Removal
   Record field termination assignments, safety device connections, and diagnostics status before replacing the module. Restoration errors can affect shutdown functions.

Related Products

• Honeywell FX-
  Replacement Universal Safety Interface module for FE-. Designed for pin-to-pin and functional compatibility with earlier USI modules. Verify Safety Manager software release before replacement.
• Honeywell FC-USI-0001
  Earlier Universal Safety Interface module replaced by later USI product generations. Used in previous Safety Manager installations.
• Honeywell FC-
  Previous USI module version from the Safety Manager product family. Replaced by later interface modules.
• Honeywell Safety Manager System
  Safety PLC/SIS platform used for emergency shutdown, fire and gas, and process protection applications.
• Honeywell FSC Safety System
  Earlier Honeywell safety control platform supporting safety-related process applications.
• Honeywell FC-QPP-0002
  Safety Manager processor-related module used in Safety Manager architectures.
• Honeywell FC-RUSIO-3224
  Remote universal safety I/O module used for distributed safety signal acquisition.
• Honeywell FS-SICC-0001
  Safety system communication component used within Honeywell safety architectures.
