Honeywell FC-PUIO01 51454294-176 | Safety Universal I/O Module | Safety Manager SC
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | FC-PUIO01 |
| Part Number | 51454294-176 |
| Product Type | Safety Universal I/O Module |
| Platform | Safety Manager SC |
| Module Designation | SC Safety UIO IOM |
| Supply | 24 VDC |
| Channel Capacity | 32 channels |
| Associated IOTA | FC-TUIO11 |
| System Interconnection | FC-SIC series cable |
| Safety Certification Context | Safety Manager SC SIL 3 architecture |
| Mounting/System Architecture | Honeywell Safety Manager SC cabinet architecture |
The 32-channel designation is supported by Safety Manager SC hardware documentation, which lists FC- as “SC Safety UIO IOM, 24VDC, 32 Channels.” The corresponding IOTA is FC-TUIO11, described as the SC IOTA Safety UIO Redundant assembly.
One important caution: public listings often publish detailed per-channel signal combinations, response times, isolation ratings, and dimensions that are not consistently supported by Honeywell’s accessible documentation. Those values should be checked against the exact Safety Manager SC revision and hardware manual before being used for engineering approval.
Product Introduction
The Honeywell FC- 51454294-176 is a Safety Manager SC Universal Safety I/O module intended for configurable field-signal interfacing in safety-related control architectures. Unlike a conventional fixed-function digital input or analog input card, the UIO concept is intended to accommodate multiple field signal types within the supported Safety Manager SC architecture. Honeywell identifies FC- as a SC Safety UIO IOM, 24 VDC, 32-channel module.
In an actual installation, the FC- should be considered as part of a complete hardware chain rather than as an isolated I/O card. The module works with the appropriate FC-TUIO11 IOTA and Honeywell SIC system-interconnection cabling. Honeywell’s Universal Marshalling documentation specifically lists FC- with the TUIO11 termination assembly and SIC cable arrangement.

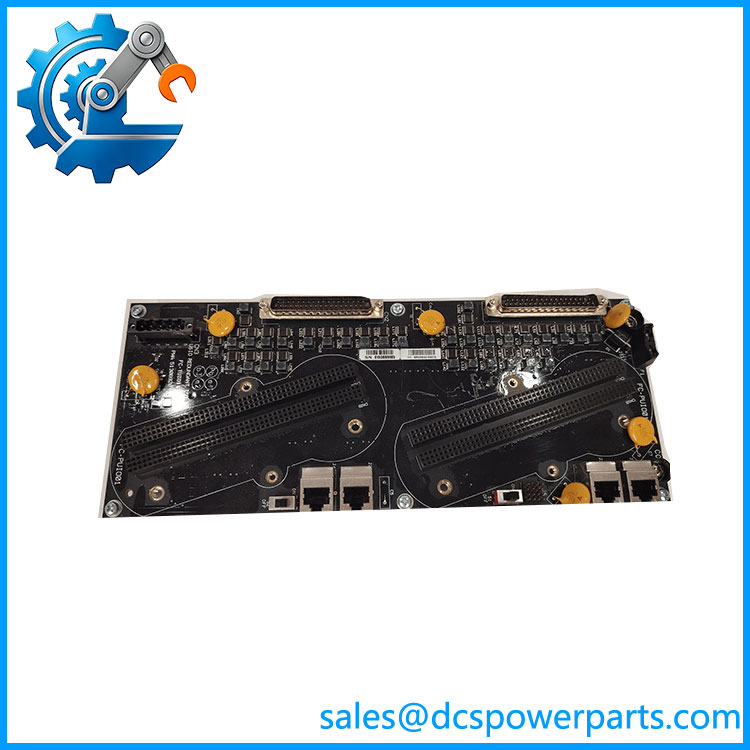

FC-PUIO01
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
The main procurement risk with FC- is confusing the Universal Safety I/O module with its termination hardware. The FC- is the I/O electronics; the FC- provides the corresponding IOTA/termination interface. Replacing one without checking the complete assembly can result in a spare that cannot be installed into the existing cabinet configuration.
Typical Applications
- Safety Manager SC systems requiring configurable safety-related field I/O.
- Emergency Shutdown (ESD) systems where field inputs and outputs are handled through Honeywell’s Safety Manager SC architecture.
- Fire and Gas (F&G) applications using Safety Manager safety I/O.
- Burner Management Systems (BMS) and other process-safety applications.
- Universal Marshalling installations where field wiring is integrated through Honeywell’s UIO architecture.
Honeywell’s documentation explicitly supports FC- within its Universal Marshalling Solution for Safety architecture, while Honeywell safety documentation shows the module in Safety Manager SC configurations.
Technical Pitfalls
1. Do not confuse FC- with FC-PDIO01.
Both are Safety Manager SC I/O modules, but FC-PDIO01 is the Safety DIO IOM, while FC- is the Safety UIO IOM. Honeywell lists them separately in its certified hardware configurations.
2. Confirm the IOTA before ordering.
Honeywell’s UIO architecture associates FC- with . The IOTA and module should be checked together against the installed cabinet configuration.
3. Do not apply generic C300 I/O specifications.
FC- belongs to the Safety Manager SC family. It should not be treated as a standard Experion C300 I/O card simply because both platforms use Honeywell modular I/O hardware.
4. Firmware and safety revision matter.
This is a safety-system component, so module revision is not just a procurement detail. Honeywell’s TÜV revision documentation identifies specific FC- firmware versions and CRCs as part of validated Safety Manager SC configurations.
5. Earth-fault behavior deserves attention.
Honeywell issued a Safety Manager SC technical notification concerning a potential earth-fault condition that could cause frozen analog-input values on FC- modules. For an installed-base replacement, check the applicable Safety Manager SC release, firmware, and Honeywell technical notifications rather than assuming every FC- revision behaves identically.
6. Verify the complete safety loop.
A replacement module does not by itself establish the safety integrity of the final application. I/O configuration, IOTA, field termination, wiring, controller revision, application configuration, and validated safety documentation all need to remain consistent.
Related Products
- Honeywell FC- — Safety UIO IOTA associated with FC-.
- Honeywell FC-PDIO01 — SC Safety DIO IOM; fixed digital I/O architecture rather than the UIO approach.
- Honeywell FC-TDIO11 — IOTA associated with FC-PDIO01.
- Honeywell FC-RUSIO-3224 — Remote Universal Safety I/O module used in the Safety Manager architecture.
- Honeywell FC-IOTA-(N)R24 — IOTA family associated with FC-RUSIO-3224.
- Honeywell FC-SCNT01 — SC S300 Safety Controller used with FC- in documented Safety Manager SC configurations.
- Honeywell FC-SCNT02 — Later Safety Manager SC controller generation and replacement path for FC-SCNT01.
- Honeywell FC-SIC5005–FC-SIC5100 — SIC system-interconnection cable family used to connect Safety Manager SC I/O modules through the applicable IOTA/SCA architecture.
Procurement Note
For a replacement request, specify Honeywell FC-, P/N 51454294-176, SC Safety UIO IOM, 24 VDC, 32 channels. Then verify the installed , SIC cable arrangement, controller revision, and approved Safety Manager SC hardware/firmware revision before substitution. Honeywell’s certification documentation demonstrates that FC- firmware revisions are part of the validated safety configuration, so a visually identical module should not automatically be treated as an engineering-equivalent spare.
