Honeywell 8C-PCNT01 | C300 Controller | Experion PKS Process Control
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 8C-PCNT01 |
| Honeywell Part Number | 51454363-175 |
| Manufacturer | Honeywell |
| Product Type | C300 Process Controller |
| System | Experion PKS Series 8 |
| Controller Platform | C300 |
| Execution Environment | Control Execution Environment (CEE) |
| Configuration Tool | Control Builder |
| I/O Integration | Series 8 I/O |
| Operating Architecture | Non-redundant or redundant configurations |
| Primary Function | Process-control strategy execution |
| Installation | Experion Series 8 control architecture |
Honeywell’s C300 architecture places the controller at the center of the Experion control system. The controller executes configured control strategies, handles control execution, interfaces with I/O, and can operate in redundant arrangements depending on the system design.
Specifications That Should Not Be Assumed
Public listings give conflicting values for processor speed, memory, dimensions, operating temperature, Ethernet/RS-485 interfaces, power consumption, and even the basic product classification. For example, one listing claims 486 MHz/1 GB RAM, while another gives completely different dimensions and memory figures. These figures are not sufficiently verified to publish as OEM specifications.
For an actual replacement, the controller label, complete material number, installed Experion release, firmware revision, controller redundancy arrangement, and associated C300 IOTA/interface hardware should take precedence over reseller-generated specifications.
Product Introduction

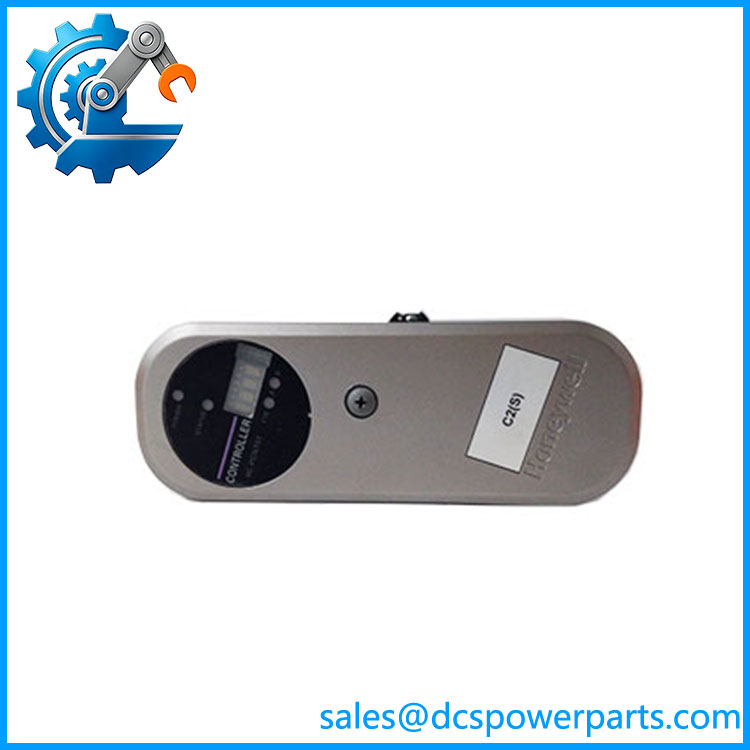

The Honeywell 8C-PCNT01 is a Series 8 C300 process controller used within Honeywell Experion PKS architectures. Its primary responsibility is executing the configured control strategy and maintaining the controller-side relationship with Series 8 I/O. The controller operates through Honeywell’s Control Execution Environment and is configured using Control Builder.
For plant maintenance, the important issue is not simply whether another controller physically fits the installation. Hardware revision, firmware, Experion release, redundancy configuration, and associated I/O hardware must be checked before a controller is placed into service. The similarly named 8C-PCNT02 and 8C-PCNT03 should not be treated as automatic substitutes for 8C-PCNT01.
8C-PCNT01
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
replacement work often fails at the software and configuration level rather than at the physical installation. A controller can power up correctly and still be unsuitable because its firmware or hardware revision does not match the running Experion environment.
Typical Applications
- Process Control: Executes continuous and regulatory control strategies within Experion PKS.
- Series 8 I/O Integration: Provides the controller-side execution and communication path for Series 8 I/O.
- Redundant Control: Used in architectures where controller redundancy is required.
- Plant Interlocks and Sequencing: Executes configured logic, permissives, alarms, and sequence functions.
Technical Pitfalls to Avoid
- Do not buy it as a pulse-counter module.
Several supplier pages classify 8C-PCNT01 as a pulse-counter input device, while other pages call it a digital-output module. Those classifications conflict with the available controller documentation. Treat the controller identification as the primary reference. - Do not assume 8C-PCNT02 or 8C-PCNT03 is a plug-and-play replacement.
The three numbers are associated with controller variants, but hardware revision, firmware requirements, Experion release, and approved replacement paths need to be checked against the installed system. - Preserve the controller configuration.
Before replacement, document the controller identity, redundancy state, firmware, Control Builder project, I/O assignments, and controller database. A hardware swap without configuration recovery can turn a straightforward maintenance job into a control-system commissioning problem. - Verify the complete material number.
The commonly referenced identifier is 8C-PCNT01 / 51454363-175. If the installed label contains an additional suffix, revision, or assembly number, record it before ordering.
Related Products
- 8C-PCNT02 — Related Honeywell Series 8 controller variant; verify firmware and Experion release before substitution.
- 8C-PCNT03 — Later controller variant encountered in replacement projects; compatibility must be confirmed against the installed system.
- 51454363-175 — Material/part number associated with 8C- in available documentation.
- — Controller interface hardware that must be considered when replacing a controller.
- Series 8 I/O — Honeywell I/O architecture interfaced by the controller.
- Control Builder — Honeywell engineering environment used to configure control strategies.
- Experion PKS — Host DCS platform in which the controller operates.
- Redundancy Components — Associated hardware and configuration used where redundant controller operation is implemented.
Procurement Note
For a Honeywell 8C- replacement, specify both 8C- and 51454363-175 where applicable, then verify the installed controller’s hardware revision, firmware, Experion PKS release, redundancy configuration, and interface hardware.
Do not accept a supplier description such as “pulse counter,” “digital output,” or “generic controller” without checking the actual nameplate. The available evidence supports identifying 8C- as a Honeywell Series 8 process controller; several published electrical and performance specifications remain contradictory and should be confirmed from Honeywell documentation or the installed unit before being treated as engineering data.
