Description
The Honeywell 51305072-300 CLCN-B is an LCN communication interface module designed for Honeywell TDC 3000 and TPS distributed control systems. It provides the network interface required for connecting control system nodes to the Honeywell Local Control Network architecture.
The Honeywell 51305072-300 CLCN-B operates within the communication layer of the DCS platform, allowing controllers, operator stations, history modules, and other network devices to exchange system information. It is not a field I/O module; its role is maintaining communication between system components.
The Honeywell 51305072-300 CLCN-B is commonly used in long-service process automation installations where legacy Honeywell systems remain active. Replacement requires verification of LCN configuration, system software compatibility, module revision, and installed network topology.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | CLCN-B |
| Part Number | 51305072-300 |
| Manufacturer | Honeywell |
| Product Family | TDC 3000 / TPS |
| Product Type | Local Control Network Interface Module |
| Network Type | Honeywell Local Control Network (LCN) |
| Primary Function | DCS node communication interface |
| Communication Role | Network message exchange and node connectivity |
| System Compatibility | Honeywell TDC 3000 / TPS |
| Installation | Honeywell card file / control rack |
| Backplane Connection | TDC 3000 internal rack bus |
| Power Supply | Rack supplied DC power |
| Diagnostics | Module status indicators and communication monitoring |
| Configuration | Engineering database dependent |
| Application Area | Oil & gas, chemical, power generation, manufacturing |
| Mounting | Control cabinet rack installation |
Product Introduction
Honeywell 51305072-300 CLCN-B Product Introduction
Honeywell 51305072-300 CLCN-B is a Local Control Network communication interface module used in Honeywell TDC 3000 and TPS process control systems. It provides the communication path required for distributed system components to exchange operational information across the Honeywell LCN network.
The Honeywell 51305072-300 CLCN-B functions as a network infrastructure module within the DCS architecture. While controller modules execute control strategies and I/O modules interface with field instruments, the CLCN-B supports communication between the various parts of the control system.
The Honeywell 51305072-300 CLCN-B enables integration between system nodes such as controllers, operator interfaces, history modules, and engineering stations. Stable LCN communication is essential for maintaining normal system operation because many plant functions depend on continuous data exchange.
The module remains relevant for maintenance of installed Honeywell TDC 3000/TPS systems. Before replacement, engineers should confirm the existing LCN network structure, module revision, slot location, software environment, and related communication settings.

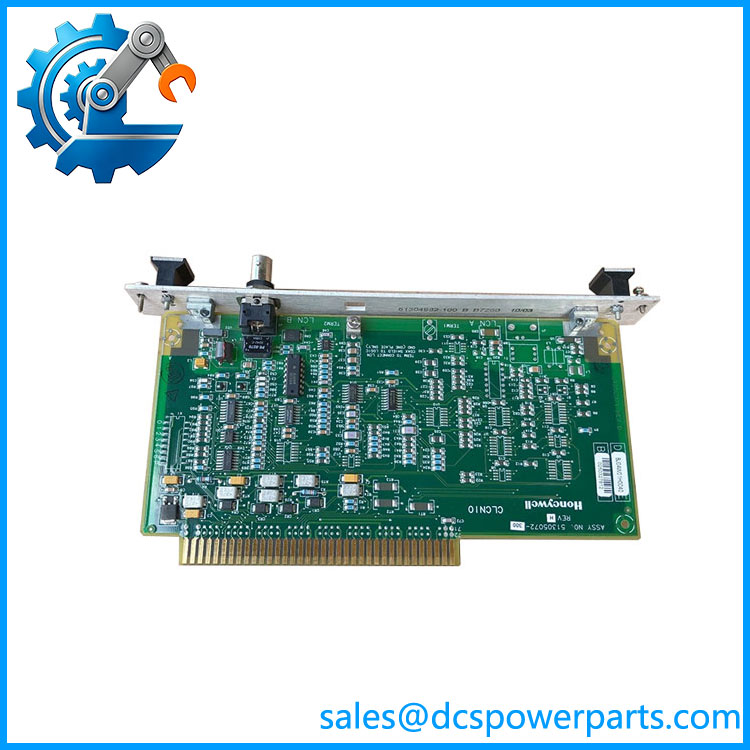

51305072-300 CLCN-B
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A legacy Honeywell DCS experiences communication alarms, missing operator graphics, or intermittent data updates. The control processors may continue running, but communication between system nodes becomes unreliable.
Because LCN modules support system-wide communication, a fault can affect multiple areas and may initially appear to be a controller or software problem.
Typical Applications
Oil & Gas Processing
Used for:
- Refinery control networks
- Process unit communication
- Operator station connectivity
- Plant monitoring systems
Chemical Plants
Applied for:
- Distributed process control
- Batch system communication
- Alarm and event exchange
Power Generation
Used in:
- Boiler control systems
- Turbine auxiliary controls
- Plant information networks
Manufacturing Operations
Applied for:
- Production monitoring
- Legacy automation communication
- Centralized operator systems
Technical Pitfalls to Avoid
1. Verify LCN Configuration
Before installation, check:
- LCN node assignment
- Network topology
- Communication parameters
- Connected system devices
2. Confirm Hardware Compatibility
Review:
- CLCN-B hardware revision
- TDC 3000/TPS software version
- Card rack compatibility
- Related communication modules
3. Inspect Physical Connections
Check:
- Rack connectors
- Module seating
- Backplane condition
- Cabinet power quality
Aging hardware connections can produce communication faults similar to module failure.
4. Preserve System Information
Before removing the existing module:
- Record module location
- Document network settings
- Save configuration information
- Verify replacement setup requirements
