Description

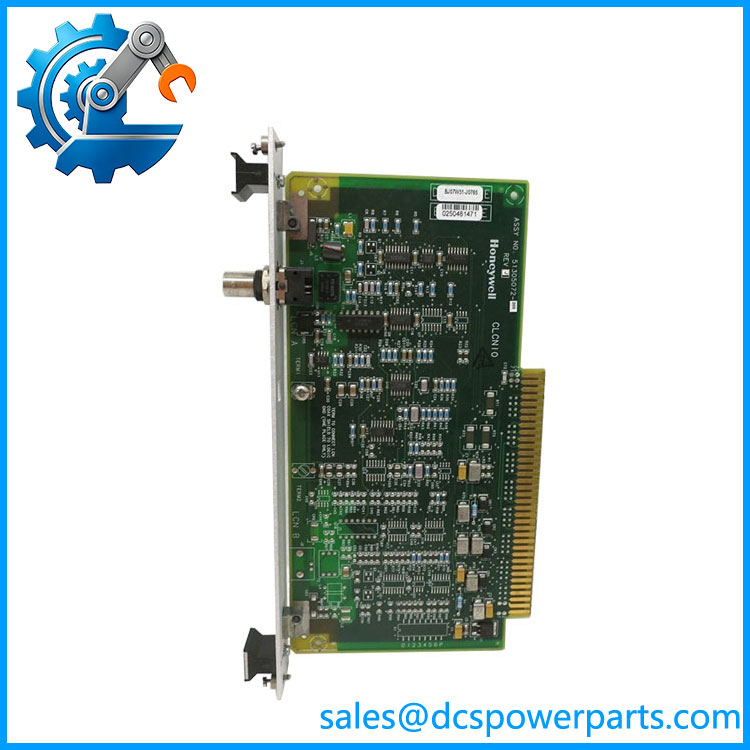

The Honeywell 51305072-200 CLCN-A is a Local Control Network interface module designed for Honeywell TDC 3000 and TPS distributed control systems. It provides the communication interface required for connecting system nodes to the Honeywell LCN network, allowing process controllers, operator stations, and other system components to exchange information.
The Honeywell 51305072-200 CLCN-A operates as a communication infrastructure component within the DCS architecture. It is responsible for maintaining network communication paths rather than performing direct field signal processing or control execution.
The Honeywell 51305072-200 CLCN-A is commonly maintained in legacy process plants where Honeywell TDC 3000/TPS platforms continue supporting production operations. Replacement requires verification of LCN configuration, hardware revision, software compatibility, and associated network settings.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | CLCN-A |
| Part Number | 51305072-200 |
| Manufacturer | Honeywell |
| Product Family | TDC 3000 / TPS |
| Product Type | Local Control Network Interface Module |
| Network Type | Honeywell LCN (Local Control Network) |
| Primary Function | DCS node communication interface |
| Communication Role | Network data exchange |
| System Compatibility | Honeywell TDC 3000 / TPS |
| Installation | Honeywell card file / control rack |
| Backplane Interface | TDC 3000 internal bus |
| Power Supply | Rack supplied DC power |
| Diagnostics | Module status monitoring |
| Configuration | System database dependent |
| Application Area | Refinery, chemical, power, manufacturing |
| Operating Environment | Industrial control cabinet |
Product Introduction
Honeywell 51305072-200 CLCN-A Product Introduction
Honeywell 51305072-200 CLCN-A is a Local Control Network communication interface module used in Honeywell TDC 3000 distributed control systems. It provides the connection between individual control system nodes and the LCN communication network, enabling coordinated operation across the automation platform.
The Honeywell 51305072-200 CLCN-A belongs to the network communication layer of the Honeywell DCS architecture. Unlike I/O modules that connect field instruments or controller modules that execute application logic, the CLCN-A manages communication between system-level components.
The Honeywell 51305072-200 CLCN-A supports data exchange between controllers, operator stations, history modules, and other LCN-connected devices. Reliable operation of this communication layer is essential because many higher-level system functions depend on continuous network availability.
The module is frequently found in long-service industrial installations where TDC 3000 and TPS systems remain in operation. When replacing this hardware, engineers should confirm the installed system revision, LCN node configuration, card slot assignment, and application database compatibility.
51305072-200 CLCN-A
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
Operators report missing process displays, communication alarms, or delayed updates between control areas. Individual controllers may continue operating, but the network layer becomes unstable.
LCN communication modules can affect multiple system functions simultaneously, making fault isolation more complex than a typical I/O module failure.
Typical Applications
Oil & Gas Facilities
Used for:
- Refinery DCS communication
- Process unit coordination
- Operator station connectivity
- Plant monitoring systems
Chemical Processing
Applied for:
- Distributed control networks
- Batch process communication
- Alarm and event handling
Power Generation
Used in:
- Boiler control systems
- Turbine auxiliary systems
- Plant-wide monitoring
Manufacturing Plants
Applied for:
- Continuous process automation
- Legacy control system communication
- Production monitoring networks
Technical Pitfalls to Avoid
1. Verify LCN Network Settings
Before replacement, confirm:
- Node address
- Network assignment
- Communication parameters
- Connected LCN devices
2. Check Hardware Revision Compatibility
Verify:
- CLCN-A revision
- TDC 3000/TPS software level
- Associated communication modules
- Rack configuration
3. Inspect Rack and Backplane
Communication failures may be caused by:
- Loose module seating
- Aging connectors
- Rack power problems
- Backplane contact issues
4. Document Existing Configuration
Before removing the module:
- Record slot position
- Save system configuration data
- Document network connections
- Verify replacement module settings
