Honeywell 51304516-250 | STIM IOP | Smart Transmitter Interface for TDC 3000

Description

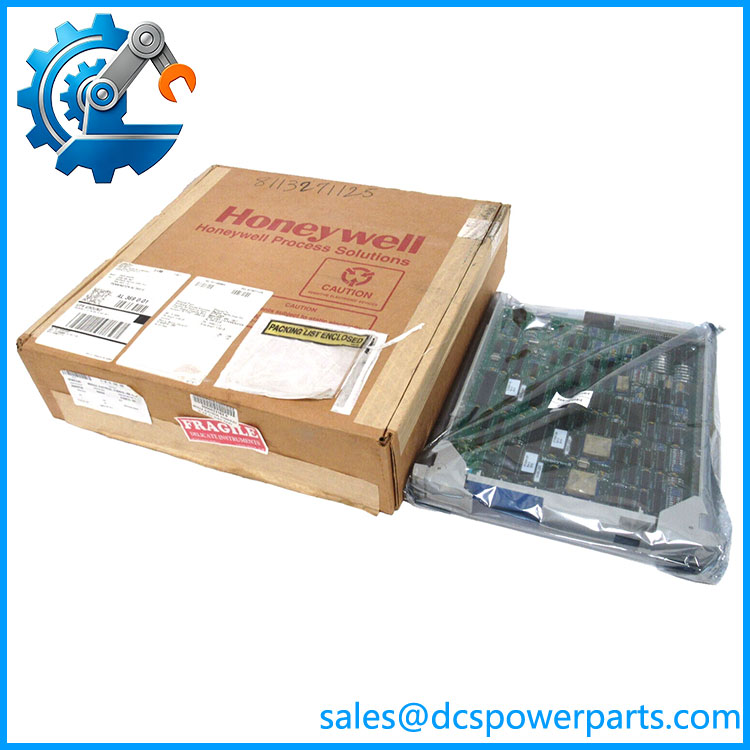

Honeywell 51304516-250 MC-PSTX03 Smart Transmitter Interface Multivariable IOP

Key Technical Specifications

The published Honeywell IOP table identifies 51304516-250 specifically as the CE-compliant MC-PSTX03 STIM IOP. Available technical records confirm 16 inputs, configurable single-ended/differential input arrangement, redundancy support, and compatibility with several TAIH and TSTX termination assemblies.

Product Introduction

The Honeywell 51304516-250 MC-PSTX03 is a Smart Transmitter Interface Multivariable I/O processor used in Honeywell legacy process-control architectures. It provides the interface between smart field transmitters and the DCS I/O system, supporting up to 16 input channels. Unlike a conventional high-level analog input processor, the STIM architecture is intended to handle transmitter information beyond a simple analog process value.

The -250 suffix is significant because it identifies the CE-compliant, conformally coated MC-PSTX03 version. Honeywell’s I/O documentation separates this part from the non-CE STI/STIM variants and assigns it to the STIM category. For replacement work, the IOP part number alone is not enough; the associated FTA, transmitter type, card-file architecture, redundancy arrangement, and existing system configuration should also be checked.

51304516-250

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

The common mistake with the MC-PSTX03 is treating it like a standard 16-channel analog input card. Its purpose is specifically tied to smart-transmitter interfacing and the Honeywell IOP/FTA architecture. A replacement can physically fit the card file and still be wrong if the installed field termination assembly or transmitter communication method does not match the STIM configuration.

Typical Applications

• Smart transmitter integration: Interfaces compatible Honeywell smart transmitters with the DCS.
• Multivariable transmitters: Handles transmitter architectures where several process variables are communicated through a single field device.
• Legacy TDC 3000 process control: Maintains existing smart-transmitter I/O without redesigning the field instrumentation architecture.
• Redundant I/O installations: Supports redundant STIM arrangements where the system architecture requires continued transmitter interface availability.

Technical Pitfalls to Avoid

1. Do not confuse MC- with MC-PSTX02.
   MC-PSTX02 is the STI IOP, while MC- is the STIM multivariable IOP. They belong to related but different transmitter-interface functions. Honeywell’s I/O table lists them separately.
2. Verify the FTA before replacing the IOP.
   Published compatibility information lists TAIH and TSTX families for the MC-. The exact FTA should be checked against the installed transmitter wiring and termination architecture.
3. Do not assume every 4–20 mA transmitter is automatically equivalent.
   The STIM architecture supports Honeywell digital-enhanced protocol as well as single-variable and multivariable transmitter configurations. The communication requirements need to match the field instrument.
4. Check the CE/coating suffix.
   51304516-250 is the CE-compliant MC- designation. Honeywell’s IOP table shows different part numbers for other STIM/related configurations. Do not substitute solely by model name.
5. Confirm redundancy configuration.
   Redundancy is supported, but the IOP must be considered together with the corresponding card-file, FTA, wiring, and system configuration. A simplex installation and a redundant installation cannot be treated as identical replacement jobs.
6. Check hardware and firmware revision on legacy installations.
   Secondary inventory records identify examples of 51304516-250 units with specific hardware and firmware revisions. Those markings are useful during replacement because older Honeywell installations can contain multiple revision levels under the same base part number.

Related Products

• MC-PSTX02 / 51304516-150 — Smart Transmitter Interface IOP for conventional STI applications; different from the multivariable MC-.
• MU- / 51304516-200 — CE version of the STIM IOP in the MU-series architecture; verify the card-file and termination arrangement before considering it as an alternative.
• MC-TAIH02 — Compatible Honeywell smart-transmitter FTA family member for the MC- architecture.
• MC-TAIH12 — Another TAIH termination assembly associated with the MC- STIM IOP.
• MC-TAIH22 — Smart-transmitter FTA option for compatible MC- installations.
• MC-TAIH52 — Additional compatible TAIH termination assembly.
• MC-TAIH62 — Another compatible smart-transmitter FTA configuration.
• MC-TSTX03 — Transmitter-specific FTA associated with the STIM architecture.
• MC-TSTX13 — Another transmitter termination option for compatible MC- installations.
• MC-PAIH03 / 51304754-150 — 16-channel high-level analog input IOP; it serves a different signal architecture and should not be substituted for MC- simply because both provide 16 inputs.

Procurement Note

For a replacement, specify the complete Honeywell 51304516-250 / MC- designation and verify the hardware revision, firmware revision, associated FTA, transmitter model/type, card-file location, and redundancy arrangement.

The critical procurement distinction is that 51304516-250 is a STIM multivariable IOP, not a generic 16-channel analog input card. The associated FTA and transmitter communication architecture are part of the compatibility check. Honeywell’s published I/O documentation supports the 16-channel STIM classification and identifies the compatible FTA families; detailed electrical limits should be taken from the applicable Honeywell system documentation rather than from generic reseller listings.
