Description

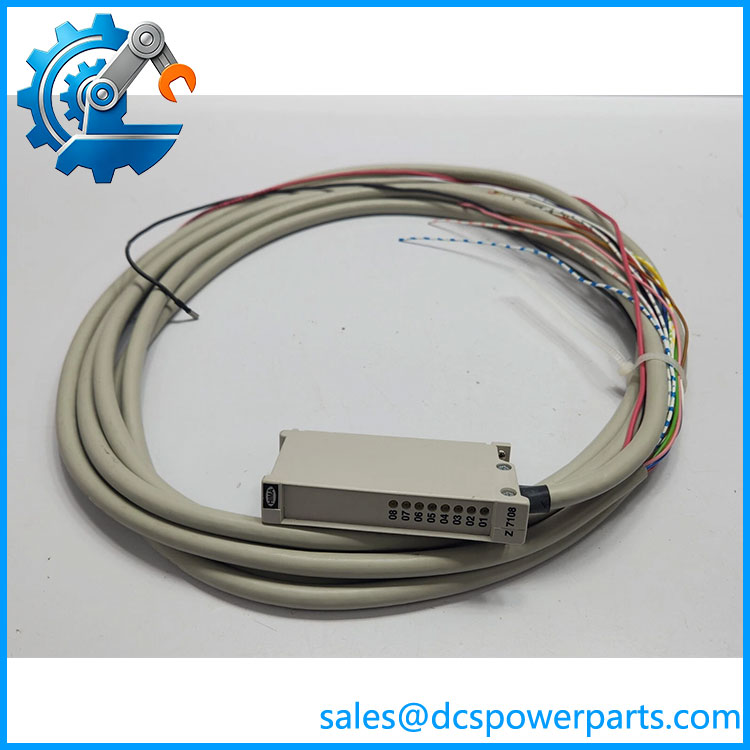

HIMA Z7108 Lead Marking Cable Plug
Product Introduction
A safety input module is only as useful as its field termination. HIMA Z7108 is the lead-marking cable-plug interface associated with the F3237 8-channel safety-related input module. HIMA’s F3237 documentation explicitly shows the Z7108/3237 front cable plug with channel positions 01 through 08, providing the physical connection between the module and its field wiring.
The F3237 is intended for safety-related proximity switches, NAMUR proximity switches according to DIN 19234, and resistor-wired sensors. Different Z7108/3237 versions are used for standard and redundant wiring arrangements, while C5 and C8 versions indicate different factory-wired cable lengths. A documented Z7108/3237/C5 version uses a 5 m cable.
Key Technical Specifications
| Parameter | HIMA Z7108 |
|---|---|
| Product Model | |
| Manufacturer | HIMA |
| Product Type | Lead-marking / LED cable plug |
| Associated Module | F3237 |
| Associated Module Type | 8-channel safety-related input module |
| Primary Interface | Front cable plug |
| Input Application | Proximity switches, NAMUR sensors, resistor-wired sensors |
| Number of Associated Channels | 8 |
| Typical Configuration | /3237/C.. |
| Documented Cable Variant | /3237/C5 |
| C5 Cable Length | 5 m |
| Other Documented Length | C8 = 8 m |
| Redundant Version | /3237/C../R |
| NAMUR Special Versions | /3237/W/R1/S209 and /3237/Cx/R2/S209 |
| Associated Module Space | 4 TE |
| F3237 Supply Data | 5 VDC / 90 mA; 24 VDC / 170 mA |
| F3237 Switching Time | Approx. 10 ms |
| Line Monitoring | Short circuit and wire break |
The supply current, switching time, line impedance, and sensor operating points in the table are module specifications, not electrical ratings of the passive cable plug itself. The documentation specifies an 8.2 V sensor supply, ≤50 Ω line impedance, and a maximum line length of 1000 m using 0.5 mm² conductors.
Major Features and Advantages
Dedicated Interface
The most important characteristic of is its direct association with the . The HIMA technical drawing shows the cable plug on the front of the eight-channel input module, with individual connections corresponding to channels 1 through 8. This makes a purpose-built interface rather than a generic terminal connector.
Z7108
Eight-Channel Field Wiring
The associated provides eight safety-related input channels. The cable plug carries the individual field connections into the module, allowing the installed wiring to remain organized around the module’s defined channel structure.
For a maintenance team, that is more significant than it may appear. Rebuilding a multi-channel safety connector manually can introduce swapped channels, incorrect termination, or loss of line-monitoring components. Matching the original cable assembly reduces that risk.
Proximity and NAMUR Applications
The is designed for safety-related proximity switches and NAMUR devices conforming to DIN 19234. The module monitors sensor lines for both wire break and short circuit, making it suitable for safety-related discrete sensing applications.
Special configurations exist for redundant proximity-switch arrangements and NAMUR applications. HIMA documentation specifies dedicated resistor arrangements for these versions, so a standard cable should not be assumed equivalent to a special NAMUR or redundant assembly.
LED / Diagnostic Interface
The family is commonly identified as an LED cable plug. The documentation shows the associated input channels and wiring arrangement, while the module itself performs the relevant input diagnostics. One important detail: the documentation states that its LED functions are not tested as part of the module’s automatic diagnostic routines.
Multiple Cable Configurations
is not necessarily a complete procurement designation by itself. Documented assemblies include /3237/C5 and /3237/C8, while HIMA documentation also identifies redundant and special NAMUR versions.
This is why the complete suffix should be captured from the existing installation before ordering.
Application Scenarios & Field Pain Points
The is primarily relevant to legacy HIMA safety installations using input modules.
- Safety-related proximity sensing: Connects field proximity switches to the input channels.
- NAMUR sensor circuits: Supports the dedicated cable configurations used with NAMUR proximity switches.
- Machine position monitoring: Useful where proximity sensors provide safety-related position or movement feedback.
- Process safety interlocks: The can monitor discrete field conditions while checking for line faults.
- Brownfield maintenance: A correctly configured cable assembly can replace damaged field wiring without redesigning the original interface.
A recurring maintenance problem is ordering simply when the installed component is actually something like /3237/C5, /3237/C8, or a redundant/special NAMUR configuration. Those are not interchangeable descriptions.
Related Products
- — 8-channel safety-related input module directly associated with .
- /3237/C5 — LED cable plug with 5 m cable.
- /3237/C8 — LED cable plug with 8 m cable.
- /3237/C../R — cable-plug configuration for redundant safety-related proximity-switch connection.
- /3237/W/R1/S209 — special configuration for redundant NAMUR proximity switches.
- /3237/Cx/R2/S209 — another special NAMUR configuration documented by HIMA.
- Z7204 — construction/test plug associated with the documentation.
- Z7116/3236/C5 — related HIMA LED cable-plug assembly for a different input-module interface; do not treat it as a direct replacement.
Engineer’s Guide — Field Pitfalls to Avoid
1. Do not describe as the input module.
is the cable-plug/interface designation. is the actual 8-channel safety-related input module.
2. Match the complete suffix.
A C5 assembly and C8 assembly have different cable lengths. The difference is not cosmetic when the existing cabinet wiring has been cut to a defined length.
3. Check for redundant wiring.
HIMA documents a specific /3237/C../R arrangement for redundant safety-related proximity switches. A standard cable plug should not be substituted without reviewing the safety wiring diagram.
4. Pay particular attention to NAMUR versions.
Special configurations use additional resistors for NAMUR applications. HIMA documentation specifically identifies 390 Ω and 681 Ω resistor arrangements. Replacing a special cable with a standard cable can therefore alter the electrical characteristics of the input circuit.
5. Do not confuse cable-plug specifications with module specifications.
The 8.2 V sensor supply, 10 ms switching time, 50 Ω line impedance, and 1000 m maximum line length belong to the input system. They should not be presented as generic ratings of itself.
6. Verify the channel markings before commissioning.
The wiring documentation assigns individual connector positions to channels 1 through 8. A connector installed with shifted or crossed conductors can create a wiring problem that is not obvious from a simple continuity check.
FAQ
What is HIMA ?
HIMA is a lead-marking cable plug associated with the safety-related input module. It provides the front cable interface for the module’s eight field input channels.
Is an I/O module?
No. The is the 8-channel safety-related input module. is the associated cable-plug/interface assembly. Some reseller databases incorrectly classify as an I/O module, but the HIMA documentation distinguishes the two.
What is /3237/C5?
It is a configured cable-plug assembly for the , documented with a 5 m factory-wired cable.
What sensors are associated with the / interface?
The is designed for safety-related proximity switches, NAMUR proximity switches, and resistor-wired sensors. It also provides line monitoring for short circuit and wire break.
Is suitable for redundant proximity switches?
Specific /3237 redundant configurations are documented, including /3237/C../R and special NAMUR versions. The standard designation alone does not identify whether the required redundant circuitry is present.
Can /3237/C5 be replaced by /3237/C8?
They share the same basic /3237 interface, but the documented cable lengths differ—C5 is 5 m and C8 is 8 m. For a maintenance replacement, match the installed cable length and complete configuration rather than substituting solely on the base number.
What should be verified before purchasing HIMA ?
Check the complete part number, module version, cable length, standard versus redundant configuration, NAMUR/special resistor configuration, connector condition, and installed wiring diagram. For safety-system maintenance, the complete configuration is more important than the base number.
