Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Model | V7768-320000 |
| Part Number | 350-9301007768-320000A0 |
| Product Type | VME Single Board Computer |
| Bus Standard | VME64x |
| Processor | Intel Core 2 Duo up to 2.16 GHz |
| Alternate Processor | Intel Celeron M up to 1.07 GHz |
| Cache | Up to 4 MB L2 Cache |
| System Bus | 667 MHz (Core 2 Duo configuration) |
| Memory | Up to 2 GB DDR2 SDRAM |
| Storage Interface | CompactFlash |
| Maximum Storage | Up to 8 GB bootable CompactFlash |
| PMC Expansion | One PCI-X PMC slot |
| Ethernet Interface | 2 × Gigabit Ethernet |
| Serial Ports | 2 × Serial interfaces |
| USB Ports | 4 × USB 2.0 |
| SATA Interface | 2 × SATA |
| Operating System Support | Windows XP, VxWorks, Linux |
| Front Panel Interface | Ethernet, USB, Serial, PS/2 |
| Mounting | VME rack slot |
| Board Format | Dual-slot VME SBC |
| Application | Industrial embedded computing and real-time control |
Product Introduction

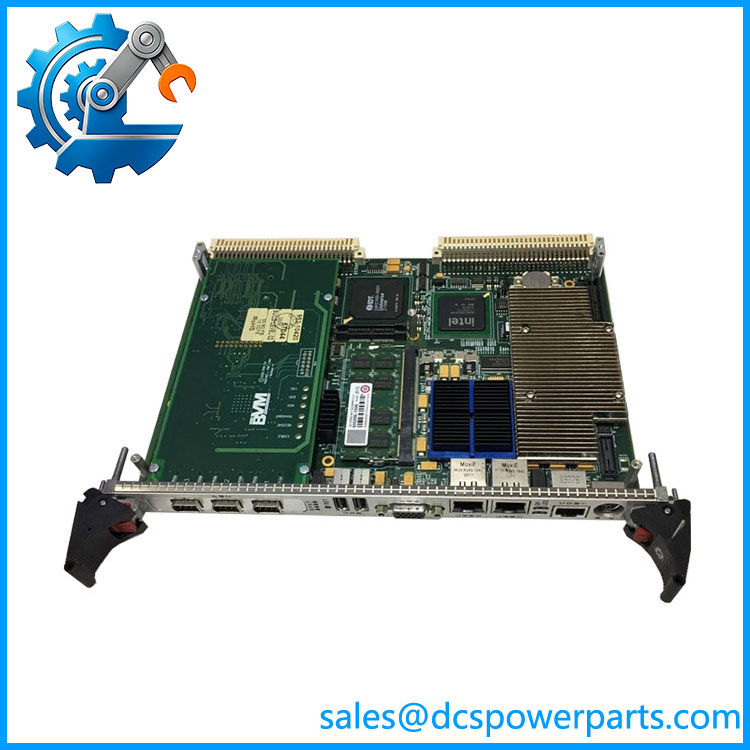

GE V7768-320000 350-9301007768-320000A0 Overview
The GE V7768-320000 350-9301007768-320000A0 is a high-performance VME single board computer designed for industrial computing applications where real-time processing, flexible expansion, and long service life are required. As part of the GE VME computing product family, it provides a complete embedded computer platform integrated into a VME-compatible form factor.
The GE V7768-320000 350-9301007768-320000A0 uses an Intel Core 2 Duo processor architecture capable of reaching processing speeds up to 2.16 GHz. This processing capability allows the board to execute demanding control algorithms, data acquisition tasks, communication services, and embedded application software.
The GE V7768-320000 combines processor resources, memory, storage, communication interfaces, and expansion capability on a single VME board. The module supports up to 2 GB DDR2 SDRAM and bootable CompactFlash storage, providing sufficient resources for industrial operating systems and application software used in automation and embedded control environments.
The GE V7768-320000 350-9301007768-320000A0 includes dual Gigabit Ethernet ports, serial communication interfaces, USB ports, SATA connections, and a PCI-X PMC expansion slot. These interfaces allow engineers to integrate additional communication modules, data acquisition boards, and specialized processing hardware according to system requirements.
The is commonly found in legacy VME-based systems where replacing the complete computing platform would require significant software migration, hardware redesign, or system requalification. Typical applications include industrial automation, simulation platforms, turbine-related control equipment, and embedded test systems.
When replacing a GE 350-9301007768-320000A0, engineers should verify processor version, installed PMC modules, operating system image, CompactFlash contents, BIOS settings, VME backplane compatibility, and application software environment. The board functions as a computing platform, meaning software and configuration recovery are equally important as hardware replacement.
V7768-320000
Application Scenarios & Field Considerations
Engineering Pain Point
A VME-based control or test system experiences boot failures, communication loss, application crashes, or storage errors. The SBC may be suspected, but the root cause can also involve CompactFlash failure, PMC modules, power instability, or software corruption.
Recommended troubleshooting steps:
- Check VME rack power stability
- Verify BIOS startup sequence
- Inspect CompactFlash health
- Confirm operating system image
- Test Ethernet communication
- Check installed PMC expansion boards
The provides the processing platform, but reliable operation depends on the complete VME system configuration.
Typical Applications
Industrial Automation Systems
Used for:
- Embedded control applications
- Data processing systems
- Machine automation platforms
- Legacy VME controllers
Power and Energy Systems
Applied for:
- Turbine-related control equipment
- Monitoring systems
- Real-time processing applications
Test and Simulation Platforms
Used for:
- Hardware-in-the-loop systems
- Data acquisition systems
- Engineering simulation equipment
Defense and Aerospace Equipment
Applied for:
- Mission computing systems
- Rugged embedded processing
- Specialized instrumentation
Technical Pitfalls to Avoid
1. Verify Software Environment
Before replacement, confirm:
- Operating system version
- Boot media image
- Application software
- Driver compatibility
A replacement SBC without the correct software image may not restore system operation.
2. Check PMC Expansion Hardware
Verify:
- Installed PMC modules
- PCI-X compatibility
- Driver requirements
- Module addressing
Expansion hardware is often specific to the original system design.
3. Confirm VME Backplane Compatibility
Inspect:
- VME slot configuration
- Power supply capacity
- Address mapping
- Communication topology
4. Protect Existing Storage Data
Before removing the board:
- Backup CompactFlash contents
- Record BIOS settings
- Document network parameters
- Save application configurations
