Description
Product Overview

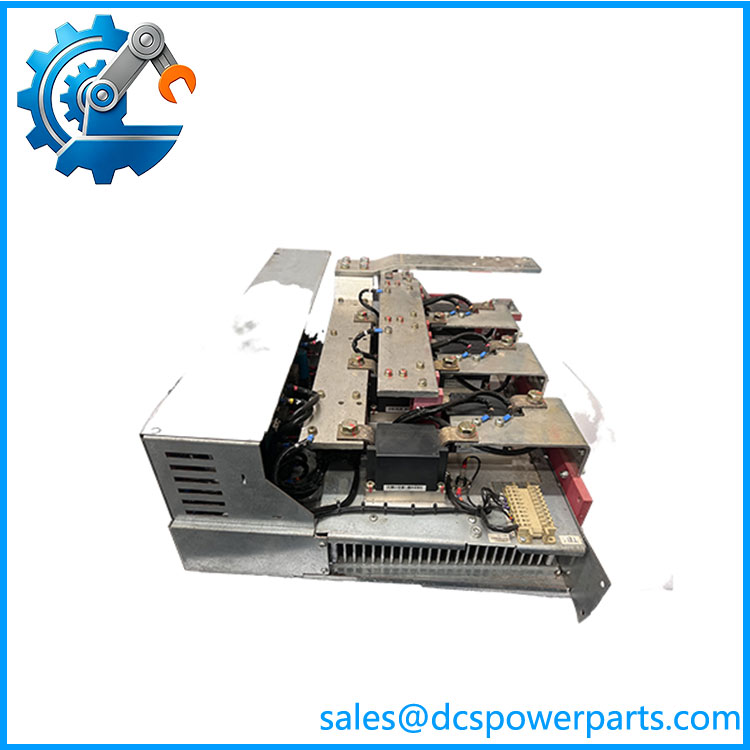

The GE MVR1600-4601 is a high-current rectifier bridge module designed for GE MV3000 medium-voltage drive systems and industrial power conversion applications. This module performs the essential AC-to-DC conversion stage required by large motor drive systems, using a thyristor/diode bridge architecture to deliver DC power to the drive DC link. The GE MVR1600-4601 is engineered for demanding industrial installations where large motors, heavy process equipment, and continuous production assets depend on stable power conversion performance.
Within the GE MV3000 and MV DELTA drive platforms, the GE MVR1600-4601 functions as a rectifier network bridge component that works together with drive controllers, DC link components, and inverter sections. The module is air cooled and rated at 690VAC input with a nominal 1600ADC output capability, making it suitable for high-power motor control applications. The integrated pre-charge circuit helps manage DC link capacitor charging during startup conditions, reducing stress on connected drive components.
The GE MVR1600-4601 is commonly considered during maintenance and lifecycle support activities for installed MV3000 drive systems. Replacement evaluation requires more than matching the part number; engineers should verify drive frame configuration, cooling arrangement, firmware/control compatibility, fuse selection, and commissioning requirements. These checks matter because rectifier modules operate directly in the high-energy power section of the drive system.
For plants maintaining older GE medium-voltage drive installations, keeping a verified spare rectifier module can shorten recovery time after power-stage failures. The module contains no user-serviceable internal components, so inspection, electrical testing, and installation procedures should follow approved technical documentation before returning the drive to operation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | GE MVR1600-4601 |
| Manufacturer | General Electric (GE) |
| Product Type | Rectifier Bridge Module |
| Drive Platform | GE MV3000 / MV DELTA Drive System |
| Rectifier Type | Thyristor/Diode Bridge |
| Cooling Method | Air Cooled |
| AC Input Rating | 690VAC nominal |
| DC Current Rating | 1600ADC nominal |
| Power Conversion Function | AC to DC rectification |
| Pre-Charge Circuit | Integrated protected pre-charge function |
| Installation | Medium-voltage drive power section |
| Application | Large motor drives and industrial power conversion |
| Service Role | Replacement spare for existing installations |
MVR1600-4601
Related Products
- — Air-cooled rectifier module variant with documented MV3000 DELTA application support. Used where the installed system documentation identifies this revision.
- GE MVRL2100-4601 — Higher-capacity liquid-cooled rectifier module variant. Used for applications requiring different thermal management and higher power handling requirements.
- GE GDR391 Rectifier Module — Lower-capacity rectifier hardware for different MV drive power ratings. Suitable for smaller drive configurations.
- GE GDR721 Rectifier Module — Another MV drive rectifier option used in GE power conversion assemblies with different current requirements.
- GE Controller Module — Drive control hardware that manages rectifier and inverter operation. Requires compatibility verification with the installed power section.
- GE DELTA Drive Components — Related power-stage assemblies supporting medium-voltage motor drive operation.
- GE DS200 Series Control Boards — GE control boards used across various legacy industrial control applications. Applicable for broader GE equipment maintenance rather than direct rectifier replacement.
Frequently Asked Questions (FAQ)
1. What is the GE used for?
The is a rectifier bridge module used in GE medium-voltage drive systems. Its primary function is converting AC supply power into DC link power for the drive inverter section.
2. Can I hot-swap the GE ?
No general hot-swap procedure should be assumed for this module.
A typical replacement process requires:
- Disconnecting and securing the incoming power source.
- Confirming DC link discharge.
- Removing the existing rectifier module.
- Installing and inspecting all power connections.
- Completing commissioning checks before operation.
This module handles high-energy power conversion, so replacement procedures must follow the applicable GE MV drive documentation.
3. Does the GE support firmware v3.1?
The rectifier module itself is primarily a power hardware assembly rather than a programmable controller. Compatibility depends on the drive controller, application software, and complete system configuration.
4. Will replacing the GE erase my drive logic?
No. The main drive control parameters and application logic are normally stored in the drive controller rather than the rectifier bridge module.
Before replacement:
- Back up drive parameters.
- Record controller settings.
- Verify protection and calibration parameters after installation.
5. How can I verify a New Surplus GE before installation?
Recommended checks include:
- Confirming GE identification labels and part markings.
- Inspecting power terminals and mechanical condition.
- Checking storage condition and contamination.
- Performing electrical inspection before energizing the drive.
6. What causes GE rectifier failures?
Common causes include:
- Semiconductor stress from repeated overload events.
- Cooling problems.
- DC link faults.
- Incorrect fuse coordination.
- Harmonic or supply-side electrical issues.
Troubleshooting should include checking the complete drive power circuit rather than replacing only the failed module.
7. Is the GE suitable for an drive upgrade project?
It is primarily intended for maintaining existing installations. For modernization projects, engineers should evaluate the complete drive system condition, motor requirements, control platform compatibility, and future maintenance strategy before selecting replacement hardware.
