Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS420PPNGH1A |
| Manufacturer | General Electric |
| Series | Mark VIe / Mark VIeS |
| Functional Abbreviation | PPNG |
| Product Type | PROFINET Gateway Module |
| Primary Function | PROFINET controller/gateway for Mark VIe architecture |
| Processor | 1066 MHz Intel EP80579 |
| Operating System | QNX Neutrino |
| Memory | 256 MB DDR2 SDRAM |
| PROFINET Interface | 100 Mbps Ethernet |
| Installation | Vertical panel mounting |
| Cooling | Air cooled; no installed fan |
| Operating Temperature | 22 to 149°F (-5 to 65°C), according to published technical listings |
| Weight | Approximately 2.4 lb |
| Reference Manual | GEH-6725 |
The GE hazardous-location documentation specifically identifies IS420PPNGH1A as a PROFINET gateway module and associates it with the 1066 MHz EP80579 processor family. GE certification documentation also lists the module for Mark VIe-related hazardous-location applications.
One procurement caution: some reseller specifications list 24 VDC as the operating supply and quote detailed PROFINET throughput figures, but the publicly available GE certification material is stronger evidence for the module’s identity, processor family, and certification status than for every electrical/network parameter. Match the installed system documentation and nameplate before treating those secondary figures as acceptance criteria.
Product Introduction
The GE IS420PPNGH1A is a PROFINET Gateway Module used in the Mark VIe control architecture. Its primary job is to provide the controller-side interface between a Mark VIe system and PROFINET I/O devices. The PPNG uses a 1066 MHz Intel EP80579 processor and operates with QNX Neutrino, making it a dedicated computing and communications component rather than a conventional discrete or analog I/O card.
For plant engineers, the important point is network architecture. The module allows PROFINET-based distributed devices to participate in the turbine control system without treating the PPNG as a generic Ethernet communication adapter. It is a specific Mark VIe component, so controller compatibility, PROFINET configuration, switch architecture, and ControlST/ToolboxST configuration need to be checked as part of replacement planning.

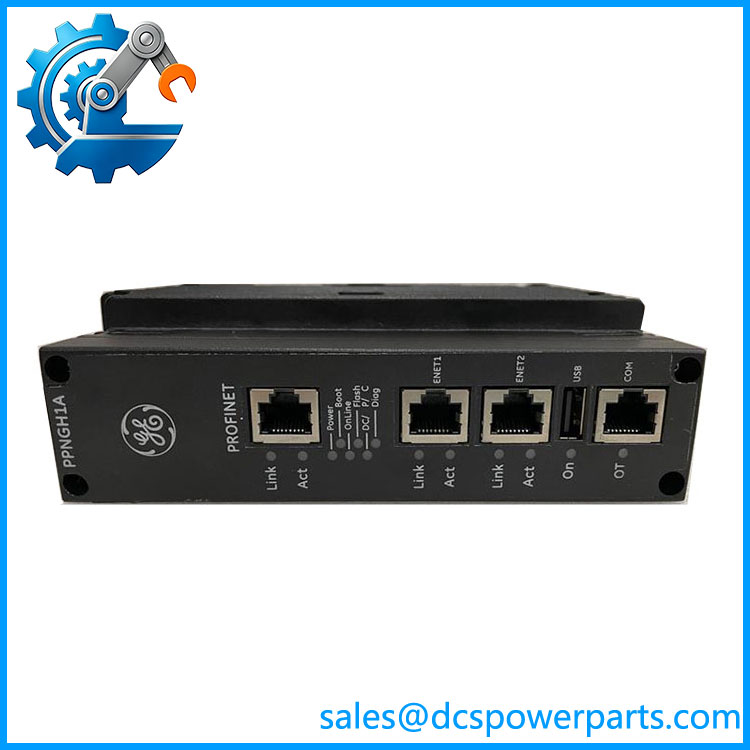

IS420PPNGH1A
Application Scenarios & Field Pitfalls
Engineering Pain Point
A common retrofit problem is finding an available industrial Ethernet module that appears electrically similar but is not architecturally equivalent. The IS420PPNGH1A is not simply an Ethernet port expansion card. It performs the PROFINET controller/gateway role within the Mark VIe environment.
This distinction matters when replacing a failed unit. A generic PROFINET interface cannot automatically reproduce the Mark VIe integration, device configuration, network behavior, and control-system diagnostics expected from the PPNG.
Typical Applications
- Gas turbine control: PROFINET-connected field I/O and intelligent subsystems within Mark VIe turbine installations.
- Steam turbine control: Distributed PROFINET devices requiring integration with the turbine controller.
- Hydro turbine systems: Industrial Ethernet connectivity for distributed control and I/O equipment.
- Power generation auxiliary systems: PROFINET device integration where Mark VIe is used as the supervisory or primary control platform.
GE documentation lists the IS420PPNGH1A within the Mark VIe controller equipment family, including certified applications involving hazardous locations.
Technical Pitfalls to Avoid
1. Do not confuse PPNG with a standard network switch.
The module provides a PROFINET gateway/controller function. Network switches, I/O devices, and the Mark VIe controller have different roles.
2. Verify the network architecture before replacement.
Published technical information notes that IONet and PROFINET should not be treated as interchangeable network functions. A replacement plan should preserve the intended separation and switching architecture rather than simply moving Ethernet cables to another port.
3. Match the exact hardware revision.
For a maintenance replacement, verify IS420PPNGH1A, hardware revision, installed firmware/software compatibility, and the existing PROFINET configuration. GE’s certification documents confirm the exact catalog number, but certification alone does not establish interchangeability with every other Mark VIe communications module.
Related Products
- IS420UCSBH4A — Mark VIe controller using the same 1066 MHz EP80579 processor family; it performs controller functions rather than PROFINET gateway duties.
- IS420UCSBH1A — Mark VIe / EX2100e / LS2100e controller variant using a different 600 MHz EP80579 processor implementation.
- IS420UCSBH3A — Mark VIe or MarkStat controller using a 1200 MHz EP80579 processor; not a direct PPNG replacement.
- IS421UCSBH4A — Conformal-coated Mark VIe controller variant within the same broader equipment family.
- IS420UCSBS1A — Mark VIeS safety controller; its safety role is substantially different from the PPNG communications function.
- IS421UCSBS1A — Conformal-coated Mark VIeS safety controller.
- IS220UCSAH1A — Earlier Mark VIe controller architecture using a 667 MHz PowerQUICC processor rather than the PPNG’s 1066 MHz .
- IS220PSCHH1A — Mark VIe specialized serial communication module; useful for comparison when the required interface is serial rather than PROFINET.
Procurement Check
For an replacement, I would verify four items before approving the unit: exact catalog number, hardware/revision marking, PROFINET device configuration, and Mark VIe software compatibility. The GE certification records provide strong confirmation that is a Mark VIe PROFINET gateway module, while secondary listings provide the processor and installation details.
For a running turbine system, do not substitute another Mark VIe controller merely because it uses a similar processor or has Ethernet connectivity. The PPNG’s function in the control architecture is specific.
