GE IS230TVBAH2A | Vibration Input Assembly | Mark VIe Turbine Monitoring
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS230TVBAH2A |
| Manufacturer | GE General Electric |
| Product Family | Mark VIe / Speedtronic |
| Functional Designation | TVBA |
| Board Type | Vibration Input Assembly |
| Primary Function | Vibration and machinery-monitoring signal interface |
| Application | Gas and steam turbine control/protection |
| Field Signal Type | Vibration / position-related instrumentation |
| System Interface | Mark VIe turbine I/O architecture |
| Physical Form | Terminal/interface assembly |
| Replacement Requirement | Match complete part number and installed system configuration |
Important specification note: Online listings variously describe the IS230TVBAH2A as a vibration input assembly, vibration termination board, digital module, and even a thermocouple board. These descriptions should not be treated as equivalent. The more consistent technical references identify the part as a TVBA vibration input assembly associated with GE Mark VI/Mark VIe turbine vibration monitoring.
Product Introduction
The GE IS230TVBAH2A is a Mark VIe vibration input assembly used in turbine monitoring architecture. Its role is centered on the interface between field vibration-related instrumentation and the turbine control system, rather than acting as a general-purpose PLC CPU or conventional analog I/O card. References identify the TVBA family specifically with vibration signal termination and input functions.
For maintenance teams, the important point is signal-path compatibility. The GE IS230TVBAH2A should be evaluated together with the associated vibration I/O pack, field wiring, sensor type, and Mark VIe configuration. A physically similar terminal assembly is not automatically an electrical substitute.

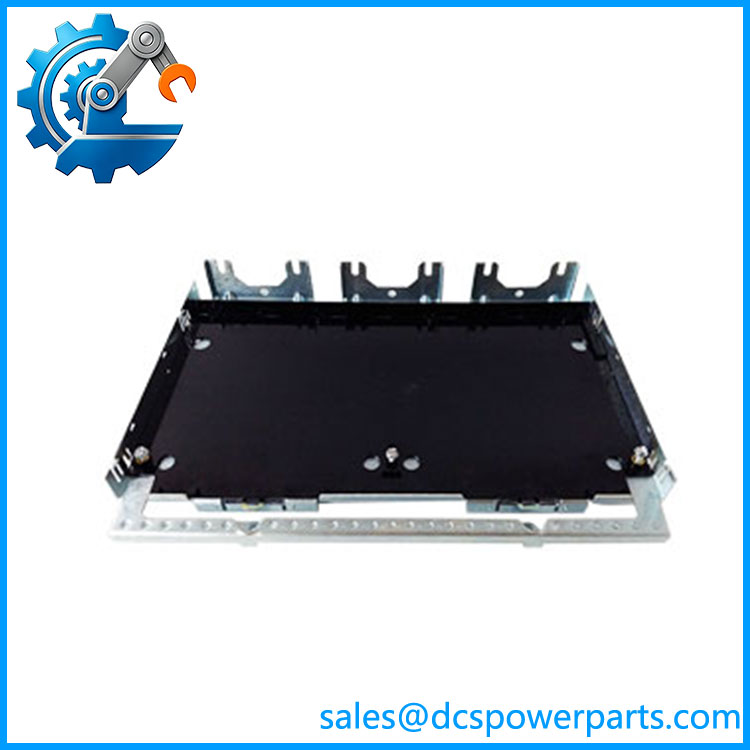

IS230TVBAH2A
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
Turbine vibration channels are protection-relevant signals. A replacement board can look correct mechanically while still being unsuitable because of differences in termination arrangement, sensor interface, wiring, or associated I/O hardware.
Typical Applications
- Turbine vibration monitoring — Interface for vibration-related field instrumentation in GE turbine control systems.
- Machinery protection — Supports the signal path used by turbine monitoring and protection functions.
- Rotating-equipment monitoring — Applicable to turbine shaft, bearing, and related machinery instrumentation.
- Mark VIe maintenance — Replacement of an existing TVBA-family assembly during planned maintenance or corrective repair.
Technical Pitfalls to Avoid
- Do not treat it as a generic digital I/O module. Several current listings use generic descriptions such as controller, digital input, or communication module. Those descriptions do not establish the actual hardware function.
- Do not confuse TVBA with TCAT. GE Mark VIe uses different terminal-board families for different signal types. TCAT, for example, is associated with core analog and thermocouple-related interfaces, while TVBA is identified with vibration input architecture.
- Verify the complete vibration signal path before installation. Confirm the replacement board, associated I/O pack, sensor wiring, shield termination, and configuration. Field guidance specifically warns that improper handling of vibration signal shields can introduce damaging transients into the I/O front end.
Related Products
- IS200TVBAH2ACC — Earlier Mark VI vibration-related board associated with the IS230TVBAH2A family; verify the complete assembly and revision before considering substitution.
- IS230TVBAH1A — TVBA-family vibration terminal board with a different configuration.
- IS230TVBAH3A — Simplex vibration input terminal board; configuration differs from H2A.
- IS230TVBAH6A — Another TVBA vibration terminal-board variant; verify channel and system configuration.
- IS230TVBAH8A — TVBA-family vibration input assembly variant.
- IS220PVIBH1A — Mark VIe vibration I/O pack family component used in vibration-monitoring architectures; verify the installed hardware pairing.
- IS230TCATH1A — Mark VIe core analog/thermocouple-related terminal assembly; it is not a direct TVBA replacement.
Procurement Note
For a replacement , specify the complete part number, inspect the nameplate, and compare the physical connector arrangement with the installed assembly. If the board is being purchased for a turbine protection or vibration-monitoring system, request clear photographs of the actual board and confirm its relationship to the installed I/O pack before accepting a substitute.
The part number should take priority over generic supplier descriptions such as “digital DIN rail module,” “communication module,” or “controller module.” Those labels appear in current listings but are not sufficient evidence of functional compatibility.
