Description
GE IS230TNPAH2A Primary Turbine Protection TMR I/O Pack
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IS230TNPAH2A |
| Product Family | Mark VIe |
| Product Type | Primary Turbine Protection I/O Pack |
| Functional Designation | PTUR |
| Redundancy | TMR |
| Installation | DIN rail |
| Associated Terminal Board | IS200TRPAH2A |
| TMR Configuration | 3 I/O packs |
| System Application | Turbine protection |
| Hardware Architecture | Mark VIe I/O pack |
GE’s obsolete-electronics component documentation identifies IS230TNPAH2A as the TMR PTUR I/O pack, with IS200TRPAH2A as the associated terminal board and three packs required for the TMR arrangement.
Product Introduction
The GE IS230TNPAH2A is a Mark VIe Primary Turbine Protection (PTUR) I/O pack designed for TMR operation. It is part of the turbine protection signal interface rather than a general-purpose analog or digital I/O module. The DIN-rail package is associated with the IS200TRPAH2A terminal-board hardware and participates in the three-channel TMR protection architecture.
For turbine maintenance teams, this distinction matters. PTUR hardware sits in a protection function where channel redundancy, correct terminal-board matching, and system configuration are more important than simply finding a physically similar Mark VIe I/O pack.

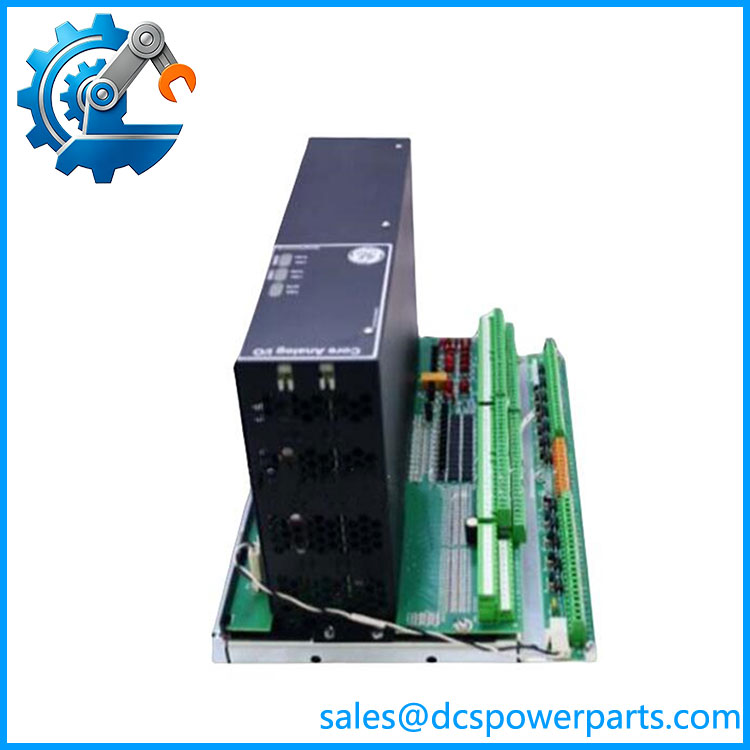

IS230TNPAH2A
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A turbine protection fault involving one I/O pack can be misleading. A channel may remain available through the redundant architecture while diagnostics identify a failed or degraded pack. Replacing the wrong Mark VIe I/O pack can leave the original protection fault unresolved because PTUR hardware has a specific system role and terminal-board relationship.
Typical Applications
- GE Mark VIe primary turbine protection
- TMR turbine protection systems
- Gas and steam turbine control/protection installations
- Legacy Mark VIe maintenance and spare-parts programs
Technical Pitfalls
1. Do not classify IS230TNPAH2A as a generic analog input module.
Several commercial listings make this claim, but the GE component cross-reference identifies the part as the PTUR TMR I/O pack.
2. Do not confuse the I/O pack with the terminal board.
The documented pairing is IS230TNPAH2A I/O pack + IS200TRPAH2A terminal board. These are separate hardware elements within the PTUR architecture.
3. TMR configuration must be preserved.
The GE documentation identifies three packs for the TMR PTUR arrangement. Replacing one failed pack is therefore a system-maintenance task, not simply an independent I/O substitution.
4. Verify the terminal-board part number.
A visually similar Mark VIe DIN-rail pack does not establish compatibility. Confirm that the installed terminal board is the expected IS200TRPAH2A before ordering a replacement.
5. Avoid unsupported channel specifications.
Online listings variously describe this part as analog input, analog output, and 16-channel digital I/O hardware, with conflicting voltage and temperature specifications. Those descriptions should not be used for engineering selection.
6. Check the protection-system configuration after replacement.
A replacement pack should be verified against the existing Mark VIe PTUR configuration, firmware/hardware revision requirements, diagnostics, and TMR channel assignment before returning the turbine protection system to service.
Related Products
- IS200TRPAH2A — Associated Primary Turbine Protection terminal board for the TMR I/O pack.
- IS230TRPAH1A — Related PTUR TMR I/O pack variant.
- IS230STURH1A — Simplex PTUR DIN-rail I/O pack.
- IS230STURH2A — Related simplex PTUR I/O pack variant.
- IS230STURH3A — Related PTUR I/O pack variant.
- IS230STURH4A — Related PTUR I/O pack variant.
- IS200TREGH1B — Related turbine protection termination hardware used in Mark VI protection architectures.
- IS200TRPGH1B — Related turbine protection terminal hardware.
The key distinction is redundancy architecture: STUR variants are associated with simplex PTUR configurations, while TNPAH2A is documented as the TMR I/O-pack designation.
Procurement Note
For , the minimum procurement check should include:
- Exact part number:
- Function: PTUR Primary Turbine Protection
- Architecture: TMR
- Associated terminal board:
- Installed Mark VIe hardware revision and configuration
The most important correction is functional: is a Primary Turbine Protection TMR I/O pack, not a generic analog-input or analog-output module. Published listings that assign it 16 digital inputs/outputs or generic analog channels conflict with the GE PTUR component documentation and should not be used as the basis for replacement selection.
