Description
GE IS230SNIDH1A MRP689579 | Isolated Digital DIN-Rail Module | Mark VIe Turbine Control
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | |
| GE Part Number | |
| Manufacturer | General Electric |
| Product Series | Mark VIe |
| Product Type | Isolated Digital DIN-Rail Module |
| Installation | DIN rail / distributed I/O assembly |
| System Application | GE Mark VIe turbine control |
| Supply Voltage | 24 VDC reported |
| Operating Temperature | 0°C to 60°C reported |
| Dimensions | Approximately 180 × 180 × 30 mm reported |
| Weight | Approximately 0.8 kg reported |
| Field Interface | Digital I/O; exact channel configuration should be verified against the installed terminal arrangement |
The part is repeatedly identified as an Isolated Digital DIN-Rail Module within GE’s Mark VIe product family. Public documentation available for this exact part number is limited, so electrical values that are commonly copied between reseller listings should not be treated as OEM-confirmed specifications.
Product Introduction
The is an isolated digital DIN-rail module associated with GE Mark VIe turbine control systems. It is intended for distributed I/O applications where discrete field signals must be interfaced with the turbine control architecture while maintaining electrical separation between field wiring and control electronics. The module is part of the broader Mark VIe I/O ecosystem used in power-generation automation.
For maintenance teams, the value of the is mainly its role as a form-fit functional spare for an existing Mark VIe installation. This is not a part I would substitute based only on the words “digital module”; the terminal-board arrangement, firmware/configuration, I/O definition, and exact system architecture should all be checked before installation.

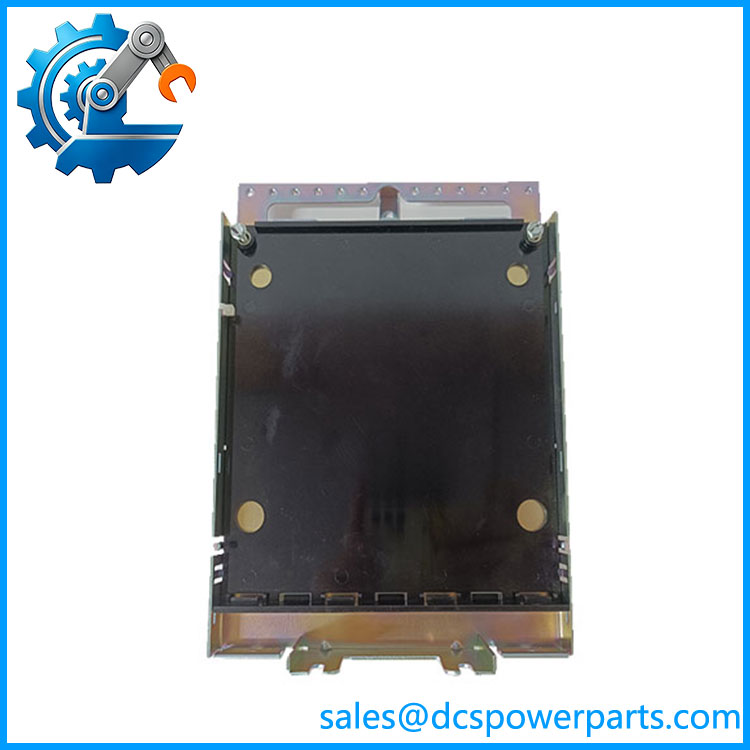

IS230SNIDH1A MRP689579
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A failed distributed I/O module can be deceptively difficult to replace in a turbine control system. The physical replacement may take minutes, while confirming that the replacement has the correct hardware revision, terminal interface, configuration, and system compatibility can take considerably longer. This is especially important with legacy Mark VIe installations where documentation and installed hardware may have changed during previous outages.
The is most relevant to applications built around GE Mark VIe distributed turbine control, particularly where isolated digital field interfaces are required.
Typical Applications
- Gas turbine control systems — Digital status and discrete field signal interfacing.
- Steam turbine control — Distributed field I/O within turbine auxiliary and control systems.
- Combined-cycle power plants — Mark VIe-based distributed control cabinets.
- Industrial power generation — Replacement of aging or failed Mark VIe digital I/O hardware.
Technical Pitfalls to Avoid
1. Do not confuse the module with an analog I/O or output module.
Several reseller pages incorrectly classify the as an analog input, solenoid-output, or network-interface device. The recurring identification for the exact part number is an isolated digital DIN-rail module.
2. Verify the complete hardware assembly before replacement.
Do not purchase solely from the designation. Check the number, board label, revision, terminal arrangement, and the corresponding Mark VIe I/O configuration in the plant documentation.
3. Be careful with published electrical specifications.
Some online listings state 120–240 VAC input, while others describe 24 VDC operation; other listings provide digital-output ratings that do not agree with the module’s recurring product classification. These discrepancies are a good reason to verify the actual nameplate and GE documentation before applying field power.
4. Do not assume another IS230-series module is a drop-in substitute.
Mark VIe contains multiple digital, analog, RTD, relay, and communication I/O assemblies. Similar mechanical packaging does not establish electrical or configuration compatibility.
Related Products
- GE IS230TNPAH2A — Mark VIe digital I/O module used for discrete signal applications; evaluate by exact I/O function rather than physical similarity.
- GE IS220PDIAH1A — Mark VIe discrete contact I/O pack; a relevant comparison when the application requires discrete input acquisition.
- GE IS230SNRTH2A — Mark VIe RTD input module for temperature measurement rather than general digital signals.
- GE IS230SRTDH2A — RTD-oriented Mark VIe I/O hardware; not a direct replacement for a digital module.
- GE IS230STAOH2A — Mark VIe analog output hardware for analog control signals.
- GE IS230SVAIH1A — Mark VIe servo-related I/O hardware used in turbine control applications.
- GE IS220VCMIH2CA — Mark VIe communication interface hardware associated with the distributed I/O architecture.
- GE IS220PSCAH1A — Mark VIe I/O power supply module; relevant when investigating I/O-pack power problems rather than a failed digital interface.
- GE ToolboxST — Engineering/configuration environment used with Mark VIe systems; configuration should be checked before commissioning replacement I/O hardware.
Procurement note: For , ask for a clear photograph of the nameplate and connector/terminal side before accepting a substitute. Because public listings contain contradictory functional descriptions, matching the exact GE part number and installed configuration is more important than accepting a generic “Mark VIe digital module” description.
