Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product | IS220PPRFH1A |
| Functional Acronym | PPRF |
| Manufacturer | GE |
| Product Type | PROFIBUS Master Gateway Module |
| Platform | Mark VI / Mark VIe |
| Communication Function | PROFIBUS Master Gateway |
| Accessory ID Board | IS200SPIDG1A |
| Minimum Supply Voltage | 27.4 VDC |
| Nominal Supply Voltage | 28.0 VDC |
| Maximum Supply Voltage | 28.6 VDC |
| Maximum Supply Current | 0.18 A DC |
| Operating Temperature | -20 to +55°C |
| Hazardous Location Configuration | IS220PPRFH1A + IS200SPIDG1A |
GE’s HazLoc documentation specifically identifies IS220PPRFH1A or IS220PPRFH1B as the PPRF PROFIBUS Master Gateway I/O pack and specifies IS200SPIDG1A as the associated accessory ID board.
Product Introduction
The GE IS220PPRFH1A is the PPRF PROFIBUS Master Gateway module for GE Mark VI/Mark VIe control architectures. Its primary role is fieldbus communication, providing the interface between the GE control environment and PROFIBUS-connected equipment. GE documentation classifies the PPRF as a PROFIBUS Master Gateway Module rather than a conventional analog input or output module.
The module is especially relevant in legacy turbine-control installations where PROFIBUS devices remain part of the plant architecture. For procurement, the associated terminal/accessory board and exact system configuration matter as much as the I/O pack itself. The IS200SPIDG1A pairing is explicitly documented for the PPRF hazardous-location configuration.
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A PROFIBUS gateway failure can look like a problem with several downstream instruments at once. When the master gateway stops communicating, multiple PROFIBUS slaves may disappear simultaneously. Replacing a random I/O pack or field device without checking the gateway diagnostics can therefore waste valuable outage time.

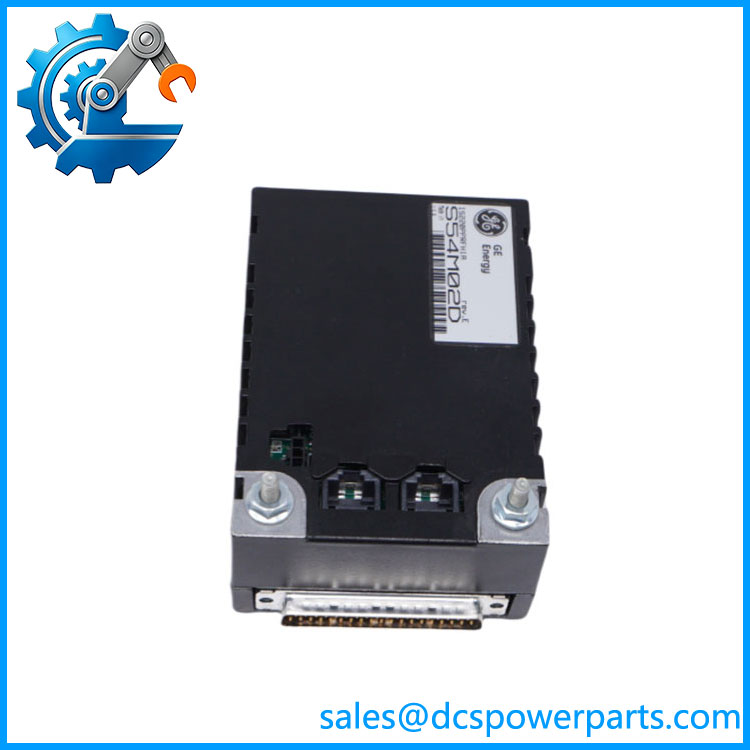

IS220PPRFH1A
Typical Applications
- GE Mark VI turbine control — PROFIBUS integration within turbine automation architectures.
- Mark VIe control systems — PPRF is explicitly documented as a Mark VIe PROFIBUS Master Gateway module.
- PROFIBUS field-device integration — connects PROFIBUS-based equipment into the GE control architecture.
- Legacy turbine maintenance — replacement of failed PPRF I/O packs in existing installations.
Technical Pitfalls
1. Do not classify it as a conventional analog I/O module.
Some secondary catalogs call IS220PPRFH1A an “analog I/O pack” because of GE’s product categorization. The functional designation from GE is PPRF PROFIBUS Master Gateway Module.
2. The terminal/accessory board matters.
For the documented hazardous-location configuration, GE specifies the PPRF pack together with IS200SPIDG1A. A replacement I/O pack should therefore be checked against the installed accessory board rather than treated as an independent module.
3. Do not assume the module’s supply range is a field-signal range.
The documented 27.4–28.6 VDC figure is the PPRF module’s power-supply rating. It should not be interpreted as a PROFIBUS signal voltage or field-device supply specification.
4. Check PROFIBUS configuration before replacement.
A hardware replacement does not necessarily reproduce the operating configuration. Master parameters, slave addresses, device configuration, and control-system application data should be checked before returning the system to service.
5. Verify the exact hardware revision.
GE documentation also lists IS220PPRFH1B as a PPRF variant. Do not assume the H1A and H1B versions are interchangeable solely because both carry the PPRF designation.
6. Hazardous-location approval is configuration-specific.
The certification applies to the specified I/O-pack/terminal-board combination and installation conditions. It should not be treated as a blanket certification for any installation using the board alone.
Related Products
- GE IS200SPIDG1A — accessory ID board specified with the PPRF module.
- GE IS220PPRFH1B — related PPRF PROFIBUS Master Gateway variant.
- GE IS220PCNOH1A — Mark VIe CANopen Master Gateway module; different fieldbus technology.
- GE IS220PSCAH1A — Mark VIe serial communication module.
- GE IS220PSCHH1A — specialized serial communication module.
- GE IS220PCLAH1A — Mark VIe core analog I/O pack; not a PROFIBUS gateway.
- GE IS220PDIOH1A — Mark VIe discrete I/O pack.
- GE IS220PAICH1A — Mark VIe analog I/O pack.
Procurement Note
For IS220PPRFH1A, purchase against the complete functional part number, not simply “PPRF.” Confirm the installed , Mark VI/VIe architecture, hardware revision, and hazardous-location requirements before substitution. If the failure involves loss of several PROFIBUS devices simultaneously, check gateway power and PROFIBUS diagnostics before replacing individual field devices.
