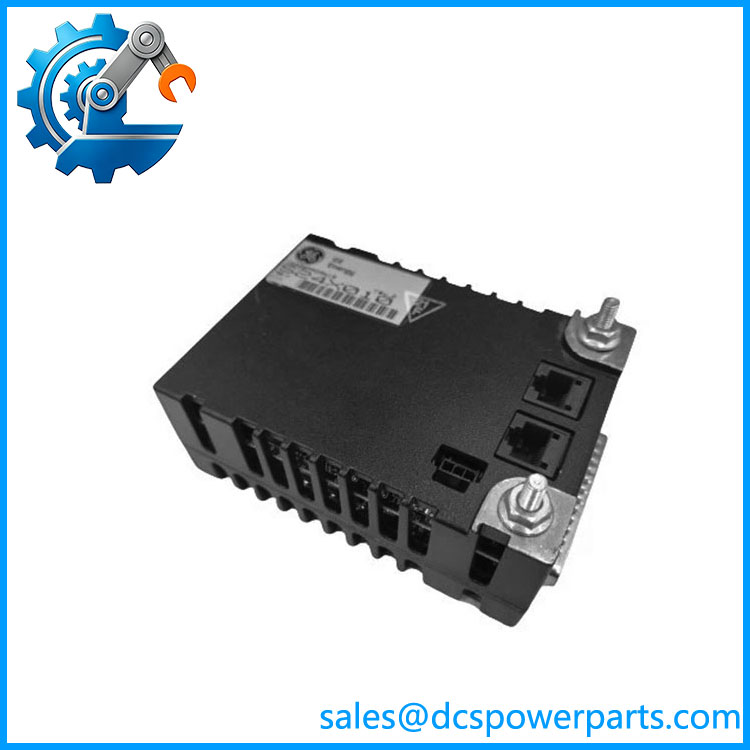

GE IS220PPDAH1A Mark VIe PPDA Power Distribution System Feedback I/O Pack
Product Overview
Power-distribution faults in a turbine control cabinet can be difficult to diagnose because the problem may originate in a branch circuit, bulk control supply, or distribution board rather than in the main Mark VIe controller. The GE IS220PPDAH1A addresses this layer of the architecture. GE identifies it as the Mark VIe Control PPDA Power Distribution System Feedback Module, used with the IS200JPDSG1A accessory control power distribution board. Its job is to receive power-distribution feedback and make that information available to the control system.
The IS220PPDAH1A is an I/O Pack, but it should not be confused with a standard analog or discrete field I/O module. The pack sits in the Mark VIe power-distribution architecture and can accept feedback from as many as six distribution boards or feedback groups. It also provides the network connection toward the controller. GE’s documentation specifies a 28 VDC supply for the I/O pack and an ambient range of -30°C to +65°C.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VIe |
| Product Model | IS220PPDAH1A |
| Functional Acronym | PPDA |
| Product Type | Power Distribution System Feedback I/O Pack |
| Primary Function | Power-distribution system feedback acquisition and conditioning |
| Host / Accessory Board | IS200JPDSG1A |
| Control Power | 28 VDC |
| Feedback Capacity | Up to six power-distribution boards / feedback groups |
| Network Interface | Dual/redundant IONet interface |
| Processor Board | IS200BPPBH2B |
| Communications Board | IS200BPDAH1A |
| Analog Feedback | GE certification specifies analog inputs associated with the PPDA feedback function |
| Analog Input Range | ±5 V, high impedance for the documented PPDA input |
| Ambient Temperature | -30°C to +65°C |
| Mounting Architecture | Mark VIe power-distribution module |
| Direct Protective Action | No — feedback/monitoring function |
| Related Manual | GEH-6721L / Mark VIe System Hardware documentation |
GE’s hazardous-location certificate identifies the internal construction as an IS200BPPBH2B processor board plus IS200BPDAH1A communications board, used with IS200JPDSG1A. The same certificate specifies 28 VDC supply input and ±5 V high-impedance analog inputs for the PPDA pack.
Application Scenarios & Field Considerations
Mark VIe Power Distribution Monitoring
The PPDA pack monitors feedback generated by the Mark VIe power-distribution architecture. It is therefore relevant when troubleshooting control-power distribution rather than ordinary process transmitters or valve signals. GE identifies the module specifically as a Power Distribution System Feedback Module.
IS220PPDAH1A
Turbine Control Cabinet Diagnostics
A PPDA-related fault can be associated with power-distribution feedback rather than an actual controller CPU failure. During troubleshooting, check the host distribution board, feedback wiring, connector condition, and controller network before replacing the PPDA pack.
Multiple Distribution Boards
The architecture can accept feedback from multiple power-distribution boards. Secondary documentation identifies support for up to six boards/feedback groups, while the Mark VIe architecture uses the PPDA to communicate this information back to the controller network.
Legacy Mark VIe Maintenance
The complete IS220PPDAH1A designation matters. Do not substitute another Mark VIe I/O pack simply because its enclosure and Ethernet connectors appear similar. The internal board combination and host distribution-board relationship are specific to the PPDA function.
Related Products
- IS200JPDSG1A — Control Power Distribution Board specifically identified by GE as the accessory board for IS220PPDAH1A.
- IS200BPPBH2B — Processor board used inside the .
- IS200BPDAH1A — Communications board associated with the PPDA architecture.
- IS220PPDAH1B — Later/functionally compatible PPDA-related variant reported with a different processor-board configuration; do not treat it as a simple hardware swap without checking the Mark VIe software and system revision.
- JPDM — Mark VIe power-distribution module architecture that can participate in the PPDA feedback system.
- JPDB / JPDE / JPDF — Power-distribution boards associated with feedback connections in the PPDA architecture.
- IS220PPNGH1A — Mark VIe I/O pack appearing in the same GE control architecture, but serving a different function.
Engineer’s Guide — Field Pitfalls to Avoid
1. Do not mistake PPDA for a standard analog input pack.
The word “analog” can be misleading here. PPDA is specifically designed for power-distribution feedback. It is not a general-purpose 10-channel analog input module like several other Mark VIe I/O families.
2. Match the host power-distribution board.
GE specifically identifies IS200JPDSG1A as the accessory control power distribution board for . Verify the cabinet architecture before installation.
3. Do not apply field voltage directly to the pack.
The documented ±5 V high-impedance analog input belongs to the PPDA feedback architecture. Follow the Mark VIe wiring drawings rather than treating these terminals as generic analog channels.
4. Verify the internal board combination.
The H1A assembly is documented as using an IS200BPPBH2B processor board and IS200BPDAH1A communications board. A replacement internal board with a different revision should be evaluated against the complete I/O-pack configuration.
5. Check IONet communication before condemning the pack.
The PPDA communicates power-distribution information to the controller. Inspect the network path, connectors, host board, and controller-side diagnostics before replacing the electronics.
6. Keep the H1A suffix intact.
Do not order simply “PPDA.” The complete identifier is required for procurement and configuration matching.
FAQ
What is GE ?
It is a Mark VIe Power Distribution System Feedback I/O Pack, abbreviated PPDA. It monitors feedback from power-distribution equipment and communicates the information to the Mark VIe controller system.
Is a normal analog input module?
No. Although the PPDA architecture has analog feedback inputs, its dedicated purpose is power-distribution system feedback. It should not be substituted for a general-purpose Mark VIe analog input pack.
What board does mount to?
GE’s certification identifies IS200JPDSG1A as the accessory control power distribution board for the .
What is the supply voltage?
The GE hazardous-location certification specifies 28 VDC supply input for the Mark VIe I/O packs, including the PPDA.
How many power-distribution boards can PPDA monitor?
The PPDA architecture is documented as accepting feedback from up to six power-distribution boards or feedback groups.
What is the operating temperature?
GE’s certification specifies an ambient temperature range of -30°C to +65°C for the applicable Mark VIe I/O packs, including .
Can be replaced by another Mark VIe I/O pack?
No, not based on physical similarity. The PPDA has a specific power-distribution feedback function, internal board combination, host-board relationship, and Mark VIe configuration. Verify the complete hardware and ControlST configuration before replacement.
