Description

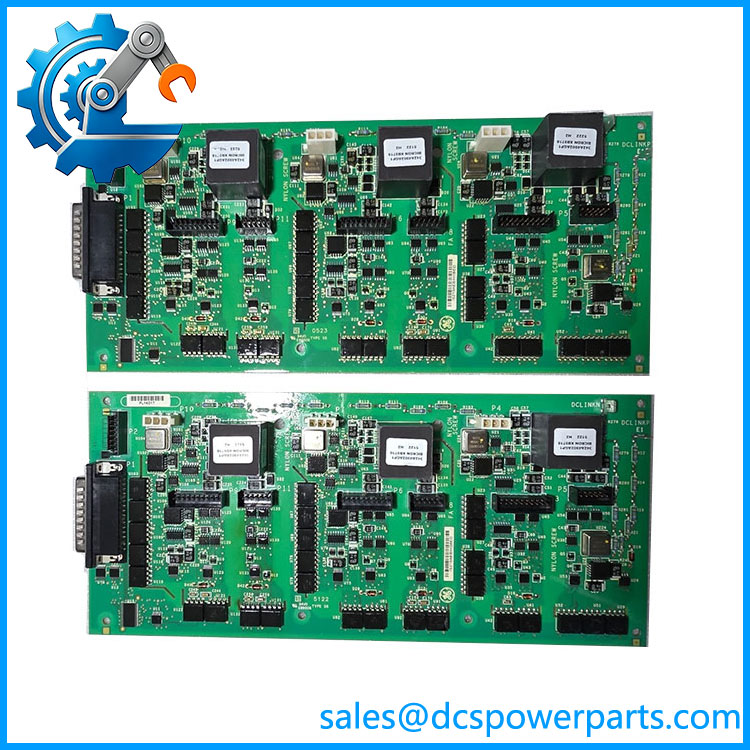

GE IS210AEBIH1BED | 104W5469P001 | AEBI Bridge Interface PCB
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Energy |
| Model | IS210AEBIH1BED |
| Assembly P/N | 104W5469P001 |
| Functional Designation | AEBI |
| Full Description | Alternative Energy Bridge Interface PCB |
| Product Type | Printed circuit board assembly |
| System Family | GE Energy Alternative Energy electronics |
| Primary Role | Bridge interface / signal-interface circuitry |
| PCB Construction | Conformal-coated electronics reported |
| Replacement Basis | Complete IS210 number + assembly P/N + revision |
| Electrical Ratings | Configuration-dependent; verify OEM/system documentation |
GE-oriented parts documentation lists IS210AEBIH1BED within the AEBI — Alternative Energy Bridge Interface PCB family and associates the family with 104W5469P001. The same family includes several H1 and H3 variants, so the complete suffix should be retained when ordering.
A repair-services parts list also identifies IS210AEBIH1BED as “GE NON ESS AEBI,” distinguishing it from several H3 AEBI variants classified separately as GE ESS AEBI. That distinction is useful when matching a spare to the original power-conversion architecture.
Product Introduction
The GE IS210AEBIH1BED, associated with assembly 104W5469P001, is an AEBI Alternative Energy Bridge Interface PCB used within GE Energy power-conversion electronics. Its function is associated with the interface between control electronics and the power-conversion bridge rather than serving as a conventional standalone PLC I/O module.
The AEBI family contains multiple hardware variants, including H1 and H3 configurations. For that reason, the full IS210AEBIH1BED designation is more important than the generic “AEBI board” description when sourcing a replacement.
IS210AEBIH1BED
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A bridge-interface PCB can appear healthy while the associated converter still has a serious fault. When an AEBI board is replaced after a bridge or power-stage event, checking only the PCB often misses the original failure mechanism. Gate-drive circuits, IGBTs, DC-link components, feedback wiring, and control power should be evaluated as part of the same fault investigation.
Typical Applications
- GE Energy alternative-energy power-conversion systems
- Wind-energy converter electronics
- Industrial power-conversion equipment
- Converter bridge interface assemblies
- Legacy GE Energy maintenance systems
- Plant spare-parts inventories
Technical Pitfalls
- Match the complete part number.
should not be shortened to “AEBI” when ordering. Multiple AEBI variants exist, including H1 and H3 versions. - Verify 104W5469P001.
The assembly number provides an additional cross-check against the board’s model marking. Use both identifiers in the procurement record. - Do not classify it as ordinary digital I/O.
Several reseller pages describe this board as a digital-input expansion board, but the stronger GE-oriented parts documentation identifies the hardware as an AEBI Alternative Energy Bridge Interface PCB. - Do not use generic voltage or current specifications.
Secondary listings publish conflicting values such as 24 VDC, 12–48 VDC, and high-current output figures. Those claims are not sufficiently supported for this specific board and should not be used for engineering approval. - Check the associated converter.
If the original AEBI failed following an IGBT, DC-link, or bridge fault, inspect the power stage before installing the spare. A replacement interface board should not be used to mask an unresolved converter fault. - Preserve revision information.
The H1BED suffix is part of the hardware identification. Record every marking visible on the PCB before approving an alternate AEBI board. - Inspect coating and connectors.
Conformal coating is reported for this board family. Inspect for cracked coating, contamination, corrosion, connector damage, overheated components, and signs of moisture ingress before installation. - Verify the complete control architecture.
Do not assume that an AEBI board from another GE Energy converter is interchangeable simply because both boards carry the AEBI designation.
Related Products
- GE IS210AEBIH1BEA — Closely related H1 AEBI variant; exact suffix must be matched.
- GE IS210AEBIH1BEC — Related AEBI H1 variant.
- GE IS210AEBIH1BDA — Related AEBI H1 variant.
- GE IS210AEBIH1BAB — Related AEBI H1 variant.
- GE IS210AEBIH1BAA — Related AEBI H1 variant.
- GE IS210AEBIH3BEC — H3 AEBI variant associated with GE ESS applications; not an automatic substitute.
- GE IS210AEBIH3BED — Related H3 AEBI variant.
- GE IS210AEDBH4AGD — AEDB Alternative Energy Dynamic Brake gate-driver PCB; different function from AEBI.
- GE IS210AEPSG1AFC — AEPS Alternative Energy Power Supply PCB; power-supply function rather than bridge interface.
Procurement Note
For a replacement, specify:
Assembly P/N: 104W5469P001
Functional Designation: AEBI — Alternative Energy Bridge Interface PCB
Do not approve a replacement merely because the supplier lists it as an “AEBI board” or “digital input expansion board.” The complete suffix and assembly number should match the installed hardware, followed by verification against the converter BOM and system configuration.
For used or refurbished inventory, request clear photographs of the GE identification label, complete board number, revision markings, connectors, and component side. That is particularly important because the AEBI family contains numerous visually similar variants.
