The GE IS200SPIDG1ABA is the specific assembly designation associated with the SPIDG1A PROFIBUS Master Gateway Terminal Board used in GE Mark VI/Mark VIe turbine-control systems. Its primary role is to provide the physical and identification interface for the associated IS220PPRFH PROFIBUS I/O pack. GE’s Mark VI architecture uses the I/O pack as the active electronics, while the SPIDG1A terminal board provides the corresponding mounting and connection interface.
The IS200SPIDG1ABA is therefore best treated as part of a PROFIBUS gateway assembly, rather than as an independent communication processor. The PROFIBUS connection is exposed through the I/O pack’s DB-9 connector, and the terminal board supplies the electronic identification associated with the installed hardware. Installation documentation also describes direct connection of the PPRF I/O pack to the SPID terminal board.
There is conflicting information in secondary listings that describes the same part as a “Simplex Function ID Board,” “Accessory ID Terminal Module,” or a PROFIBUS gateway terminal board. The most consistent technical description is the SPIDG1A PROFIBUS Master Gateway Terminal Board, with the IS220PPRFH as its associated I/O pack.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Model | IS200SPIDG1ABA |
| Functional Designation | SPIDG1A / SPID |
| Product Type | PROFIBUS Master Gateway Terminal Board |
| System | Mark VI / Mark VIe |
| Application | Turbine Control |
| Associated I/O Pack | IS220PPRFH |
| Communication | PROFIBUS-DP |
| PROFIBUS Connector | DB-9 on associated I/O pack |
| Board Function | Terminal interface + electronic identification |
| Mounting | Metal chassis |
| Operating Temperature | Approximately -25 to +50 °C reported for SPIDG1A |
| Power/Processing | Provided primarily by associated I/O pack |
| Standalone Controller | No |
| Product Status | Legacy Mark VI/Mark VIe hardware |
The -25 to +50 °C figure is reported for the SPIDG1A assembly; verify the actual cabinet/environmental requirement against the applicable GE manual for the installed configuration.
Main Features and Engineering Considerations
PROFIBUS Gateway Interface

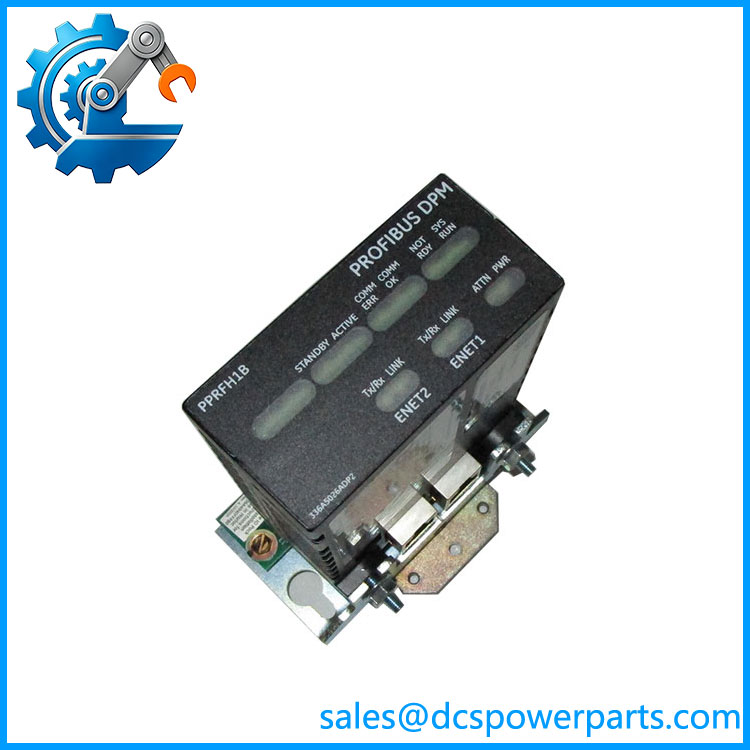

The IS200SPIDG1ABA supports a Mark VI/Mark VIe architecture in which an IS220PPRFH I/O pack is mounted directly to the terminal board. The assembly provides the physical connection required for PROFIBUS-based field communication.
IS200SPIDG1ABA
Electronic Identification
The board provides an electronic ID for the associated I/O pack. This is important during commissioning and diagnostics because the Mark VI/Mark VIe system can identify the hardware installed at the I/O position.
Passive/Interface Hardware
The terminal board itself should not be evaluated as though it were a conventional CPU or PROFIBUS master processor. The active processing and communication functions are associated with the installed I/O pack. The SPID board primarily provides the physical and identification interface.
Hot-Backup Considerations
Installation information for the describes mounting an I/O pack to the terminal board and supports configurations using a second SPID/PPRF combination for hot-backup arrangements.
Application Scenarios
The GE IS200SPIDG1ABA is encountered in:
- GE Mark VI turbine-control systems
- GE Mark VIe turbine-control systems
- PROFIBUS-DP fieldbus networks
- Turbine auxiliary control
- Distributed turbine I/O
- Generator and turbine plant equipment
- Legacy GE Speedtronic installations
- PROFIBUS gateway applications
Engineer’s Guide: Field Pitfalls
⚠️ Do not buy it as a standalone PROFIBUS controller.
The IS200SPIDG1ABA is a terminal/interface board associated with an IS220PPRFH I/O pack.
⚠️ Verify the I/O pack.
The physical board may be perfectly healthy while the associated PPRFH pack is defective. A complete replacement assessment should test the board and I/O pack as an assembly.
⚠️ Check the exact revision.
Secondary technical listings identify multiple revisions for this hardware family, and revision compatibility should be verified rather than assumed.
⚠️ Inspect the mechanical interface.
The I/O pack mounts directly to the terminal board. Bent connectors, damaged mounting hardware, contamination, or poor seating can produce communication faults.
⚠️ Check PROFIBUS wiring separately.
A healthy /PPRFH assembly will not correct incorrect PROFIBUS termination, addressing, shielding, cable polarity, or network configuration.
Frequently Asked Questions
It is the specific part-number assembly for the PROFIBUS Master Gateway Terminal Board used with GE Mark VI/Mark VIe turbine-control systems.
What I/O pack is used with it?
The associated I/O pack is IS220PPRFH.
Is a PROFIBUS communication processor?
Not by itself. The is the terminal/interface board; the associated I/O pack contains the active electronics.
What communication network does it support?
It is associated with PROFIBUS-DP gateway applications.
What is the main procurement risk?
The biggest risk is buying the terminal board without verifying the pack, hardware revision, PROFIBUS configuration, and Mark VI/Mark VIe system architecture.
What should be verified before purchasing?
- designation
- Associated I/O pack
- Mark VI or Mark VIe application
- Hardware revision
- PROFIBUS-DP configuration
- DB-9 connector condition
- Board-to-I/O-pack connector condition
- Electronic ID/diagnostic recognition
- Complete PROFIBUS communication test
Procurement note: For this part, I would request photographs of both the board and the associated pack if the item is being sold as an assembly. A “power-on tested” terminal board alone does not demonstrate PROFIBUS communication functionality.
