Description
GE IS200EPSMG1AEC EX2100 Exciter Power Supply Module
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Model | IS200EPSMG1AEC |
| Base Assembly | IS200EPSMG1A |
| Series | EX2100 Excitation Control |
| Functional Acronym | EPSM |
| Product Type | Exciter Power Supply Module |
| Group | EPSM Group 1 |
| Installation | EPBP backplane |
| Upstream Module | EPDM power distribution module |
| Documented Input Source | 125 VDC |
| Main DC Rails | +5 VDC, ±15 VDC, +24 VDC |
| Auxiliary Supply | Isolated contact-wetting supply is part of the EPSM architecture |
| System Application | EX2100 excitation control |
The base IS200EPSMG1A is documented as an EX2100 Exciter Power Supply Module mounted in the EPBP backplane. Its documented function is to receive 125 VDC from the EPDM and generate the DC voltages required by the EX2100 control system.
Product Introduction
The GE IS200EPSMG1AEC is an EX2100 Exciter Power Supply Module (EPSM) used to provide regulated power to the excitation-control electronics. The EPSM Group 1 architecture is associated with the excitation-control section of the system rather than being a generic cabinet power supply.
Within the documented architecture, the EPDM supplies the EPSM with 125 VDC. The EPSM then generates the low-voltage DC rails used by the controller electronics and supplies power to selected external excitation modules. That makes the board an important part of the control-power chain when troubleshooting controller resets, missing logic power, or multiple downstream module faults.

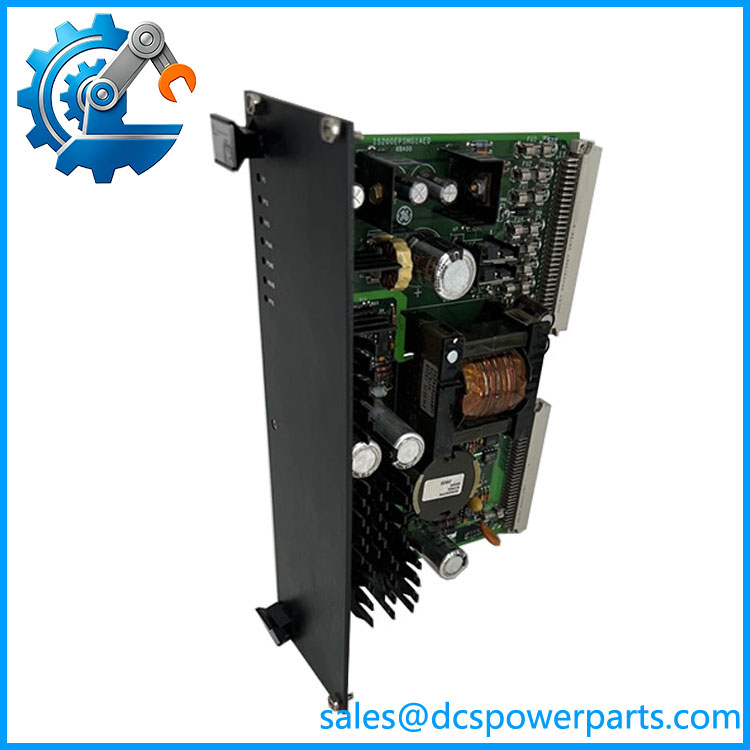

IS200EPSMG1AED
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A failed EPSM can create symptoms that look like controller or I/O failures. When several boards lose power simultaneously, replacing individual control boards first can waste considerable troubleshooting time. The EPSM should be evaluated together with the upstream EPDM supply and the loads connected to its output rails.
Typical Applications
- GE generator excitation systems
- Turbine-generator excitation control cabinets
- Legacy power-generation control system maintenance
- Industrial automation spare-parts and retrofit programs
Technical Pitfalls
1. Confirm the complete part number.
Do not order only against “IS200EPSMG1A.” The supplied unit is IS200EPSMG1AEC, and the revision suffix should be matched against the installed system documentation and board markings.
2. Do not confuse EPSM and EPDM.
The IS200EPDMG1B performs power-distribution functions, while the EPSM converts the supplied DC power into the regulated rails required by the electronics.
3. Check the upstream 125 VDC supply.
The EPSM depends on the EPDM power-distribution path. An abnormal upstream supply can produce symptoms that resemble an EPSM failure.
4. Check downstream loading.
The EPSM does not only feed the controller electronics. Documented descriptions also identify 24 VDC distribution to selected external modules and an isolated supply associated with terminal-board contact wetting. A downstream fault can therefore affect the power-supply module itself.
5. Do not assume every EPSM revision is interchangeable.
The base IS200EPSMG1A is specifically described as an A-version board with compatibility limitations. That is a strong reason to verify the actual rack configuration before treating another revision as a drop-in replacement.
6. Treat online dimensions and electrical ratings cautiously.
Public secondary listings provide conflicting dimensions, weights, output descriptions, and even incorrect product classifications for IS200EPSMG1AEC. Those values should not be used for engineering acceptance without the applicable GE documentation or a verified board-level inspection.
Related Products
- GE IS200EPSMG1A — Base EPSM Group 1 assembly; useful as the primary family reference, but revision compatibility must be confirmed.
- GE IS200EPSMG2A — EPSM Group 2 power-supply module associated with the regulator-control section rather than the Group 1 excitation-control application.
- GE IS200EPDMG1B — Exciter Power Distribution Module supplying the EPSM input power.
- GE IS200ERBPG1A — Exciter Regulator Backplane.
- GE IS200ERIOH1A — Exciter Regulator I/O board.
- GE IS200EROCH1A — Exciter Regulator Options Card.
- GE IS200ERDDH1A — Exciter Regulator Dynamics Discharge board.
- GE IS200ERGTH1A — Exciter Regulator Ground Detector board.
- GE IS200ERRBG1A — Regulator Redundant Backplane supporting EPSM and related regulator hardware.
Procurement Note
For a replacement IS200EPSMG1AEC, specify the , not simply “EPSM” or “IS200EPSMG1A.” Before installation, compare the existing board revision, EPBP position, EPDM supply arrangement, controller configuration, and downstream power loads. For an operating generator, the safest replacement decision is based on the installed configuration rather than on physical similarity alone.
