Description

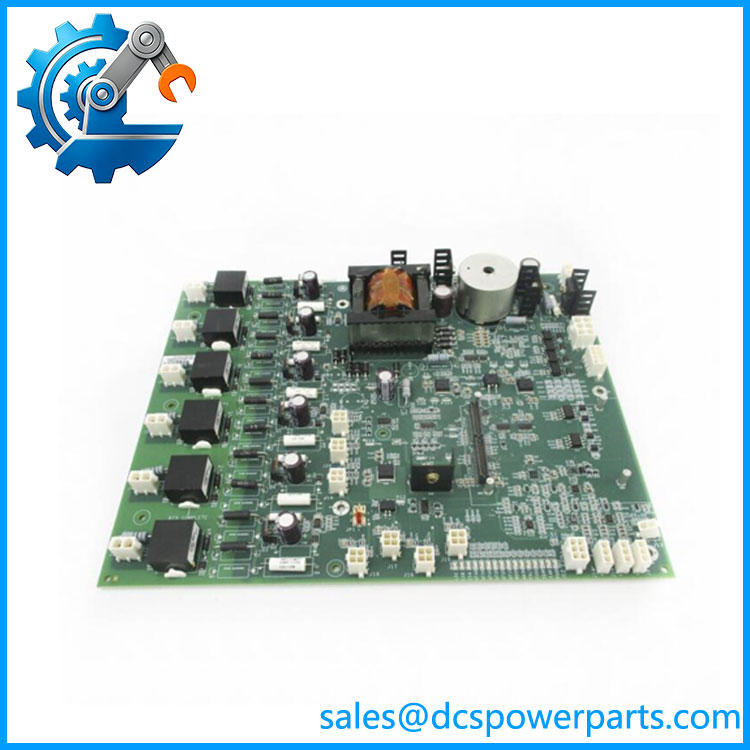

GE IS200EBRGH1A
Product Introduction
The GE IS200EBRGH1A is an Exciter Bridge Interface Board used in GE’s EX2100e excitation-control architecture. The EBRG board provides the interface between the excitation controller and the power-conversion bridge, handling the signal exchange required for controlled thyristor excitation. It connects into the EX2100e high-speed serial-link architecture through the HSLA interface and works with the power conversion module (PCM) and associated excitation hardware.
The GE IS200EBRGH1A is specifically associated with thyristor bridge control rather than general-purpose PLC I/O. Available technical records identify inputs associated with thermal sensing and feedback, while outputs include SCR gate signals and cooling-related functions. One EBRG is specified per PCM. The board is also associated with protective functions for the SCR power bridge, making correct signal interfacing important to generator excitation operation.
The GE IS200EBRGH1A belongs to the H hardware group, identified in available documentation as conformally coated. This is useful for installations where the excitation cabinet requires enhanced environmental protection of the PCB assembly. The board is associated with GE EX2100e generator excitation systems and can be used in simplex or redundant control architectures depending on the overall system configuration. Replacement work should therefore be based on the complete excitation-system design, not only physical board compatibility.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS200EBRGH1A |
| Manufacturer | General Electric |
| Product Type | Exciter Bridge Interface Board |
| Functional Acronym | EBRG |
| Product Family | EX2100e Excitation Control |
| Board Group | H |
| Conformal Coating | Yes |
| Primary Function | Excitation bridge interface |
| Controller Interface | High-speed serial link via HSLA |
| Power Source | 125 VDC from EDIS |
| EBRG Boards per PCM | 1 |
| Power Bridge Interface | SCR / thyristor bridge control |
| Supported Thyristor Sizes | 42 mm, 52 mm, 77 mm |
| Input Functions | Thermal sensing and feedback |
| Output Functions | SCR gate signals and cooling-related interface |
| AC System Frequency | 50/60 Hz nominal |
| Operating Temperature | -40 to +85°C reported in technical records |
| Humidity | 5–95% |
| Associated Manual | GEI-100776 |
| Series Manual | GEH-6781L |
| Datasheet | GEA-S1244 |
The temperature information requires some caution: different secondary listings also quote a narrower 0–40°C ambient range as an operating specification. For an engineering database, I would retain the documented -40 to +85°C board-level limit separately from any cabinet/system ambient specification rather than presenting them as equivalent values.
IS200EBRGH1A
Main Features and Engineering Considerations
Exciter Bridge Interface
The central role of the EBRG is to connect the EX2100e control architecture with the SCR power bridge. It is therefore part of the excitation firing and feedback path, not a conventional signal-conditioning or remote-I/O board.
SCR Gate Interface
The board provides the interface associated with SCR gate signals and receives bridge-related feedback. This makes the board particularly sensitive to correct wiring, board revision, and associated power-bridge configuration. A replacement should be tested as part of the complete excitation system rather than as an isolated PCB.
HSLA Communication
The EBRG interfaces with the EX2100e high-speed serial-link architecture through an HSLA board. Communication faults can therefore involve the EBRG, HSLA hardware, cabling, controller configuration, or the associated PCM rather than the EBRG alone.
Conformal-Coated H Version
The H group variation is identified as conformal coated. This is an important procurement detail because visually similar GE IS200 boards may have different environmental or hardware configurations. Do not substitute another EBRG group merely because its basic function appears similar.
Power-Bridge Compatibility
Available technical records associate the board with 42 mm, 52 mm, and 77 mm thyristor systems. Other equipment records describe specific bridge arrangements, including 100 mm SCR applications, so the actual installed PCM and power-bridge configuration should be checked against the cabinet documentation before approving a replacement.
Procurement Perspective
For a replacement GE IS200EBRGH1A, record the complete board number, revision, conformal-coating designation, associated PCM, HSLA interface, and SCR bridge configuration. A power-up test alone is not adequate acceptance testing for a board involved in excitation bridge control.
Application Scenarios
- GE EX2100e excitation-control systems
- Synchronous generator excitation
- Gas-turbine generator excitation systems
- Steam-turbine generator excitation systems
- Thyristor/SCR excitation bridges
- Generator voltage regulation systems
- Exciter power-conversion modules
- Power-station excitation cabinets
Engineer’s Guide: Field Pitfalls
1. Do not classify as generic I/O.
It is an excitation bridge interface board specifically associated with the EX2100e system.
2. Verify the HSLA interface.
The EBRG relies on the high-speed serial-link architecture. Check the HSLA board, cabling, and controller configuration during troubleshooting.
3. Check the 125 VDC source.
Technical records identify 125 VDC from EDIS as the board power source. Do not substitute a generic low-voltage PLC supply arrangement.
4. Verify the PCM and SCR bridge.
One EBRG is associated with each PCM. The bridge configuration must match the installed excitation system.
5. Preserve the H configuration.
The H group is identified as conformally coated. Confirm this marking when purchasing a replacement.
6. Check thermal feedback wiring.
The board handles thermal sensing and feedback associated with the bridge. Incorrect feedback wiring can produce faults even when the board itself is functional.
7. Do not rely on reseller temperature figures.
Board-level limits and cabinet ambient specifications are not necessarily the same. Use the applicable GE system documentation for final installation limits.
Frequently Asked Questions
What is GE ?
It is an Exciter Bridge Interface Board (EBRG) used in GE’s EX2100e excitation-control system.
What does EBRG stand for?
EBRG is the functional abbreviation for Exciter Bridge Interface.
Is a PLC I/O module?
No. It is a specialized excitation-system interface board used to connect control electronics with the thyristor power bridge.
What power supply does it use?
Available technical records specify 125 VDC from EDIS.
What is the H designation?
The H group variation is identified as conformal coated.
How many EBRG boards are used per PCM?
The available technical documentation specifies one EBRG per PCM.
Which thyristor bridge sizes are associated with the board?
Available records identify 42 mm, 52 mm, and 77 mm thyristor systems. Specific plant configurations should still be checked against the excitation documentation.
Procurement Note
When sourcing , verify the complete board marking, revision, H/conformal-coating configuration, HSLA interface, EDIS power source, PCM type, and installed SCR bridge. Because this board sits directly in the generator excitation power-control path, acceptance should include system-level communication, feedback, diagnostic, and firing-interface checks rather than simply confirming that the PCB powers up.
