Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | IS200AEADH4A |
| GE Part Number | 109W3660P001 |
| Manufacturer | General Electric (GE) |
| Product Type | AEAD Control Board / Power Converter Card |
| System Platform | GE Mark VI / Mark VIe |
| Application | Turbine control, excitation, analog interface |
| Board Function | Analog signal processing and interface |
| Installation | GE control rack assembly |
| Communication | Backplane interface |
| Power Supply | Rack supplied DC power |
| Hardware Revision | H4A |
| Typical Use | Gas turbine and generator control systems |
| Diagnostics | Controller-based fault monitoring |
| Mounting | Rack slot installation |
| Environment | Industrial power generation cabinets |
Application Scenarios & Pain Points
Turbine control troubleshooting often becomes difficult because one hardware fault can trigger multiple alarms across different subsystems. Engineers may see excitation warnings, analog input failures, or controller communication messages before identifying the actual board problem.
Typical applications:
- Gas Turbine Plants: Used within GE Mark VI control cabinets for turbine monitoring, analog signal handling, and related control functions.
- Power Generation Facilities: Supports generator control and excitation-related assemblies where accurate feedback signals are required.
- Combined Cycle Plants: Applied in turbine packages where multiple control subsystems depend on stable I/O processing.
- Industrial Cogeneration Systems: Helps maintain communication between field measurements and turbine control hardware.
Field note: A generating station experienced intermittent turbine control alarms during startup sequences. The field sensors checked correctly, but diagnostics pointed toward an aging AEAD board. After replacing the IS200AEADH4A and verifying rack connections, the control system returned to normal operation.

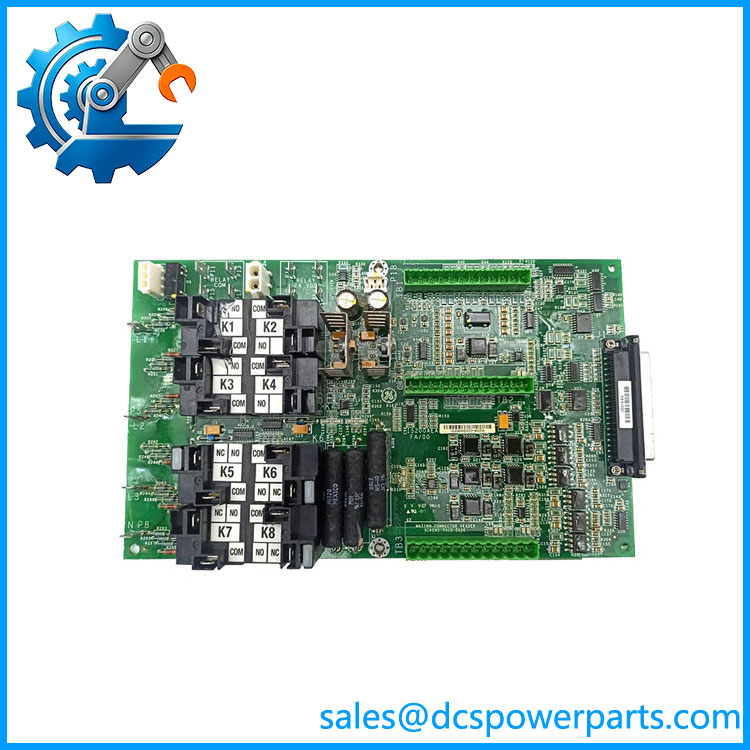

IS200AEADH4A
Related Products
- GE IS200AEADH3A 109W3970P001 — Related AEAD board variant with different hardware configuration. Used where the system documentation specifies H3A revision compatibility.
- GE IS200AEADH1A 104W7776P001 — Earlier AEAD board version used in GE control applications requiring matching hardware replacement.
- GE IS200AEAAH1A — Related analog interface board used within GE Mark VI control systems.
- GE IS200AEBMG1A — Complementary Mark VI interface board used for different control signal applications.
- GE IS200DSPXH1A — Digital signal processing board used in Mark VI control platforms for controller processing tasks.
- GE IS200CABPG1BAA — Control rack backplane assembly supporting GE Mark VI boards.
- GE IS200TBAIH1C — Analog input terminal board used for field signal connection with Mark VI systems.
- GE IS200TBCIH2B — Contact input terminal board for discrete field signals.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Confusing AEAD Board Revisions
GE Mark VI boards can share similar part numbers while having different hardware revisions and application roles.
How to avoid: Match both the IS200 model number and the 109W3660P001 reference before replacement.
⚠️ Incorrect Rack Slot Installation
A replacement board may power up but fail communication if installed in the wrong rack position.
How to avoid: Record the original rack location, cable connections, and controller configuration before removing the board.
⚠️ Ignoring Connector Condition
Many intermittent faults come from aging connectors rather than board electronics.
How to avoid: Inspect ribbon cables, terminal connections, and backplane pins for contamination or oxidation.
Frequently Asked Questions (FAQ)
What is the main function of the GE IS200AEADH4A 109W3660P001?
The module is an AEAD series board used in GE Mark VI turbine control applications for analog interface and power conversion-related functions.
Is the IS200AEADH4A compatible with all GE Mark VI systems?
No. Compatibility depends on the turbine control configuration, rack design, firmware environment, and original board revision.
Can I replace an IS200AEADH3A with an IS200AEADH4A?
Not automatically. Although both belong to the AEAD family, hardware revisions may have different functions or configuration requirements.
What should be checked before installing a replacement AEAD board?
Recommended checks:
- Existing board part number
- Rack slot position
- Terminal connections
- Controller firmware compatibility
- Configuration backup
- Alarm history
Why does the turbine controller show faults after replacing the board?
Possible causes include:
- Incorrect board revision
- Wrong rack location
- Loose cable connection
- Configuration mismatch
- Damaged terminal hardware
Is a refurbished IS200AEADH4A suitable for turbine control service?
A properly tested refurbished board can be suitable when it passes functional testing, visual inspection, connector checks, and system-level verification.
How should this GE board be stored as a spare?
Store the board in anti-static packaging inside a dry cabinet. Avoid moisture, dust, vibration, and conditions that may affect circuit contacts during long-term storage.
