GE Fanuc IC693MDL645 | New Surplus Series 90-30 Input

Product Overview

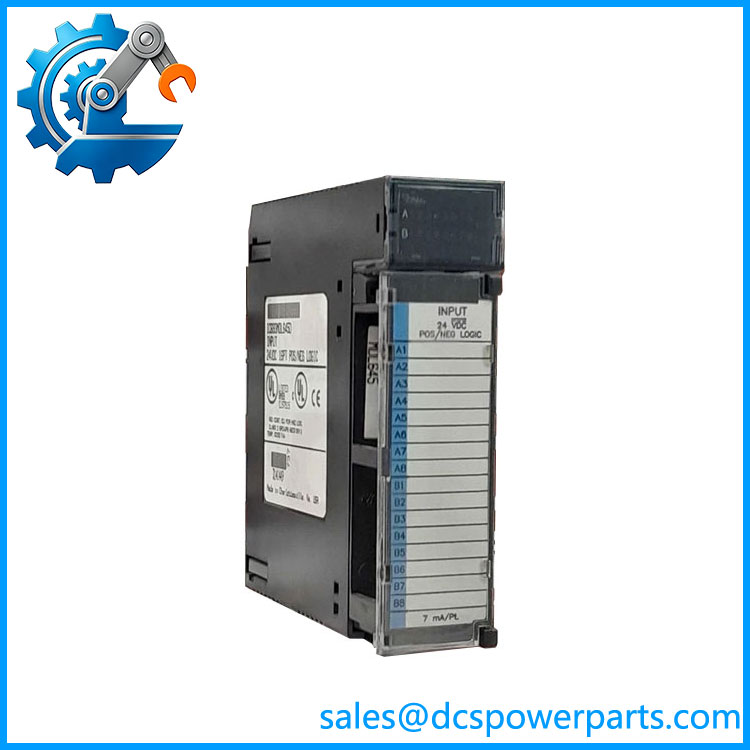

The GE Fanuc IC693MDL645 is a 16-point discrete input module for the Series 90-30 PLC platform. Designed for nominal 24 VDC field signals, it accepts an input range from 0 to +30 VDC and can operate with either positive-logic or negative-logic field wiring. All 16 channels belong to one input group with a common terminal, while the field side is isolated from the PLC logic side by 1500 V. The module draws approximately 7 mA per input at rated voltage and provides a typical 7 ms response time for both ON and OFF transitions.

For GE Fanuc IC693MDL645, the single-group wiring arrangement is an important detail that can easily be overlooked when replacing an older Series 90-30 input card. The module is intended for devices such as pushbuttons, limit switches, proximity switches, auxiliary contacts, and similar discrete field devices. Sixteen front-panel LEDs provide individual channel status indication, making basic field-signal troubleshooting considerably easier. It occupies one I/O slot and is designed for Series 90-30 5-slot or 10-slot baseplates.

The GE Fanuc IC693MDL645 also uses both the 5 VDC backplane supply and an isolated 24 VDC supply path. Published specifications list approximately 80 mA from the 5 V bus with all inputs on and 125 mA from the isolated 24 VDC bus or user-supplied power.

This module is a practical maintenance part for established Series 90-30 installations. It is an obsolete platform component, so revision control matters: available hardware revisions extend through later lettered versions. When purchasing a replacement, match the complete catalog number and revision where possible rather than treating every IC693MDL645 as automatically identical.

Product Introduction

A 24 VDC input card can look interchangeable until the field wiring is checked. IC693MDL645 provides 16 positive/negative-logic inputs, accepts 0–30 VDC, and uses one common input group with 1500 V field-to-logic isolation.

For a GE Series 90-30 PLC input module replacement, check the common-terminal arrangement, input thresholds, module revision, and baseplate before installation. If faster response is required, IC693MDL646 is the more relevant comparison.

Key Technical Specifications

These values are supported by the Series 90-30 hardware manual and cross-reference documentation.

IC693MDL645

Related Products

• IC693MDL634 — 8-point 24 VDC positive/negative-logic input module. It uses the same general input concept but provides half the channel count of .
• IC693MDL646 — 16-point 24 VDC positive/negative-logic input module with a 1 ms-class fast response. It is the more relevant alternative where input response time is important.
• IC693MDL241 — 16-point 24 VAC/VDC positive/negative-logic input module. It is useful where the application requires both AC and DC input capability.
• IC693MDL632 — 8-point 125 VDC positive/negative-logic input module. It serves higher-voltage DC applications and is not a direct 24 VDC substitute.
• IC693MDL655 — 32-point 24 VDC positive/negative-logic input module. It provides higher point density than , with a different channel architecture.
• IC693MDL230 — 8-point isolated 120 VAC input module for Series 90-30 systems. It is relevant when the field signal is AC rather than 24 VDC.
• IC693MDL240 — 16-point 120 VAC input module. It matches the 16-point density but uses a completely different input voltage class.
• Series 90-30 5-slot Baseplate — Compatible rack architecture for . The module can be installed in an available I/O slot of a compatible 5-slot baseplate.
• Series 90-30 10-slot Baseplate — Larger compatible baseplate option. The input module occupies one I/O slot.

Frequently Asked Questions

What is GE Fanuc used for?

The is a 16-point discrete DC input module for GE Fanuc Series 90-30 PLCs.

It interfaces field devices such as:

• Pushbuttons
• Limit switches
• Proximity switches
• Auxiliary contacts
• Other 24 VDC discrete sensors

The PLC receives the resulting ON/OFF states through the Series 90-30 input architecture.

Does support both positive and negative logic?

Yes. It is specifically designated as a positive/negative logic input module.

The practical limitation is the common arrangement: all 16 points form one input group with a single common terminal. Therefore, the module should not be treated as 16 completely independent isolated inputs.

What voltage does require?

The nominal input voltage is 24 VDC, while the specified input range is 0 to +30 VDC.

The threshold specifications are:

• ON: 11.5–30 VDC
• OFF: 0–5 VDC
• ON current: minimum 3.2 mA
• OFF current: maximum 1.1 mA

A field signal sitting in the transition region should not be considered a valid logic state without checking the actual wiring and signal source.

Can I replace with IC693MDL646?

Possibly, but do not treat it as an automatic one-for-one replacement.

Both modules provide 16-point, 24 VDC positive/negative-logic inputs, but IC693MDL646 is designed for much faster input response.

For a legacy control system, confirm:

1. PLC CPU compatibility.
2. Existing application timing assumptions.
3. Input wiring.
4. Common-terminal arrangement.
5. Hardware revision.
6. Required response time.

If the original application was specifically designed around the 7 ms response characteristics of the MDL645, changing the module should be reviewed rather than done purely on catalog-number similarity.

Is isolated?

Yes. The documented isolation is 1500 V between the field side and logic side.

This does not mean that each of the 16 input points is individually isolated. The channels share one common input group.

Does have input diagnostics?

The module provides individual LED status indicators for the 16 input points. These LEDs are useful for determining whether the expected field signal has reached the input channel.

They should not, however, be treated as a substitute for measuring the actual field voltage. A lit LED confirms the module sees a valid input condition; it does not prove that the upstream field device, wiring, and signal reference are healthy under all operating conditions.

Will replacing erase my PLC logic?

No. The input module itself does not store the complete Series 90-30 application logic.

Still, before replacing an installed card, document:

• I/O address assignment
• Field wiring
• Common-terminal connection
• Input device type
• CPU configuration
• Existing diagnostics
• Module revision

The replacement should reproduce the original field interface rather than simply fit mechanically into the rack.

Can I hot-swap ?

Do not assume that it can be removed from an energized Series 90-30 rack.

The Series 90-30 architecture and installed baseplate determine the appropriate maintenance procedure. Before removing the module, isolate power according to the plant procedure and confirm that the connected field devices cannot create an unintended machine or process transition.

How should a New Surplus be tested?

For an obsolete Series 90-30 input module, I would test every channel rather than relying on a power-up check.

Recommended acceptance test:

1. Confirm the exact catalog number.
2. Record the module revision letter.
3. Inspect the connector and terminal block.
4. Install it in a compatible Series 90-30 5-slot or 10-slot baseplate.
5. Verify normal backplane recognition.
6. Apply controlled 24 VDC signals to all 16 inputs.
7. Verify each input LED.
8. Check the ON threshold.
9. Check the OFF threshold.
10. Verify the 7 ms-class response behavior.
11. Confirm the PLC input table reflects each channel correctly.
12. Remove the field signal and verify every point returns to OFF.
13. Record the test results and hardware revision.

Procurement note: is an established Series 90-30 component, so revision matching is worth taking seriously. The base model alone does not tell the complete story when maintaining an older PLC installation.
